Panasonic Heat Pump K-Generation Hydrobox Air/Water 3-9kW 230V

Description

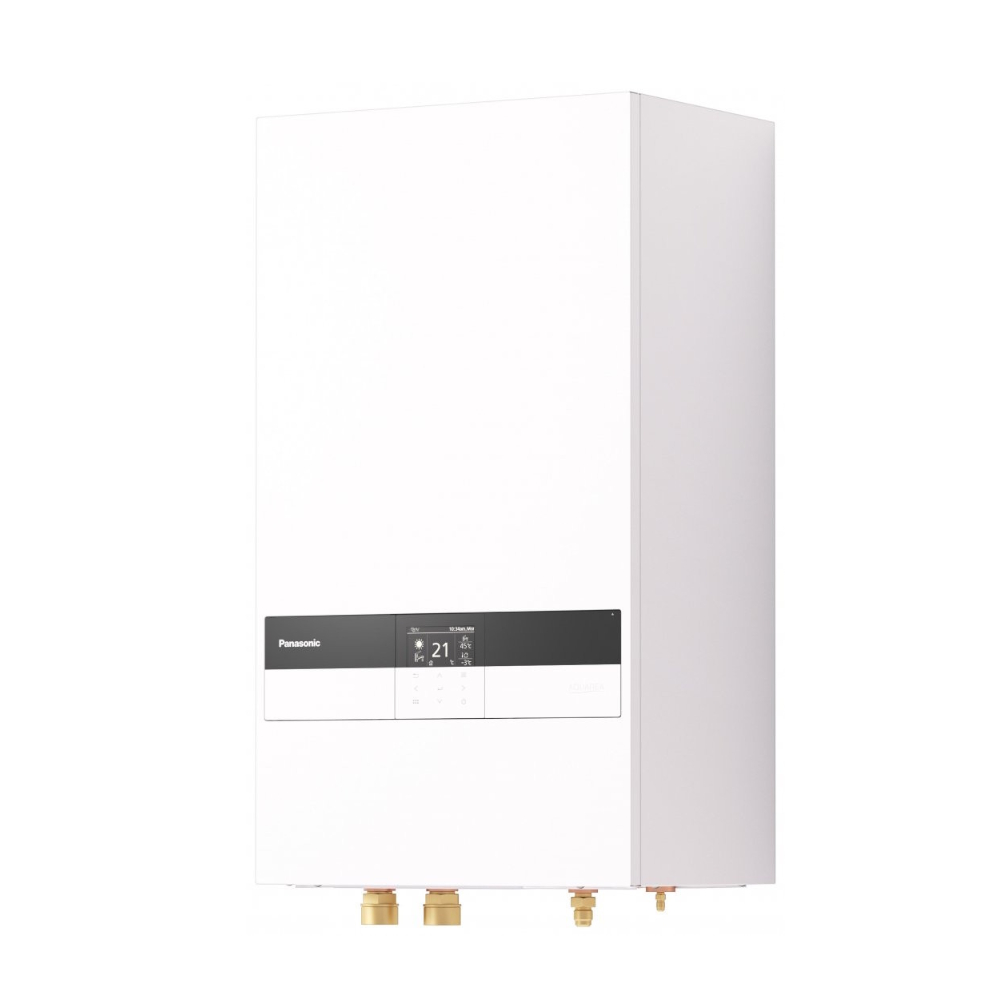

Panasonic Heat Pump air/water split indoor unit for K-generation.

Technical Information

• Model/Version: Indoor unit
• Heating capacity at 7/35°C (EN 14511): 3.2 kW
• Connection voltage: 230 V
• Connection for solar power: Yes
• COP at 7/35°C (EN 14511): 5.33
• Data transfer via USB: No
• Electric heating element power: 3 - 3 kW
• Energy efficiency class space heating (811/2013/EU): A++
• Energy efficiency class water heating (811/2013/EU): A+++
• Energy efficiency water heating (Nwh): 128 %
• External control required: No
• Remote control possible: Yes
• Pre-filled refrigerant: 0.9 kg
• Global warming potential (GWP): 675
• Integrated cooling: Yes
• Capacity profile: L
• Cooling capacity at 35/18°C (EN 14511): 3.2 - 3.2 kW
• Cooling capacity at 35/7°C (EN 14511): 3.2 - 3.2 kW
• Suitable for active cooling: Yes
• Suitable for central heating: Yes
• Suitable for pool heating: No
• Suitable for domestic hot water: Yes
• Sound pressure level indoor unit at 0/35°C at 1m distance (EN12102): 28 dB
• Max. pipe length: 30 m
• With electric heating element: Yes
• With pool control: No
• Modulating compressor: Yes
• Pump type (system pump): Energy-saving
• Control for controlling the accumulator tank: Yes
• Control for controlling the central heating boiler: Yes
• Room temperature control: Yes
• Fuse (slow): 16 A
• SEER low-temperature application (35°C) in colder conditions: 4 %
• SEER low-temperature application (35°C) in normal conditions: 5.07 %
• SEER low-temperature application (35°C) in warmer conditions: 6.2 %
• SEER medium-temperature application (55°C) in colder conditions: 2.83 %
• SEER medium-temperature application (55°C) in normal conditions: 3.47 %
• SEER medium-temperature application (55°C) in warmer conditions: 4.2 %
• Stepless control of electric heating element: No
• Control method/Processing method: OpenTherm
• Refrigerant type: R32
• Control type: On/Off
• Heating capacity at -7/35°C (EN 14511): 3.3 kW

Specifications

• Indoor unit width: 500 mm
• Indoor unit depth: 348 mm
• Indoor unit height: 892 mm
• Food Contact Material: No
• REACH: No
