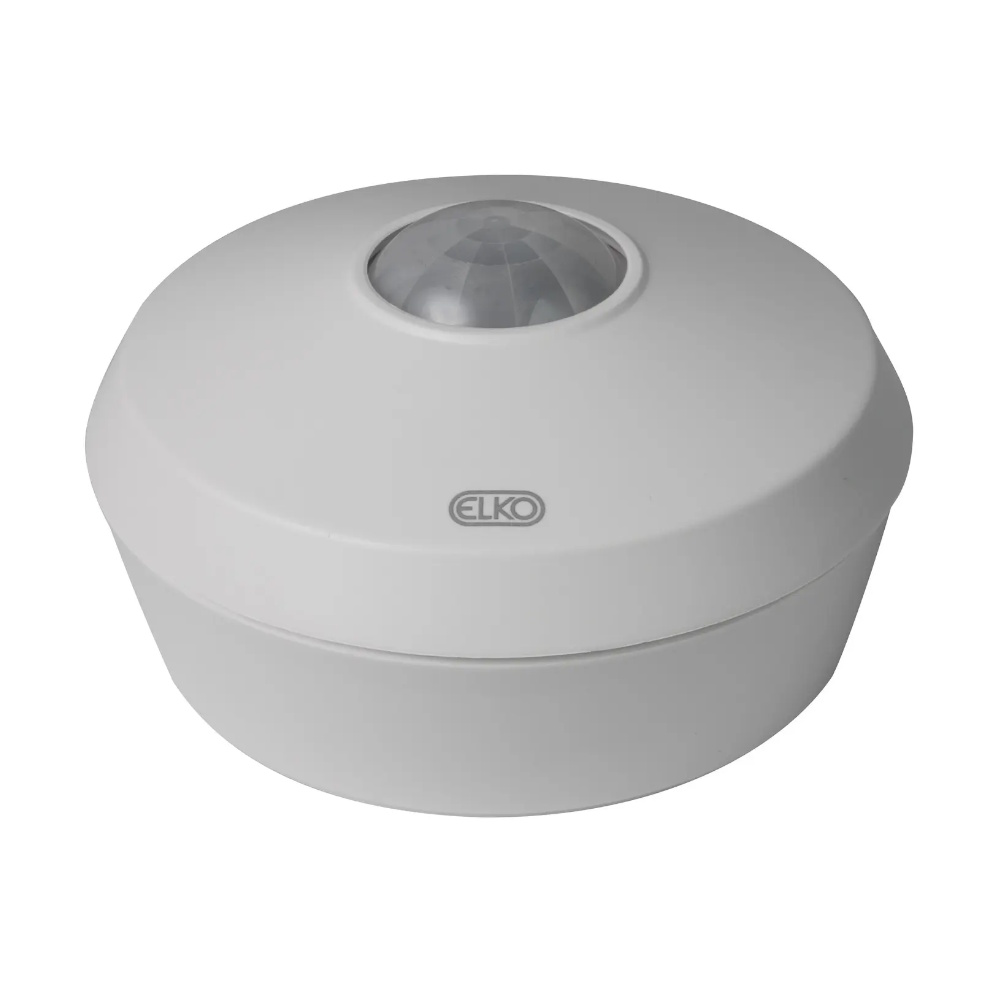

Motion Detector 360° Ceiling 9A 2000W 230V IP44 Elko

Description

PIR, motion detector for indoor and outdoor installation. Detects heat sources that move within the monitoring area and can turn on a lamp for a period of time. Restarts every time a movement is detected. 10A switching function, IP44 with frame for outdoor installation, IP40 indoor installation with spring clamp. Can be activated via an external push button or with pulses to the stairwell switch.

Technical Information

• Installation location: Indoor
• Sensor type: PIR
• Mains type: AC
• Function: Switch
• Mains frequency: 50/60 Hz
• Input current: 9 A
• Starting power: 2000 W
• Number of modules: 1 module
• Mounting height: 2.5 m
• Load: Incandescent lamp, 2000 W
• LEDi lamp, 200 W
• Duty cycle: 30 min
• [Sd] detection range: 7 m
• Starting time: 1 s
• Number of zones: 1
• Horizontal detection angle: 0…360 °
• Light sensitivity: 0…2000 lux
• IP protection class: IP44
• Ambient temperature during operation: −20…45 °C

Specifications

• Material: Thermoplastic
• Surface finish: Glossy
• Surface treatment: Untreated
• Installation depth: 40 mm
• Diameter: 115 mm
• Depth: 70 mm
