Electrical Installationsmaterial El Elcentraler

Main Center 25A (311-2) Malmbergs 1990503

Buy Main switchboard is made of saltwater-resistant aluminum, 17kA short-circuit strength, stackable and lockable, complies with EN 60 439-4.

Main Center 25A (311-2) Malmbergs 1990503

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

Main Center 25A (311-2) Malmbergs 1990503

Buy Main switchboard is made of saltwater-resistant aluminum, 17kA short-circuit strength, stackable and lockable, complies with EN 60 439-4.

Description

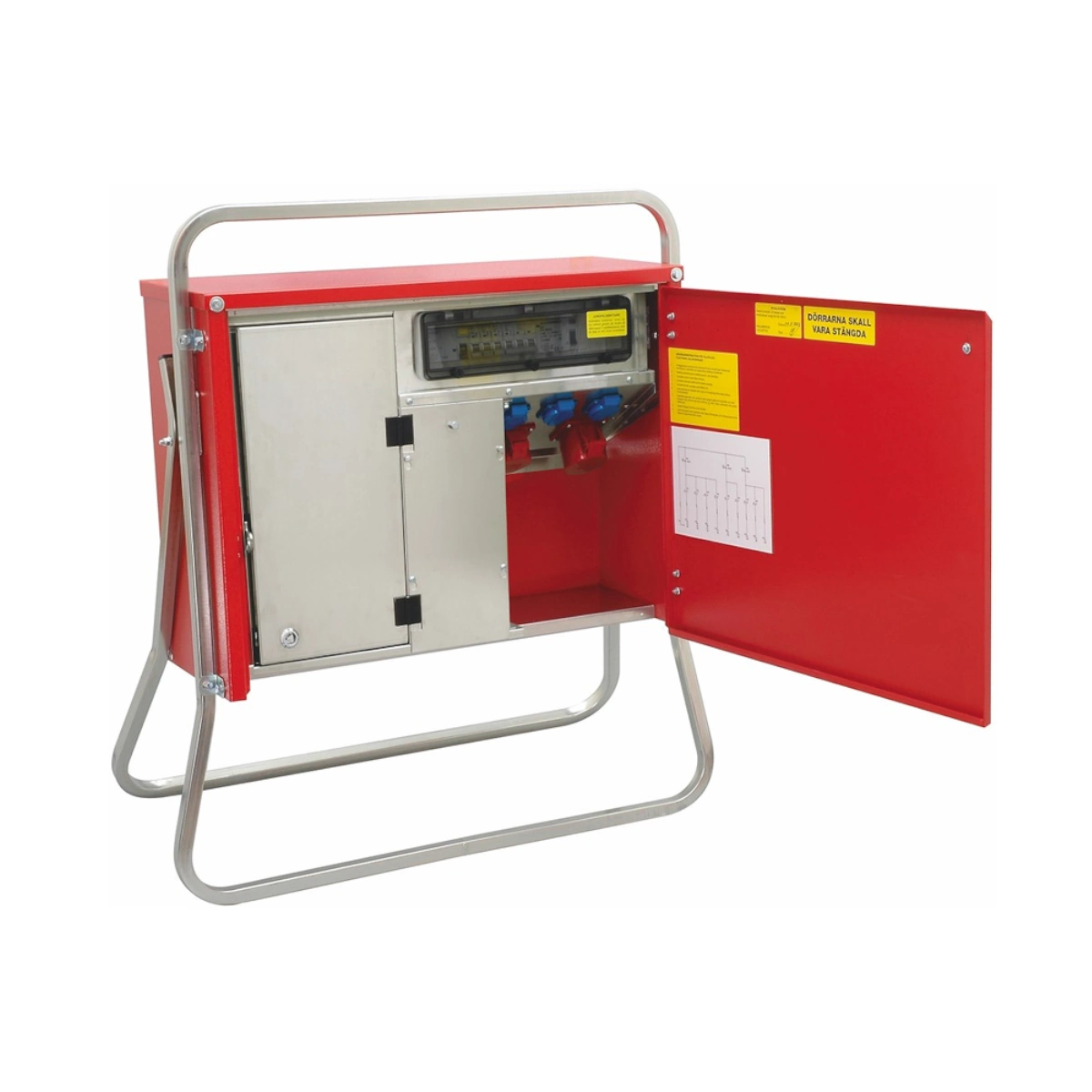

This robust electrical distribution board is made of 1.5mm powder-coated, saltwater-resistant aluminium. Due to a unique special alloy, the board has a strength equivalent to 2.5mm aluminium. The board is equipped with wall brackets, foldable legs, a stackable design, and lockable doors. The product is designed and certified according to EN 60 439-4 and SS4364000 Edition 2, is CE-marked, and has a short-circuit rating of Icf = 17 kA.

Fixed connection to terminal block, Cu-conductor 2.5-50 mm². Al-conductor 6-50 mm². Incoming main fuse DII 25A.

  • 1x CEE socket 3+N+PE (unprotected), 32A
  • 1x CEE socket 3+N+PE, 16A
  • 3x Schuko sockets, 16A
  • 1x Miniature circuit breaker (MCB) 3-pole, 16A
  • 3x Miniature circuit breakers (MCB) 1-pole, 16A
  • 1x Residual Current Device (RCD) 30mA (for 16A/Schuko sockets), 40A
  • 1x Residual Current Device (RCD) 30mA (for 32A socket), 40A

Specifications

  • Enclosure class: IP44
  • Dimensions (WxHxD): 800x900x280 mm (including stand)
  • Rated current: 25A
