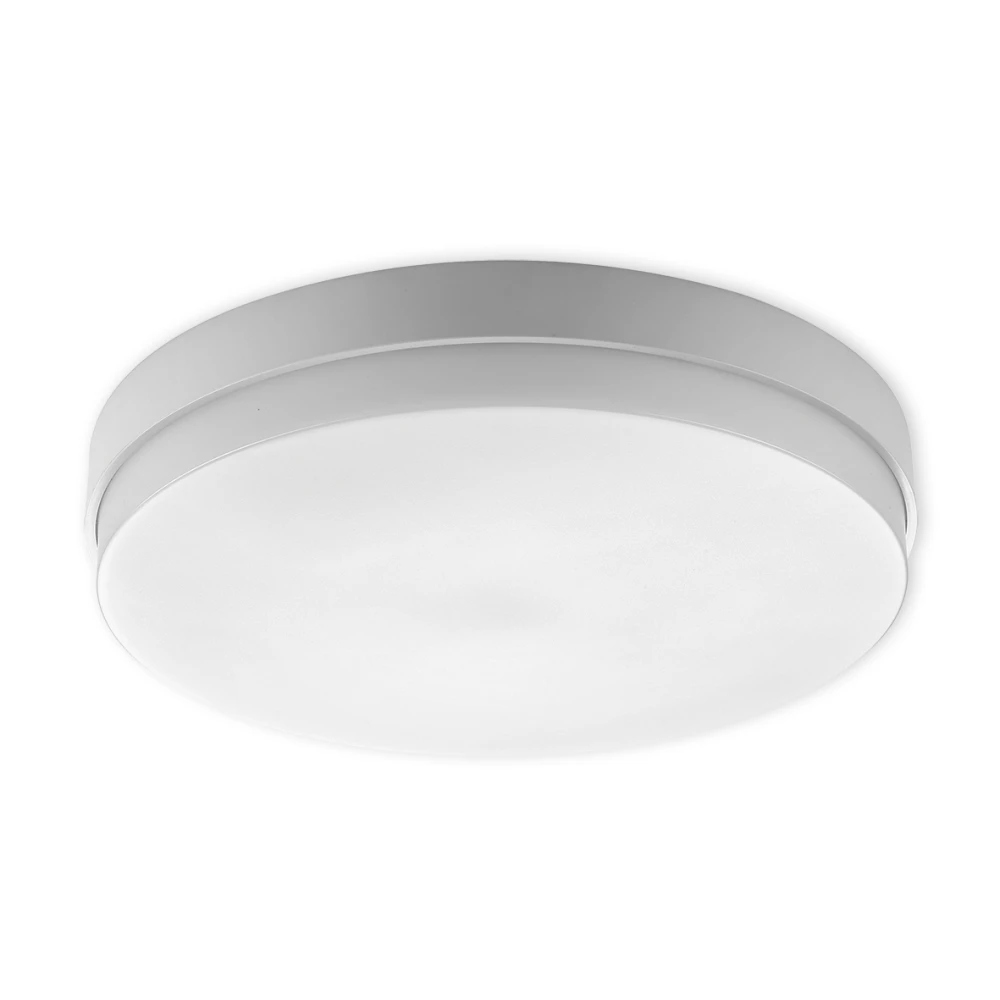

Lumo LED 830/840 23W 220-240V 2300lm IP44 White Legrand

Description

The Lumo series from Ensto is a stylish luminaire with many possibilities both in terms of technology and appearance. Lumo offers the option of both color temperature and lumens on site and both can be easily adjusted and changed later.

Technical Information

• Nominal luminous flux: 2300lm
• Ingress protection class (IP): IP44
• Impact resistance (IK): IK07
• Protection class (IEC 61140): II
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Bluetooth controlled: No
• No dimmer function: Yes
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• Dimming DALI: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Sine Wave Dimming (Sine Wave Reduction): No
• Manufacturer-specific dimming: No
• Colour Rendering Index (CRI/Ra): 80-89
• Suitable for recessed/recessed mounting: No
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp mounting: No
• Suitable for ceiling mounting: Yes
• Suitable for surface mounting: Yes
• Suitable number of light sources: 1
• Conductor cross-section: 1.5 mm²
• Light distributor/diffuser: Diffuser lens/optics/panel
• Light distribution: Symmetrical
• Light source: LED (replaceable)
• Light distribution angle: Open beam
• Luminous efficiency: 100 lm/W
• Light outlet: Direct
• Rated voltage: 220-240V
• Max. system power: 23 W
• With light sensor: No
• With air hole: No
• With motion sensor: No
• Nominal service life L70/B50 at 25 °C: 100000 h
• Nominal ambient temperature according to IEC 62722-2-1: -25 - 50 °C
• Dimming Zigbee: No
• Dimmable: No
• Driver: LED driver (constant current)
• Driver included: Yes
• Power factor: 0.9
• Color fastness (McAdam ellipse): SDCM3
• Overlay with insulation: No
• Grid design: None
• Voltage type: AC
• Connection type: Push-in terminal (quick terminal)
• Type of wiring: Suitable for through wiring

Specifications

• Light color: White
• Color housing/housing/frame: White
• Material housing/housing/frame: Plastic
• Material dome/cover: Plastic (opal)
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Outer diameter: 335mm
• Length: 335mm
• Height/depth: 63mm
• Width: 335mm
