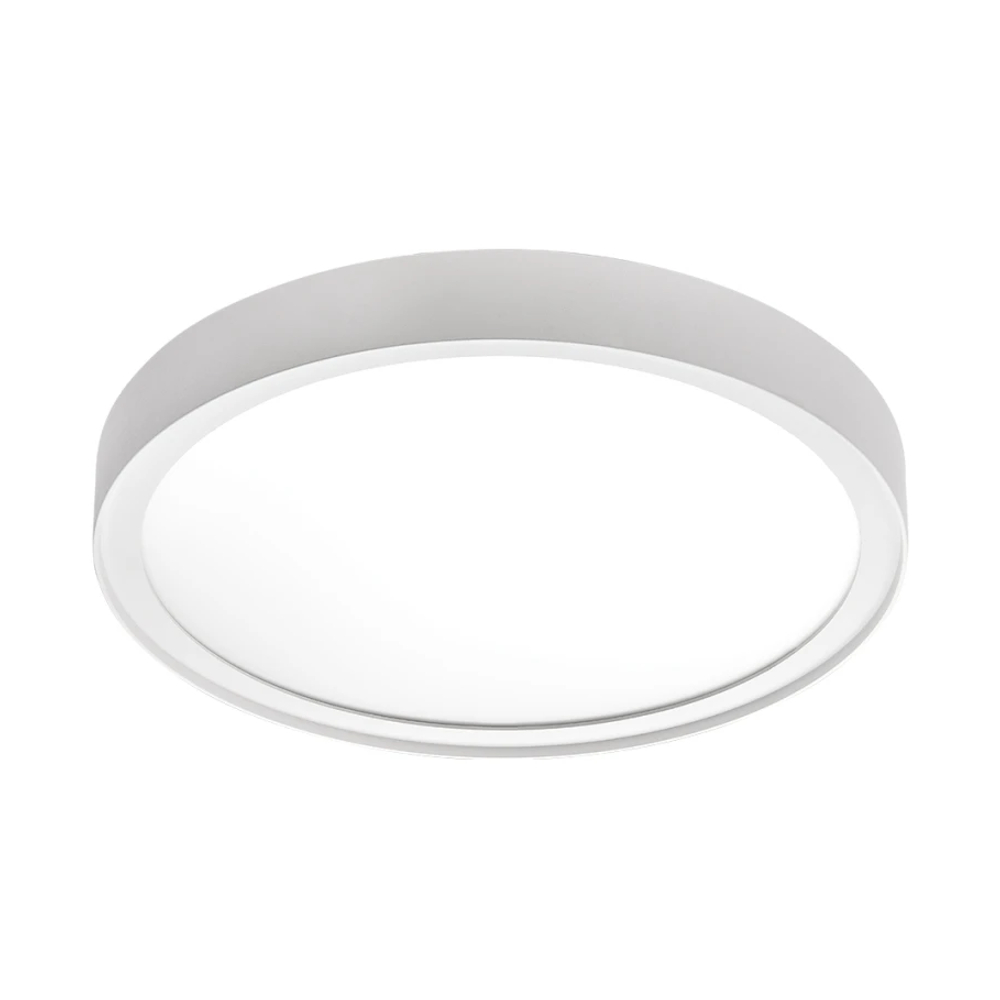

Luminaire Disc 360 21W 220-240V 2610lm 3000K IP20 White SG Armaturen

Description

Disc 360 has an evenly illuminated opalescent surface without shadows or hotspots. Suitable for spaces such as hallways, kitchens and corridors. The ceiling light can be suspended with the Disc pendant kit (sold separately). Easy installation with quick connection between luminaire and back piece and can be mounted against all common ceiling sockets/boxes. Space for surface-mounted cable and quick connection for parallel connection. A smart feature is that you can adjust the light output via DIP switch on the driver.

Technical Information

• Color temperature: 3000 - 3000 K
• Impact resistance (IK): IK10
• Protection class (IEC 61140): II
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Maintained luminous flux at average lifetime 50,000 hours (25 °Combi): 90 %
• Bluetooth controlled: No
• CLO: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): Yes
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: Yes
• Dimming RF: No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Dimmable: Yes
• Driver: LED driver (constant current)
• Driver included: Yes
• Energy efficiency class light source (EU 2019/2015): C
• Color of light adjustable: No
• Color constancy (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Flicker value Pst LM: 0.09
• Glowing wire test (IEC 60695-2-11): None
• Installation width: 0 mm
• Installation height/depth: 0 mm
• Installation length: 0 mm
• Adjustable light distribution: No
• Adjustment of luminous flux: No
• Protection class (IP) rear: IP20
• Protection class (IP) front: IP20
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Suitable for built-in/recessed mounting: No
• Suitable for clamp mounting: No
• Suitable for lamp power: 21 - 21 W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp mounting: Yes
• Suitable for ceiling mounting: Yes
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Light distributor/diffuser: Diffuser lens/optics/panel
• Light distribution: Symmetrical
• Light source: LED (not replaceable)
• Light distribution angle: 40-80° (wide beam)
• Luminous efficiency: 124 - 124 lm/W
• Light outlet: Indirect
• Rated voltage: 220 - 240 V
• Maximum number of luminaires per circuit breaker B16: 30
• Max. number of fixtures per circuit breaker C16: 51
• Max. number of fixtures per circuit breaker C10 (MCB): 31
• Max. system power: 21 W
• With switch: No
• With light source: Yes
• With light sensor: No
• With air hole: No
• With mounting parts: Yes
• With presence detector: No
• With motion sensor: No
• With IFTTT support: No
• Emergency power supply system: None
• Emergency power monitoring system: None
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Nominal luminous flux (IEC 62722-2-1): 2610 - 2610 lm
• Cover with insulation: No
• Roof design: None
• Voltage type: AC
• Strobe effect valueSVM: 0.05
• Type of wiring: Suitable for through wiring
• Unified Glare Ratio (UGR): 22
• Replaceable driver: No

Specifications

• Light color: White
• Color of housing/housing/frame: White
• Material of housing/housing/frame: Aluminum
• Cover Material: Plastic (opal)
• Width: 360 mm
• Length: 360 mm
• Outer diameter: 360 mm
• Height/depth: 57 mm
