LK Wall Bracket Grip V2
Wall bracket for pipe outlet from wall or floor. Intended for 25 mm protective pipe and 16 mm media pipe.
Watch this product and we will notify you once it is back in stock.
LK Wall Bracket Grip V2
Description
Wall bracket for pipe outlet from wall or floor. Intended for 25 mm protective pipe and 16 mm media pipe. Minimum 55 mm free space in the wall is required to install the product. The wall bracket can be attached to, LK Wall Rail with 30 mm hole or short section, drill a 32 mm hole or on the side of the stud, two wall bracket can also be mounted on the side of each other with 40 c/c between the pipe outlets. For installation with 60 c/c turn the LK Wall Rail.
When using LK Wall Bracket Grip V2 for LK PAL Universal Pipe A with empty pipe (RiR), LK Bending Spring INV must be used. Suitable screw for mounting in short section is 4 pcs 4.2x19 not countersunk. Suitable screw for mounting on 2 st 5x60 studs not countersunk. Screws not included. The product has an international design registration.
- Also for side mounting
- Compact construction dimensions
- Stable attachment with three locks in wall rail
Specifications
- Dimension: 25 mm
- Function: For wall rail or Kortling
- Color: Black
- Material: Plastic
- Model/Version: Single
- Suitable for Pipe diameter: 16–20 mm
- Outer diameter protective tube: 25 mm
- Center distance: 40–160 mm
- Material: Plastic
- Material quality: Other
- Surface protection: Untreated
- Color: Other
- With protective tube locking: Yes
- Suitable as floor trestle fixture: Yes
- Suitable as wall trestle fixture: Yes
- Type of attachment: Snap-on mounting
Related products
-
LK Fixture 2xc/c 40mm
Intended for LK Wall Trestle Support Grip, the fixture is mounted on a joist or joist, made of 1.25 mm surface-treated steel sheet.
1874370
36 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 1 till 5 vardagar
-
LK Drain Fixture c/c 40mm
Drain Fixture c/c 40 is used together with LK Wall Rail 160 to fix two LK Wall Trestle Support Grip c/c 40 and a drain pipe in dim 50 mm.
1874369
43 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 1 till 5 vardagar
Tillbehör
-
LK Bending Spring Internal AX20
For cold bending of LK PAL Universal Pipe type A and hot bending of LK PE-X Universal Pipe type X. The spring is intended for use inside the pipe.
1877784
224 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 1 till 5 vardagar
-
LK Bending Spring Internal AX25
For cold bending of LK PAL Universal Pipe type A and hot bending of LK PE-X Universal Pipe type X. The spring is intended for use inside the pipe.
1877785
269 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 1 till 5 vardagar
-

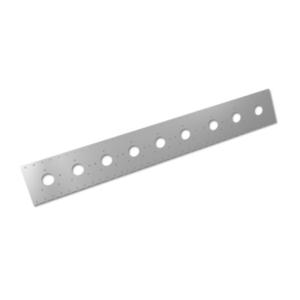

LK Wall Rail c/c150mm
For LK Wall Bracket Grip, Intended for mixers with c/c 150 mm, There is a c/c of 50 mm between the holes in the wall rail.
1872230
155 kr / pc.Add to favorites- Stock status
- Lev. normalt inom ca 1 till 5 vardagar
-

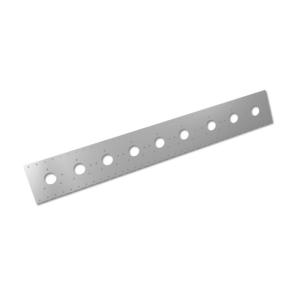

LK Wall Rail Mini c/c160mm
