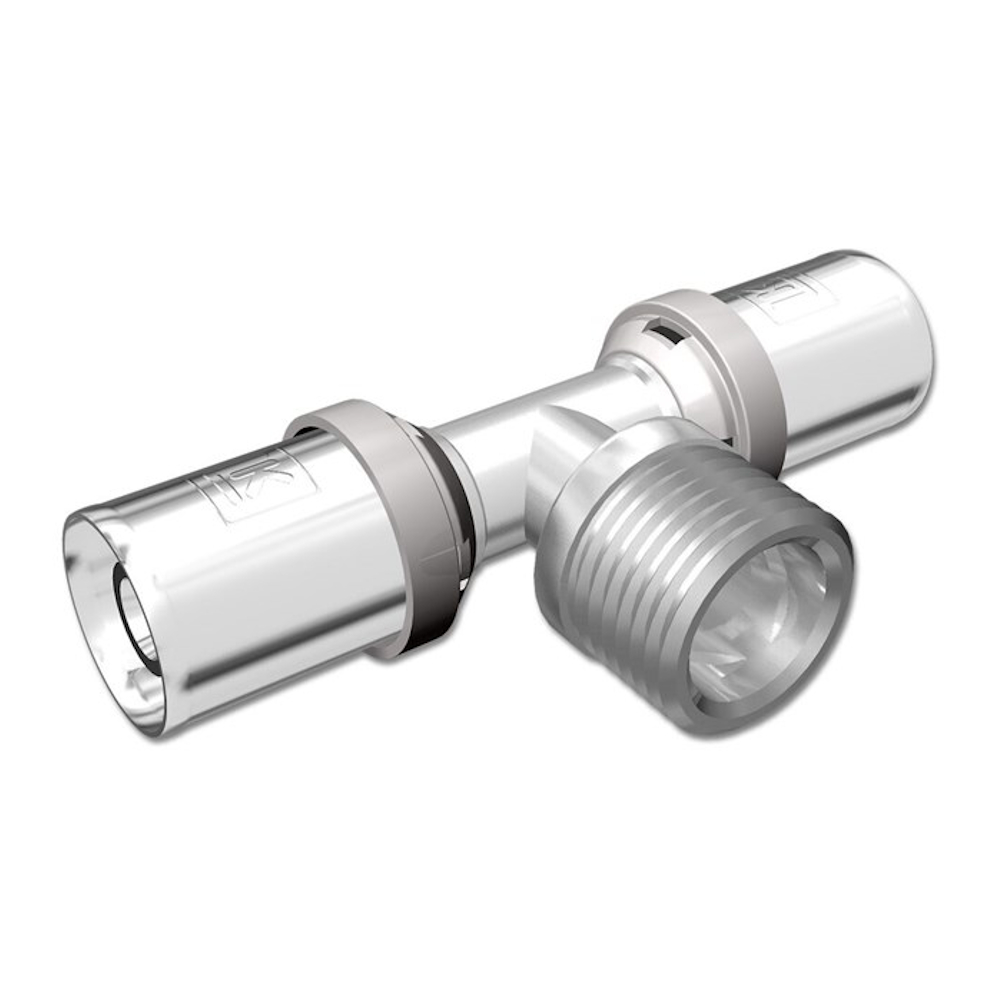

LK PressPex T-Coupling External Thread Branch A63xR40

Description

Press coupling for joining LK PAL and LK PE-X Universal pipes. Parts of this range in dimensions AX16 16x2.0 mm and A32 32x3.0 mm can also be used for PEM pipes.

Specifications

• Dimension: A63mm x R40
• Pressure/Flow/Temp: PN10, Max temp +70°C (+95°C)
• Function: Press joint Tap water/Heating/Cooling
• Design: 2Muff x External Thread
• Color: Brass
• Material: AZH-Brass
• Standard: Press tool LK
• Other Info: With Leakage Indication Unpressed
• Material Connection 1: Brass
• Material Quality Connection 1: Brass Dezincification Resistant (DZR)
• Surface Protection Connection 1: Untreated
• Surface Treatment Connection 1: Untreated
• Material Connection 2: Brass
• Material Quality Connection 2: Brass Dezincification Resistant (DZR)
• Surface Protection Connection 2: Untreated
• Surface Treatment Connection 2: Untreated
• Material Connection 3: Brass
• Material Quality Connection 3: Brass Dezincification Resistant (DZR)
• Surface protection Connection 3: Untreated
• Surface treatment Connection 3: Untreated
• Model/Version: T-piece
• Curved branch: No
• Reduction: No
• Multi-part: No
• System-bound: Yes
• Dimension Connection 1: Other
• External pipe diameter Connection 1: 63 mm
• Connection 1: Press sleeve
• Dimension Connection 2: Conn. 40 (1 1/2")
• Connection 2: External Thread R, Conical (ISO 7-1 / EN 10226-1)
• Dimension Connection 3: Other
• External Pipe Diameter Connection 3: 63 mm
• Connection 3: Press Sleeve
• Material Seal: EPDM (Ethylene Propylene Rubber)
• Max. Working Pressure At 20°C (PN): 10 Bar
• With Gaskets: No
• With Drain Valve: No
• With Air Vent/Breather: No
• With Internal Stop Edge: Yes
• With Protective Cap/Plug: No
• FM Marked: No
• LPCB Marked: No
• ULC Marked: No
• UL Marked: No
