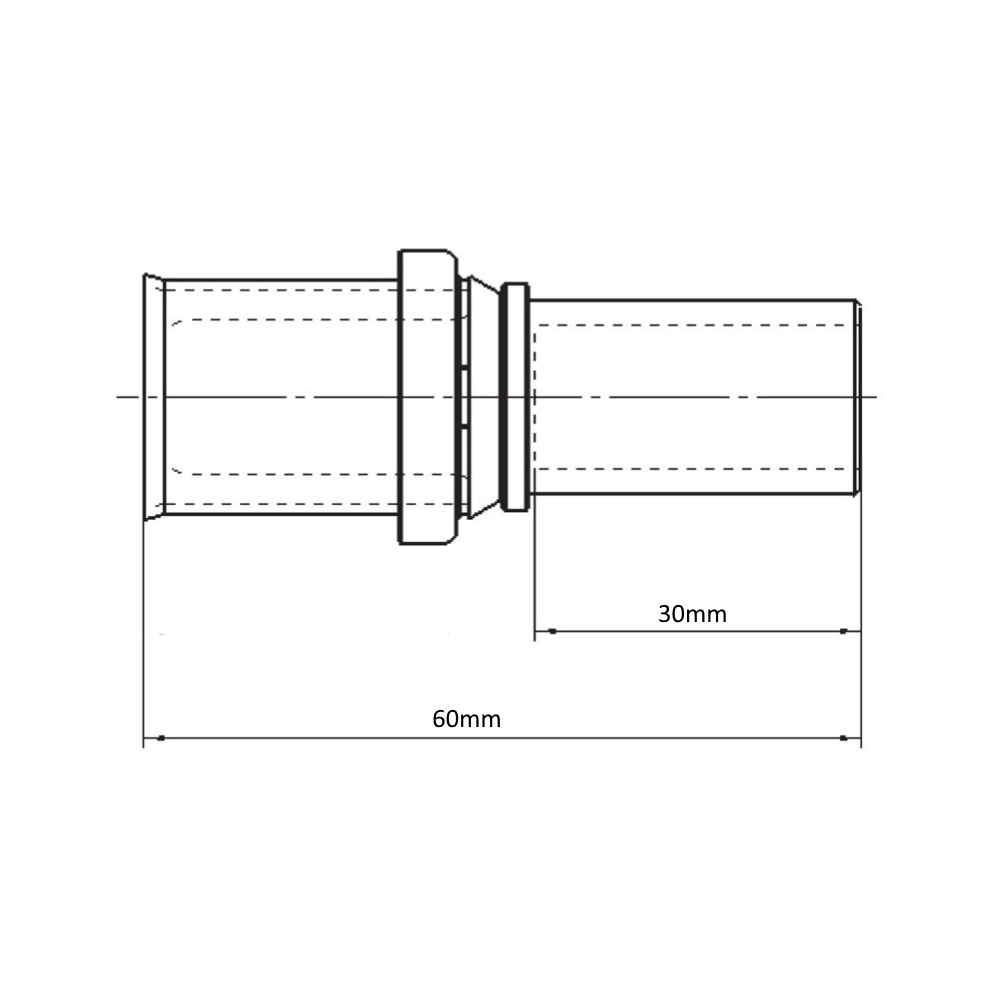

LK PressPex Straight Transition Universal Pipe AX16xCU15

Description

Press coupling for joining LK PAL and LK PE-X Universal pipes. When using PressPex couplings with a smooth end made of brass (EN 12164, CW602N), this end must be joined according to the instructions of the respective coupling supplier. Parts of this range in dimensions AX16 16x2.0 mm and A32 32x3.0 mm can also be used for PEM pipes. Also suitable for LK Underfloor Heating Pipes and PEM Pipes (dim 16x2.0).

Specifications

• Dimension: AX16x15mm
• Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
• Function: Press joint tap water/heating/cooling
• Design: Sleeve x plain end copper
• Color: Nickel/brass
• Surface treatment: Nickel plated
• Material: AZH brass
• Standard: Press tool LK
• Other info: With leak indication unpressed
• Material connection 1: Brass
• Material quality connection 1: Dezincification resistant brass (DZR)
• Surface protection connection 1: Nickel plated
• Surface treatment connection 1: Untreated
• Material connection 2: Brass
• Material quality connection 2: Dezincification resistant brass (DZR)
• Surface protection connection 2: Untreated
• Surface treatment connection 2: Untreated
• Shape: Straight
• Model/Design: 1-piece
• Reduction: No
• Eccentric: No
• System-bound: Yes
• Outer pipe diameter connection 1: 16 mm
• Connection 1: Press sleeve
• Outer pipe diameter connection 2: 15 mm
• Connection 2: Smooth end
• Material seal: EPDM (ethylene propylene rubber)
• With internal stop edge: Yes
• Length: 55 mm
• Media temperature (continuous): 0 - 70 °C
• Max. working pressure at 20°C (PN) 10 bar
• With gaskets: No
• With protective cap/plug: No
• With drain valve: No
• With air vent/bleeder: No
• FM-marked: No
• LPCB-marked: No
• ULC-marked: No
• UL-marked: No
