LK PressPex Press Connection Coupling Angle AX16mmxG20x90°

Description

PressPex coupling in angle with play nut for connecting LK PE-X and LK PAL Universal pipes to external. EuroCone on e.g. LK Manifold UNI. Parts of this range in dimensions AX16 16x2.0 mm and A32 32x3.0 mm can also be used for PEM pipes. See separate range under Press couplings / Couplings for PEM. Also suitable for LK Underfloor heating pipes (dim. 16x2.0).

Specifications

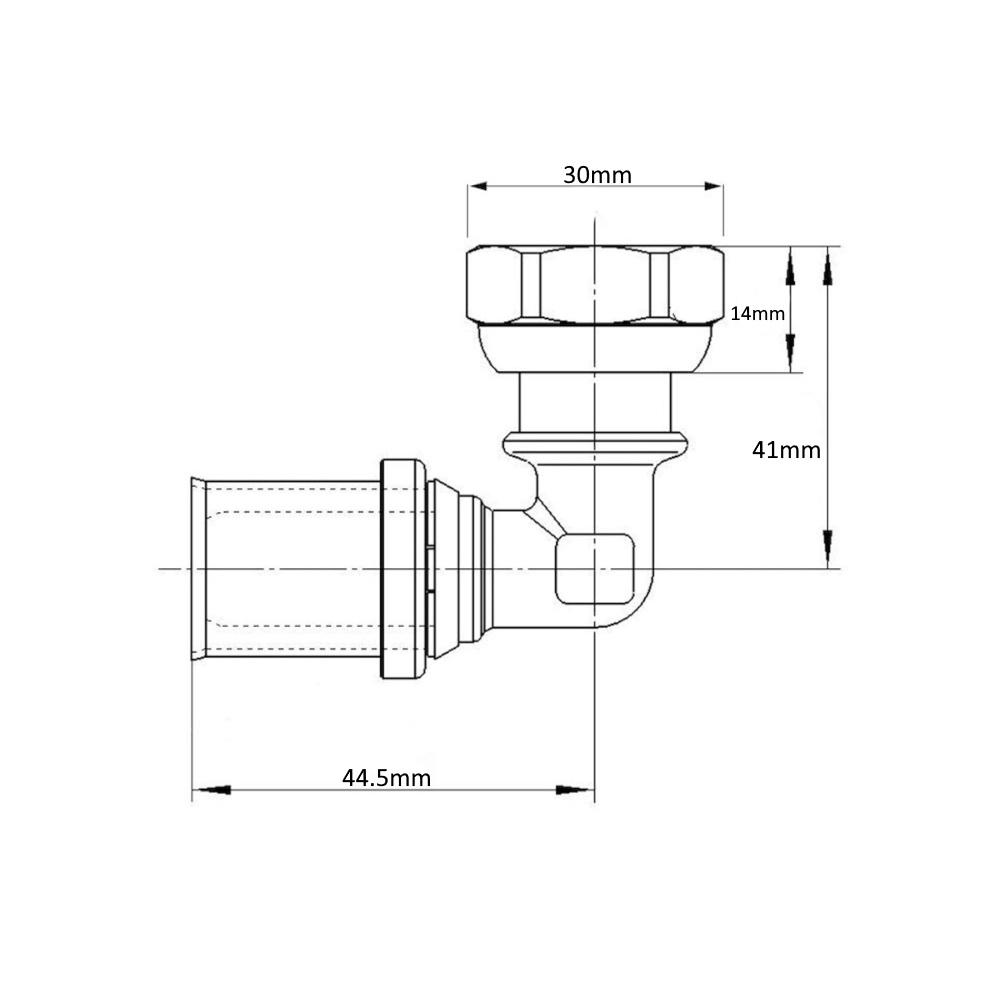

• Dimension: AX16mm x G20 x 90°
• Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
• Function: Press joint tap water/heating/cooling
• Design: Sleeve x internal union nut
• Color: Nickel
• Surface treatment: Nickel-plated
• Material: AZH brass
• Standard: Press tool LK
• Other info: With leak indication unpressed
• Material connection 1: Brass
• Material quality connection 1: Dezincification-resistant brass (DZR)
• Surface protection connection 1: Nickel-plated
• Surface treatment connection 1: Untreated
• Material connection 2: Brass
• Material quality connection 2: Dezincification-resistant brass (DZR)
• Surface protection connection 2: Nickel-plated
• Surface treatment connection 2: Untreated
• Shape: Bend
• Model/Design: 1-piece
• Bending angle: 90 °
• Reduction: No
• Eccentric: No
• System-bound: Yes
• Outer pipe diameter connection 1: 16 mm
• Connection 1: Press sleeve
• Connection 2 dimension: Conn. 15 (1/2")
• Sealing material: EPDM (ethylene propylene rubber)
• With internal stop edge: Yes
• Length: 41.5 mm
• Media temperature (continuous): 0 - 70 °C
• Max. operating pressure at 20°C (PN): 10 bar
• With gaskets: No
• With protective cap/plug: No
• With drain valve: No
• With air vent/bleeder: No
• FM-marked: No
• LPCB-marked: No
• ULC-marked: No
• UL-marked: No
