Plumbing Plaströr - Tryck LK Universal LK Press-Pex Kopplingar

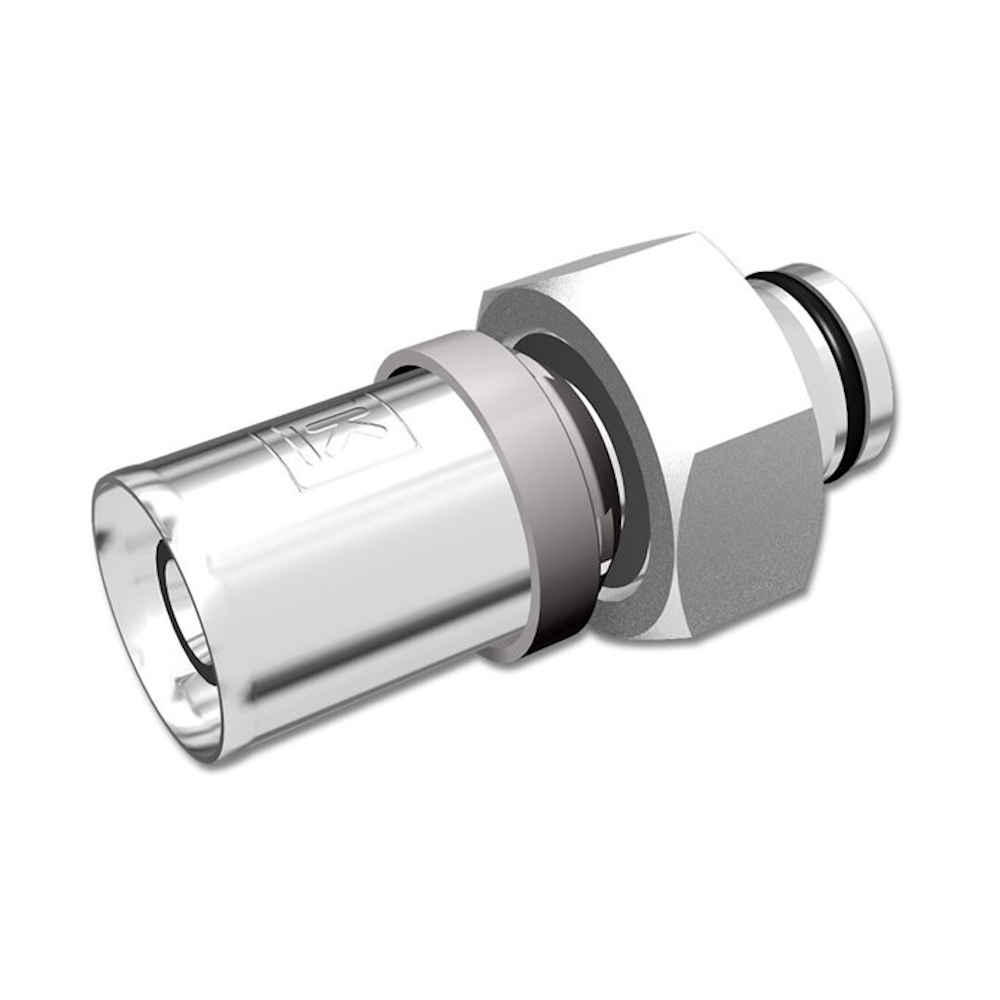

LK PressPex Press Connection Coupling A32xG20

PressPex coupling with play nut for connecting LK PE-X and LK PAL Universal pipes to the outside.

LK PressPex Press Connection Coupling A32xG20

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK PressPex Press Connection Coupling A32xG20

PressPex coupling with play nut for connecting LK PE-X and LK PAL Universal pipes to the outside.

Description

PressPex coupling with play nut for connecting LK PE-X and LK PAL Universal pipes to the outside. EuroCone on e.g. LK Manifold UNI. Parts of this range in dimensions AX16 16x2.0 mm and A32 32x3.0 mm can also be used for PEM pipes.

Specifications

  • Dimension: A32 mm x G20
  • Pressure/Flow/Temp: PN10, max temp +70 °C (+95 °C)
  • Function: Press joint for tap water, heating and cooling
  • Design: Sleeve x internal union nut
  • Color: Nickel
  • Surface treatment: Nickel-plated
  • Material: AZH brass
  • Standard: Press tool LK
  • Other info: With leak indication unpressed
  • Material connection 1: Brass
  • Material quality connection 1: Dezincification-resistant brass (DZR)
  • Surface protection connection 1: Nickel-plated
  • Surface treatment connection 1: Untreated
  • Material connection 2: Brass
  • Material quality connection 2: Dezincification-resistant brass (DZR)
  • Surface protection connection 2: Nickel-plated
  • Surface treatment connection 2: Untreated
  • Shape: Straight
  • Model/Design: 1-piece
  • Reduction: No
  • Eccentric: No
  • System-bound: Yes
  • Connection 1 dimension: Other
  • Outer pipe diameter connection 1: 32 mm
  • Connection 1: Press sleeve
  • Connection 2 dimension: Conn. 20 (3/4")
  • Sealing material: EPDM (ethylene propylene rubber)
  • With internal stop edge: Yes
  • Length: 55.5 mm
  • Media temperature (continuous): 0–70 °C
  • Max. working pressure at 20 °C (PN): 10 bar
  • With gaskets: No
  • With protective cap/plug: No
  • With drain valve: No
  • With air vent/bleeder: No
  • FM-marked: No
  • LPCB-marked: No
  • ULC-marked: No
  • UL-marked: No
