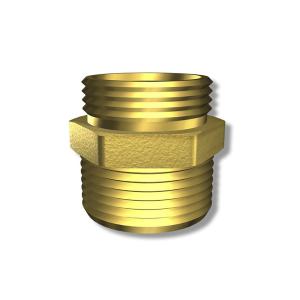

LK Nipple Straight G25x25mm External Thread

Description

Nipple with 1 coupling connection and an external thread. Supplemented with the respective connection coupling.

Specifications

• Dimension: G25x25mm
• Design: Straight, external thread
• Material connection 1: Brass
• Material quality connection 1: Dezincification resistant brass (DZR)
• Surface protection connection 1: Untreated
• Surface treatment connection 1: Untreated
• Material connection 2: Brass
• Material quality connection 2: Dezincification resistant brass (DZR)
• Surface protection connection 2: Untreated
• Surface treatment connection 2: Untreated
• Shape: Straight
• Model/Design: 1-piece
• Reduction: No
• Eccentric: No
• System-bound: No
• Outer pipe diameter connection 1: 25 mm
• Connection 1: Clamping ring
• Dimension connection 2: Conn. 25 (1")
• Connection 2: External thread G, cylindrical (ISO 228-1)
• Material seal: Brass
• With internal stop edge: Yes
• Length: 38 mm
• Media temperature (continuous): 0 - 90 °C
• Max. working pressure at 20°C (PN): 10 bar
• With gaskets: No
• With protective cap/plug: No
• With drain valve: No
• With air vent/bleeder: No
• FM-marked: No
• LPCB-marked: No
• ULC-marked: No
• UL-marked: No
