LK Manifold UNI-Avst G20/2xG15

Surface-mounted manifold for heating and tap water systems with built-in shut-off valve on each branch.

LK Manifold UNI-Avst G20/2xG15

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK Manifold UNI-Avst G20/2xG15

Surface-mounted manifold for heating and tap water systems with built-in shut-off valve on each branch.

Description

Surface-mounted manifold for heating and tap water systems with built-in shut-off valve on each branch. Mounted on wall or ceiling in LK Manifold Console or in LK Manifold Cabinet UNI. Made of dezincification-resistant brass, nickel-plated. Manifolds UNI 2-G15-Avst, UNI 3-G15-Avst and UNI 4-G15-Avst have connection G20 (internal and external thread EuroCone) for supply line and connection G15 c/c 50mm external gg Conex/EuroCone on the branch. Pipes X16, A16, X20 and A20 can be connected both with LK Connection coupling and with LK PressPex Press connection coupling. The distributor has an O-ring seal on the external G20 side, which makes it easier to assemble 2 distributors without additional sealing. If 2 distributors UNI-Avst are to be assembled with branches both upwards and downwards, LK Joint Nipple G20, 1878206, can be used.

Specifications

  • Dimension: G20/2xG15
  • Size: 2xc/c50mm
  • Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
  • Function: For tap water, heating
  • Version: With shut-off
  • Color: Nickel
  • Surface treatment: Nickel-plated
  • Material: AZH brass
  • Suitable for tap water: Yes
  • Suitable for heating water: Yes
  • Suitable for cooling water: Yes
  • Suitable for compressed air: Yes
  • Suitable for glycol: Yes
  • Mounting method: Surface-mounted
  • Material: Brass
  • Surface protection: Nickel-plated
  • Dimension connection 1: Conn. 20 (3/4")
  • Form: Through with straight branches
  • Connection 1: External thread G, cylindrical (ISO 228-1)
  • Connection dimension 2: Conn. 20 (3/4")
  • Connection 2: Internal thread G, cylindrical (ISO 228-1)
  • Number of branches: 2
  • Number of branch directions: 1
  • Dimensions branch: Conn. 15 (1/2")
  • Connection branches: External thread G, cylindrical (ISO 228-1)
  • Center distance between branches: 50 mm
  • Difference between center distances between branches: No
  • Pressure class: PN 10
  • Max. medium temperature (continuous): 70 °C
  • System-related: No
  • With filling and draining valve: No
  • With shut-off valve: Yes
  • With venting: No
  • With wall bracket: No
  • With mounting parts: No
  • With legs/feet: No
  • With insulation: No

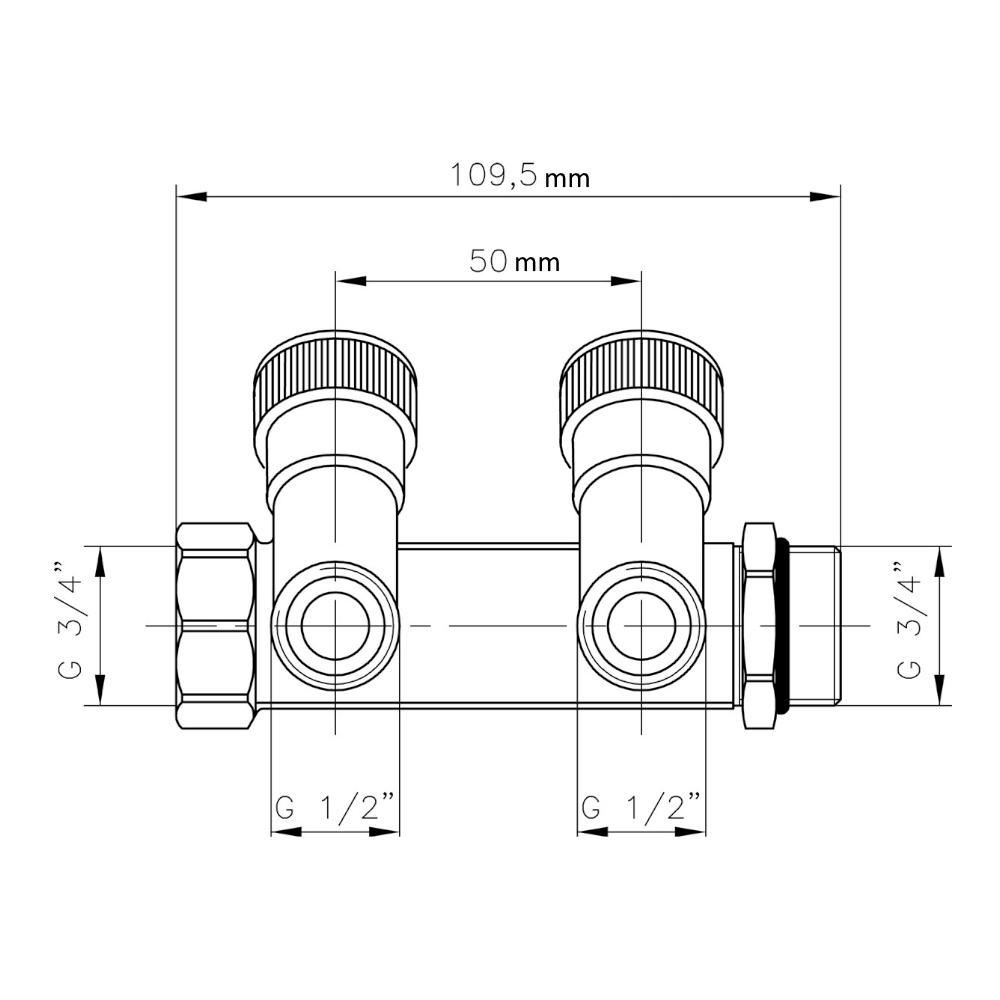

  • Distributor length: 109.5 mm
