LK Bend Support UNI-Floor

For pipe risers from the floor with LK Universal RiR dim AX16 and AX20, Made of surface-treated steel sheet.

LK Bend Support UNI-Floor

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK Bend Support UNI-Floor

For pipe risers from the floor with LK Universal RiR dim AX16 and AX20, Made of surface-treated steel sheet.

Description

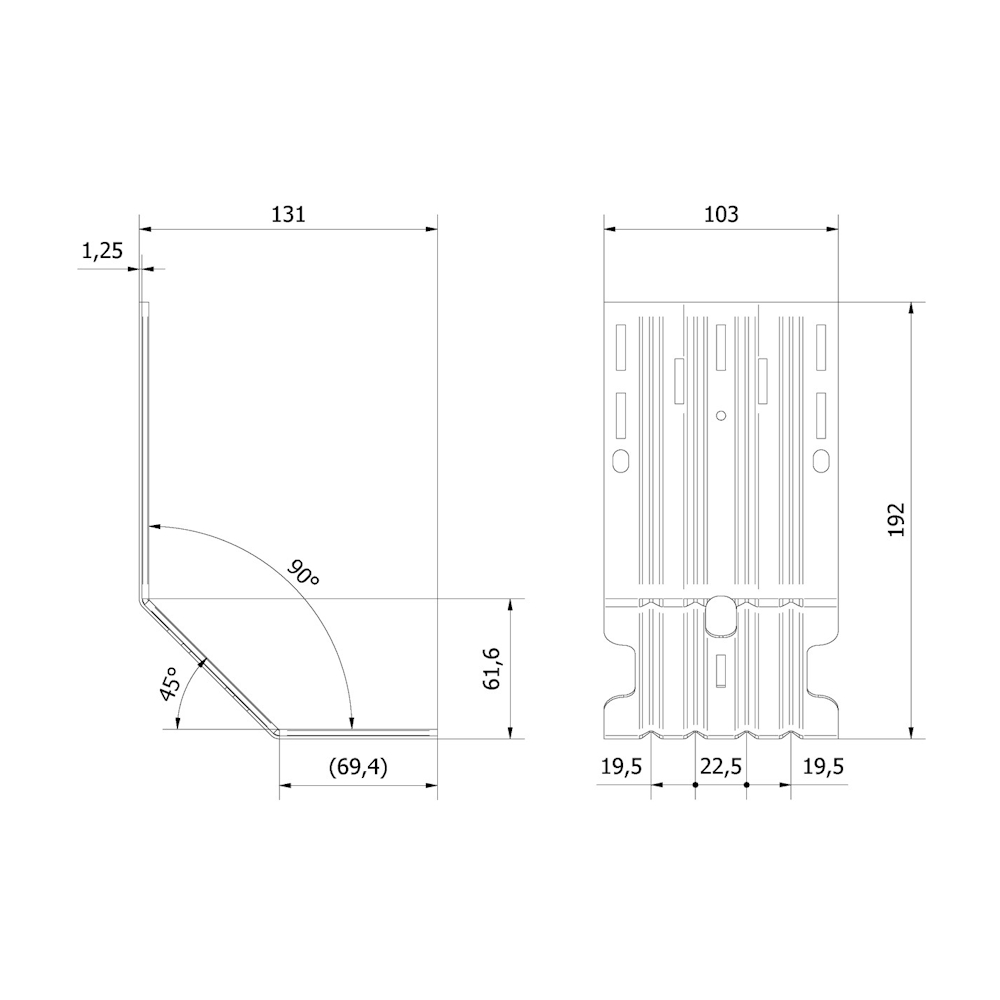

For pipe risers from the floor with LK Universal RiR dim AX16 and AX20. Provides c/c 40 mm between the pipes and is intended to be screwed or nailed to the substrate. Made of surface-treated steel sheet. The sheet is equipped with a hole to be able to mount a reinforcing bar or similar. This means that the pipes can be stabilized above any casting.

Specifications

  • Function: for pipe risers from the floor
  • Color: Galv
  • Surface treatment: Galvanised
  • Material: Steel
  • Max. diameter input: 20 mm
  • Model/Version: Quadruple
  • With protective tube locking: No
  • Fixation method: Other
  • Center distance: 40 - 40 mm
  • Suitable as floor bracket fixture: Yes
  • Suitable as wall bracket fixture: No
  • Material quality: Other
  • Max. diameter output: 20 mm
  • Surface treatment: Other
