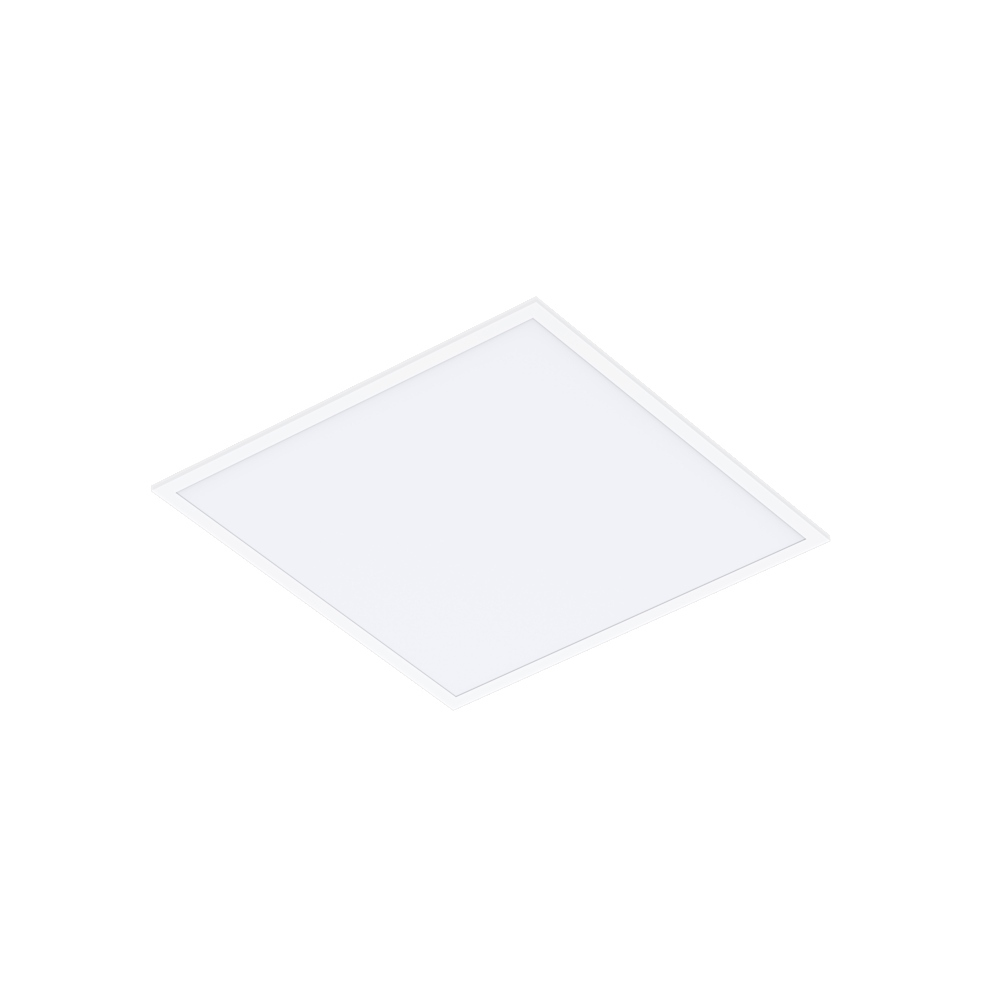

Light Panel Cloud Pop OP Flex EQ 3Poles 39W 220-240V 2500-4800lm IP20/IP50 White Exactor

Description

Cloud POP MP is a thin light panel with a microprismatic diffuser and is suitable for general lighting in environments with higher mixing requirements. The luminaire has a discreet frame in white-painted aluminum that is mounted without tools in suspended ceilings with a visible support profile, the minimum recess depth when mounting from below is 50mm. To change the appearance of the luminaire, the luminaire can be combined with a circular cover plate that is available as an accessory. Moln POP MP has an IP20 protection class above the suspended ceiling and an IP50 protection class below the suspended ceiling, when mounted on a frame, the entire luminaire is classified as IP20.

The luminaire has an adjustable color temperature in three positions; 3000-, 4000- and 5000k and is available as on/off or DALI. On/off is adjustable in five steps; 20- / 25- / 30- / 35- and 40W and is supplied with a separate strain-relief ballast. On/off is available with a 3m cable rack with an ungrounded European plug or with a 3-pole connection box, EQ-box. The EQ-box has dual inputs and a quick-connect terminal block for wiring between 0.75 - 2.5mm². DALI is supplied with a separate strain-relief DALI ballast and a 5-pole connection box, EQ-box. The EQ box has dual inputs and a quick-connect terminal block for wiring between 0.75 - 2.5mm². Comes with a custom-made ballast and cord or junction box. Quick-connect between ballast and light panel.

Technical Information

• Color temperature: 3000 - 5000 K
• Color rendering index (CRI/Ra): 80-89
• Ingress protection (IP) front: IP50
• Suitable for VDU work (EN 12464-1): No
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Bluetooth controlled: No
• CLO: No
• Rear edge dimming (phasecut-off): No
• Front edge dimming (phasecut-on): No
• Push button dimming: No
• Programmable dimming: No
• Dimmable: No
• Driver: LED driver (constant current)
• Driver included: Yes
• Power factor: 0.89
• Energy efficiency class light source (EU 2019/2015): D
• Color of light adjustable: Modes
• Color fastness (McAdam ellipse): SDCM3
• Glow wire test (IEC 60695-2-11): 650 °C - 30 s
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Luminous flow adjustment: Modes
• Protection class (IP): IP50
• Protection class (IP) rear: IP20
• Suitable for recessed/recessed mounting: Yes
• Suitable for emergency lighting: No
• Suitable for pendant suspension: Yes
• Suitable for ramp mounting: No
• Suitable for ceiling mounting: Yes
• Suitable for surface mounting: Yes
• Conductor cross-section: 2.5 mm²
• Light distributor/diffuser: Diffuser lens/optics/panel
• Light distribution: Symmetrical
• Light source: LED (not replaceable)
• Light distribution angle: 40-80° (wide beam)
• Luminous efficiency: 116 - 132 lm/W
• Luminous power: Direct
• Rated voltage: 220 - 240 V
• Rated current: 200 - 230 mA
• Max. system power: 39 W
• With light source: Yes
• With light sensor: No
• With air gap: No
• With motion sensor: No
• Nominal service life L70/B50 at 25 °C: 100000 h
• Nominal ambient temperature according to IEC 62722-2-1: -20 - 35 °C
• Nominal luminous flux (IEC 62722-2-1): 2482 - 4799 lm
• Cover with insulation: No
• Roof design: None
• Protection class (IEC 61140): II
• Voltage type: AC
• Connection type: Push-in terminal (fast terminal)
• Type of wiring: Suitable for through-wiring
• Unified Glare Ratio (UGR): 19
• Replaceable driver: Yes

Specifications

• Light color: White
• Color of housing/enclosure/body: White
• Material of housing/enclosure/body: Aluminum
• Surface protection housing/enclosure/frame: Powder coated
• Material Dome/Cover: Plastic (opal)
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Installation width: 595 mm
• Installation height/depth: 25 mm
• Installation length: 595 mm
• Height/depth: 25 mm
• Length: 595 mm
• Width: 595 mm
