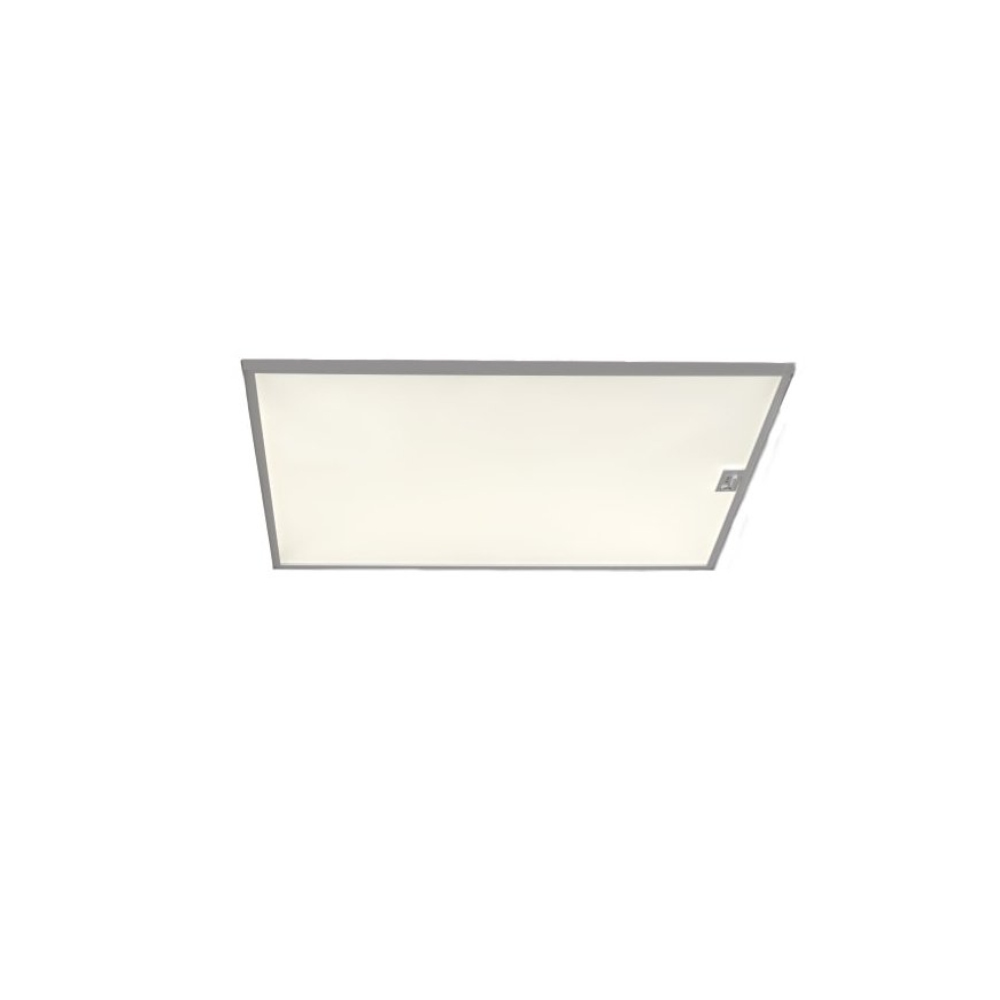

Ledused Recessed LED Panel Dali-DS8 G5 840 5625lm 37W 220-240V IP20 White Solar Light

Description

Ledused G5 LED panel in class II, with color temperature 4000K, CRI 80-89, wide beam opal diffuser and adjustable light output up to 5625lm (factory setting). Comes with a DALI-2 Switch&Dim driver, which can regulate the light output from 1-100%, and has the option that the light output can be changed in 8 different steps via DIP switches; 25W/3825lm - 27W/4125lm - 29W/4425lm - 30W/4575lm - 32W/4875lm - 34W/5175lm - 35W/5325lm - 37W/5625lm. The luminaire is 595x595 mm and is intended for ceiling mounting (module 600x600) with visible T-rails. Alternatively mounted as surface-mounted (requires accessories). The LED and driver technology used is of the highest quality, which guarantees that there is no annoying flicker or stroboscopic effect; "Flicker-free" according to the requirements of the EU Ecodesign Directive. The opal diffuser is in PMMA, is very easy to clean and ensures a pleasant and even distribution of the light. The Ledused G5 series, with its wide and flexible range, is very useful in many different indoor locations such as; office environments, schools and other educational institutions, hospitals and healthcare sectors, etc. where a discreet, efficient and technical lighting solution is required. Connection is made via the pre-installed junction box, which contains a 5x2.5mm² terminal block for easy connection and looping. The junction box is also prepared for Linect.

Technical Information

• Nominal luminous flux: 5625lm
• Color temperature: 4000 - 4000K
• Type of dimming: DALI-2
• Color rendering index (CRI/Ra): 80-89
• Adapted for VDU work (EN 12464-1): No
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Maintained luminous flux at average lifetime 50,000 hours (25°C ambient): 90%
• Maintained luminous flux at average lifetime 75,000 hours (25°C ambient): 85%
• Dimming DALI-2: Yes
• Dimming with touch: Yes
• Dimming with push button: Yes
• Distortion (THD): 10
• Driver: LED driver (constant current)
• Driver included: Yes
• EcoDesign: Yes
• Power factor: 0.95
• Enec: Yes
• Energy efficiency class: C
• Energy efficiency class light source (EU 2019/2015): C
• EPD: Yes
• Colour fastness (McAdam ellipse): SDCM3
• Flicker value Pst LM: 0.5
• Photobiological safety (EN 62471): RG1
• Glow wire test (IEC 60695-2-11): 650 °C - 30 s
• Glow wire tested according to IEC 60695-2-10: 650 °C - 30 s
• Indoor/Outdoor: Indoor placement
• Luminous flow adjustment: Continuously adjustable
• Protection class (IP): IP20
• Leakage current: 0.5
• Suitable for built-in/recessed mounting: Yes
• Suitable for ceiling mounting: Yes
• Driver life (h): 100000
• Light distributor/diffuser: Diffuser lens/optics/panel
• Light distribution: Symmetrical
• Light source: LED (replaceable)
• Light distribution angle: Open beam
• Luminous efficiency: 152 lm/W
• Light outlet: Direct
• Rated voltage: 220-240V
• Maximum number of luminaires per circuit breaker C13: 36
• Maximum number of luminaires per circuit breaker B10: 18
• Maximum number of luminaires per circuit breaker B16: 28
• Maximum number of luminaires per circuit breaker C10: 28
• Maximum number of luminaires per circuit breaker C16: 44
• Max. system power: 37 W
• With light source: Yes
• With light sensor: No
• Nominal service life L70/B50 at 25 °C: 100000 h
• Nominal service life L80/B10 at 25 °C: 100000 h
• Nominal service life L90/B10 at 25 °C: 50000 h
• Nominal service life L90/B50 at 25 °C: 55000 h
• Nominal service life L70/B10 at 25 °C: 100000 h
• Nominal service life L80/B50 at 25 °C: 100000 h
• Nominal ambient temperature according to IEC 62722-2-1: -20 - 40°C
• Cover with insulation: No
• R9 Value(%): 10
• Protection class (IEC 61140): II
• Impact resistance (IK): IK03
• Voltage type: AC
• Stroboscopic effect valueSVM: 0.4
• Connection type: Plug-in terminal (quick terminal)
• Unified Glare Ratio (UGR): 22
• Replaceable driver: Yes

Specifications

• Light color: White
• RAL number: 9016
• Material Dome/Cover: Plastic (opal)
• Surface protection housing/enclosure/frame: Powder coated
• Color housing/enclosure/frame: White
• Material: Aluminum
• Material housing/enclosure/frame: Aluminum
• Cover Material: Acrylic
• Food Contact Material: No
• REACH: No
• ROHS: Yes

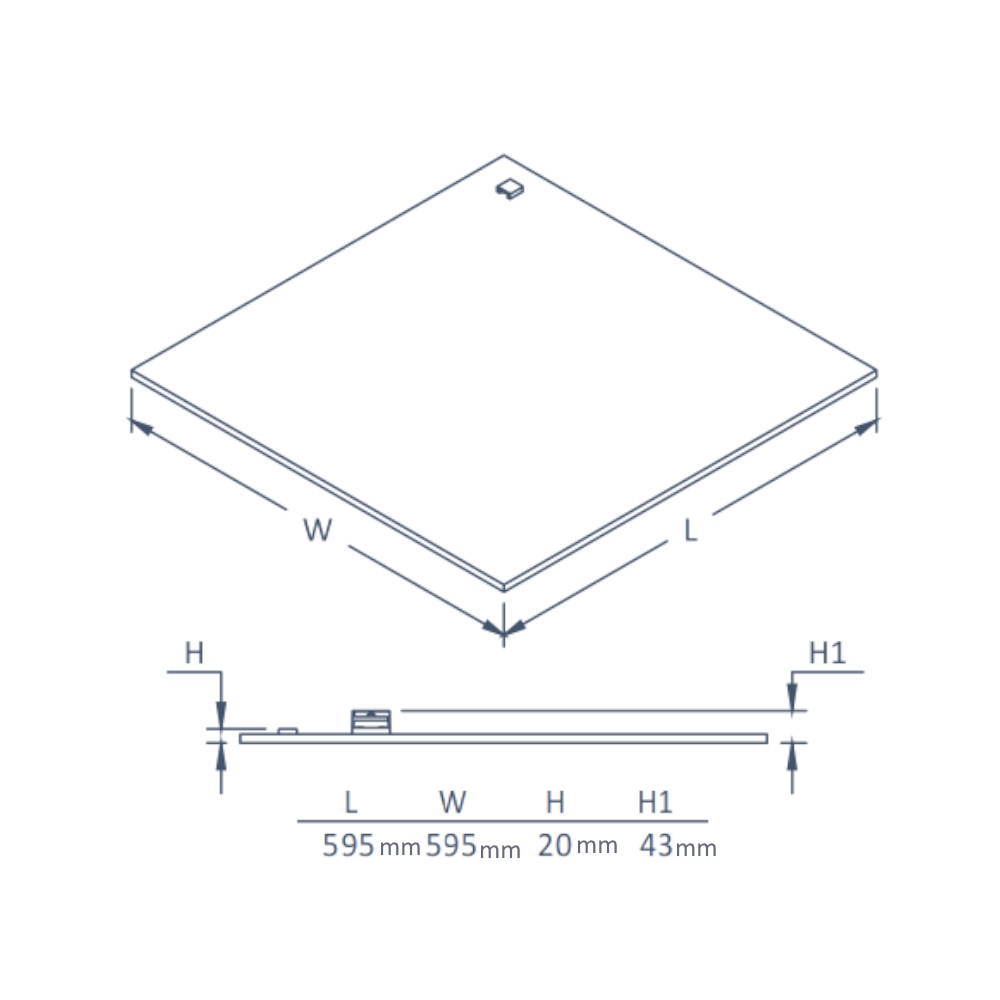

• Length: 595mm
• Width: 595mm
• Height/depth: 20mm
