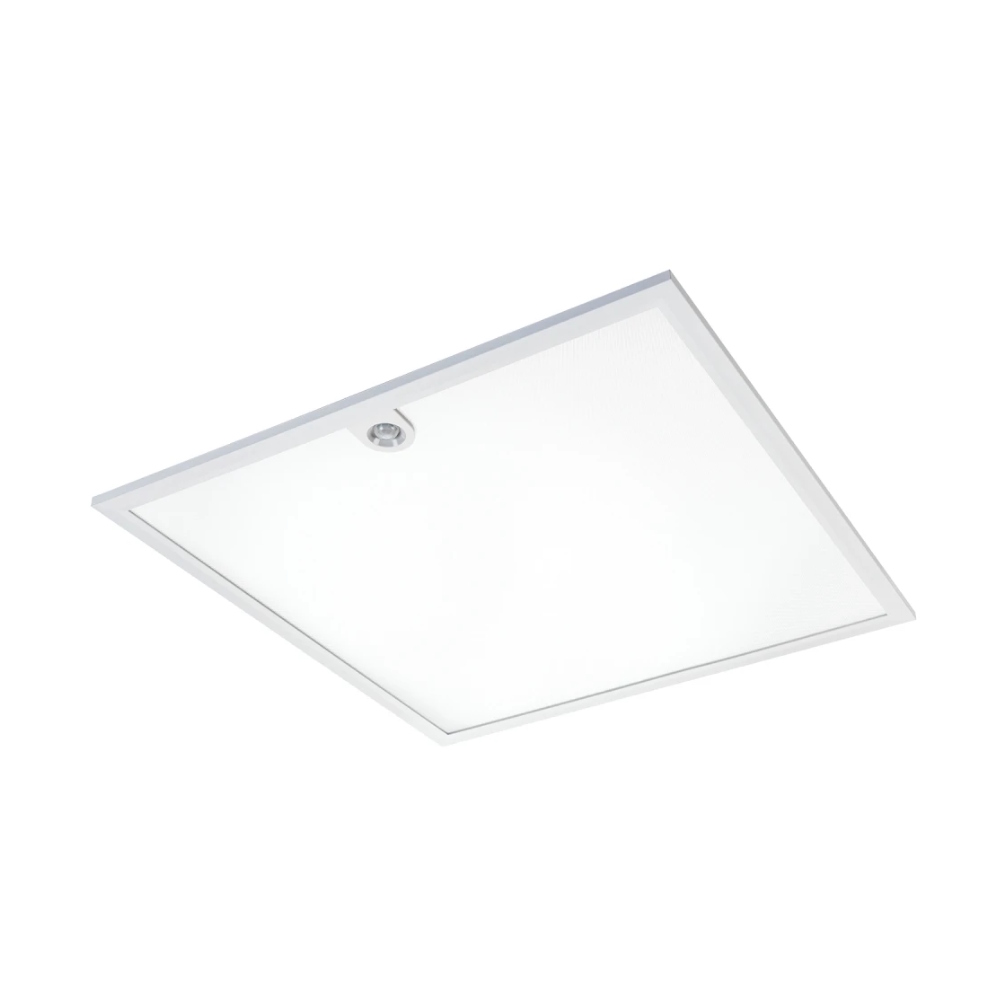

LED Panel Sense Pro PIR 35W 220-240V 4340lm 3000K IP20 White SG Armaturen

Description

Sense Pro PIR is supplied complete with driver and cable rack. The sensor is discreetly placed on the edge and turns on the lighting when it detects movement and turns off after a predetermined period of time, which provides good energy savings. The PIR sensor also has an adjustable daylight sensor, so you can choose not to turn on the lighting when there is enough daylight. Sense PIR can function as a master and control up to three other Sense panels (slave). Can be mounted in ceilings with visible support without accessories and in ceilings with hidden support with accessories (7021982121760).

Technical Information

• Nominal luminous flux: 4340lm
• Color temperature: 3000 - 3000K
• Color rendering index (CRI/Ra): 80-89
• Protection class (IP) front: IP20
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Maintained luminous flux at average lifetime 50,000 hours (25 °C ambient): 90%
• Bluetooth controlled: No
• CLO: No
• No dimmer function: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• LineSwitch dimming: No
• Touch dimming: No
• Push button dimming: No
• Mains voltage modulation dimming: No
• Potentiometer dimming (integrated): No
• Programmable dimming: No
• RF dimming: No
• Sine wave dimming (Sine Wave Reduction): No
• Manufacturer specific dimming: No
• Zigbee dimming: No
• Dimmable: Yes
• DoC (CE): Yes
• Driver: LED driver (constant current)
• Driver included: No
• Power factor: 100
• Energy efficiency class light source (EU 2019/2015): C
• Color of light adjustable: No
• Color fastness (McAdam ellipse): SDCM3
• Photobiological safety (EN 62471): RG0
• Glowing wire test (IEC 60695-2-11): None
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Luminous flux adjustment: No
• Protection class (IP): IP20
• Protection class (IP) rear: IP20
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Suitable for built-in/recessed mounting: Yes
• Suitable for clamp mounting: No
• Suitable for lamp power: 35 - 35 W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: Yes
• Suitable for ramp mounting: No
• Suitable for ceiling mounting: Yes
• Suitable for surface mounting: Yes
• Suitable for wall mounting: No
• Suitable number of light sources: 1
• Conductor area: 1 mm²
• Light distribution: Symmetrical
• Light intensity: 3000 - 3000 cd
• Light intensity: 3000 cd
• Light source: LED (not replaceable)
• Light distribution angle: Open beam
• Luminous output: 124 lm/W
• Luminous efficiency: 124 - 124 lm/W
• Light output: Direct
• Rated voltage: 220-240V
• Rated current: 800 - 1050 mA
• Maximum number of luminaires per circuit breaker B16: 25
• Maximum number of luminaires per circuit breaker C16: 40
• Max. system power: 35 W
• With switch: No
• With light source: Yes
• With light sensor: No
• With air hole: No
• With mounting parts: Yes
• With presence detector: No
• With motion sensor: Yes
• With IFTTT support: No
• Emergency power supply system: None
• Emergency power monitoring system: None
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Nominal luminous flux (IEC 62722-2-1): 4340 - 4340 lm
• Cover with insulation: No
• Rotary design: None
• Protection class (IEC 61140): III
• Impact resistance (IK): IK10
• Voltage type: AC
• Connection type: Push-in terminal (quick terminal)
• Type of wiring: Suitable for through-wiring
• Replaceable driver: No

Specifications

• Light color: White
• Material housing/enclosure/frame: Aluminum
• Colour housing/enclosure/frame: White
• Material dome/cover: Plastic (opal)
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Height/depth: 11 mm
• Length: 597 mm
• Width: 597 mm
• Installation height/depth: 49 mm
