LED Panel Sense Eco 34W 220-240V 4350lm 3000K IP65 White SG Armaturen

Description

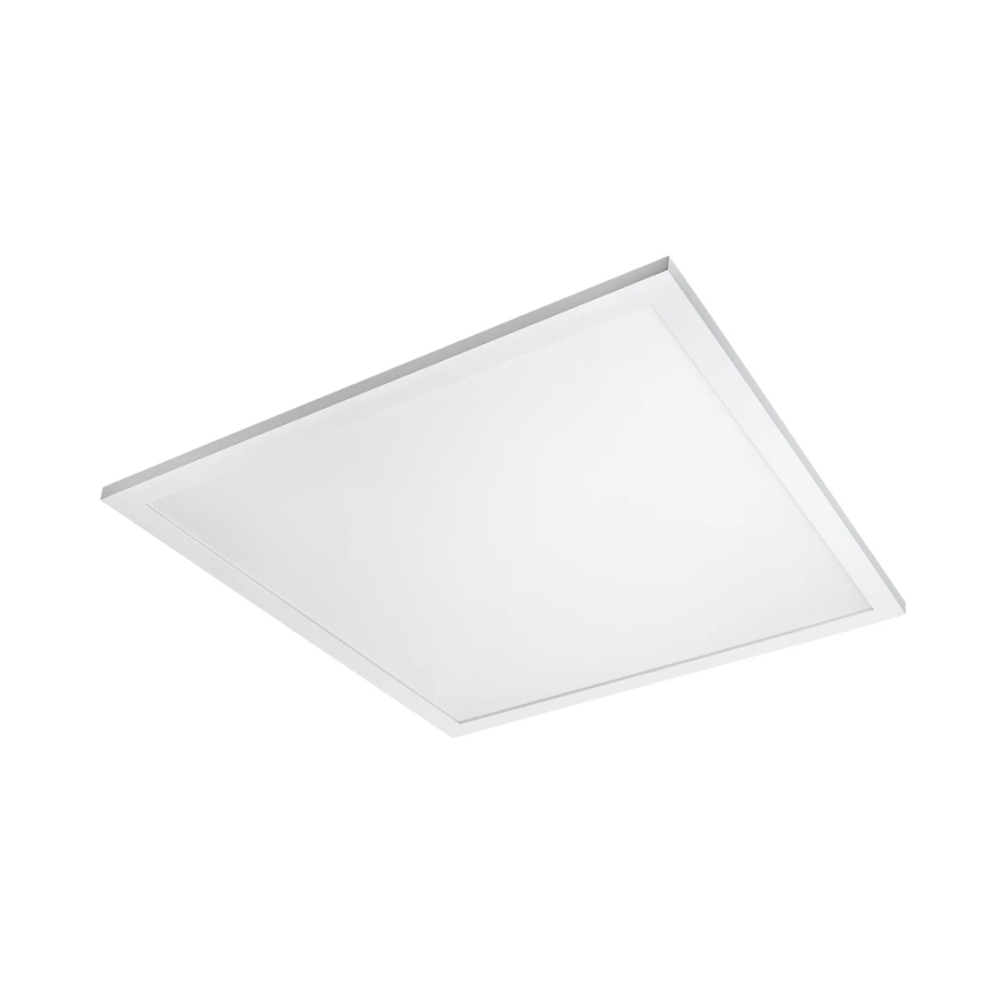

Sense IP65 Eco is an all-round luminaire with an opal prismatic front. Comes complete with driver. Perfect for industrial kitchens, hospitals, laboratories and production facilities. Very low glare, UGR < 19 and long life. Sense IP65 Eco is easy to install in T-tracks in ceilings and has a smooth surface in PMMA, which makes it easy to clean. The LED panel is IP65-rated on the front and back. The driver has protection class IP20. With a 2+1 m long cable from the panel, the driver can be placed so that it is not exposed to water during cleaning.

Technical Information

• Nominal luminous flux: 4350lm
• Color temperature: 3000 - 3000K
• Type of light control: Trailing edge dimming
• Color rendering index (CRI/Ra): 80-89
• Protection class (IP) front: IP65
• Suitable for VDU work (EN 12464-1): No
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Maintained luminous flux at average lifetime 50,000 hrs (25°C ambient): 90%
• Bluetooth controlled: No
• Failure at average lifetime 35,000 hrs (25°C ambient): 0%
• Failure at average lifetime 50,000 hrs (25°C ambient): 0%
• Failure at average lifetime 75,000 hrs (25°C ambient): 0%
• No dimmer function: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• Dimming depending on driver: No
• DALI dimming: No
• DALI-2 dimming: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Lowest energy efficiency class for replacement lamps: A++
• Suitable for built-in/recessed installation: Yes
• Suitable for clamp installation: No
• Suitable for lamp power: 34 - 34W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp installation: No
• Suitable for ceiling installation: Yes
• Suitable for surface mounting: No
• Suitable for wall mounting: No
• Suitable for wall mounting: No
• Suitable number of light sources: 1
• Conductor cross-section: 1 mm²
• Luminous flux in emergency mode: 0 lm
• Light distribution: Symmetrical
• Light source: LED (not replaceable)
• Light distribution angle: Open beam
• Luminous efficiency: 128 lm/W
• Luminous efficiency: 128 - 128 lm/W
• Light socket: Direct
• Rated voltage: 220-240V
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Dimmable: Yes
• Driver: LED driver (constant current)
• Driver included: Yes
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Energy efficiency class light source (EU 2019/2015): C
• Energy efficiency class included replacement bulbs: A++
• Color of light adjustable: No
• Color fastness (McAdam ellipse): SDCM3
• Photobiological safety (EN 62471): RG0
• Glowing wire test (IEC 60695-2-11): None
• Highest energy efficiency class for replacement bulbs: A++
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Luminous flux adjustment: No
• Protection class (IP): IP65
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Rated current: 800 - 900 mA
• Maximum number of luminaires per circuit breaker B16: 31
• Maximum number of luminaires per circuit breaker C16: 31
• Max. system power: 34W
• With switch: No
• With light source: Yes
• With light sensor: No
• With air hole: No
• With mounting parts: Yes
• With presence detector: No
• With motion sensor: No
• With IFTTT support: No
• Emergency power supply system: None
• Emergency power monitoring system: None
• Nominal service life L70/B50 at 25 °C: 0 h
• Nominal service life L90/B10 at 25 °C: 50000 h
• Nominal ambient temperature according to IEC 62722-2-1: 0 - 25 °C
• Nominal luminous flux (IEC 62722-2-1): 4350 - 4350 lm
• Cover with insulation: No
• Roof design: None
• Protection class (IEC 61140): II
• Voltage type: DC
• Type of wiring: Suitable for through wiring
• Unified Glare Ratio (UGR): 18
• Replaceable driver: No

Specifications

• Light color: White
• Color housing/enclosure/frame: White
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Plastic (opal)
• Food Contact Material: No
• REACH: No
• ROHS: Yes

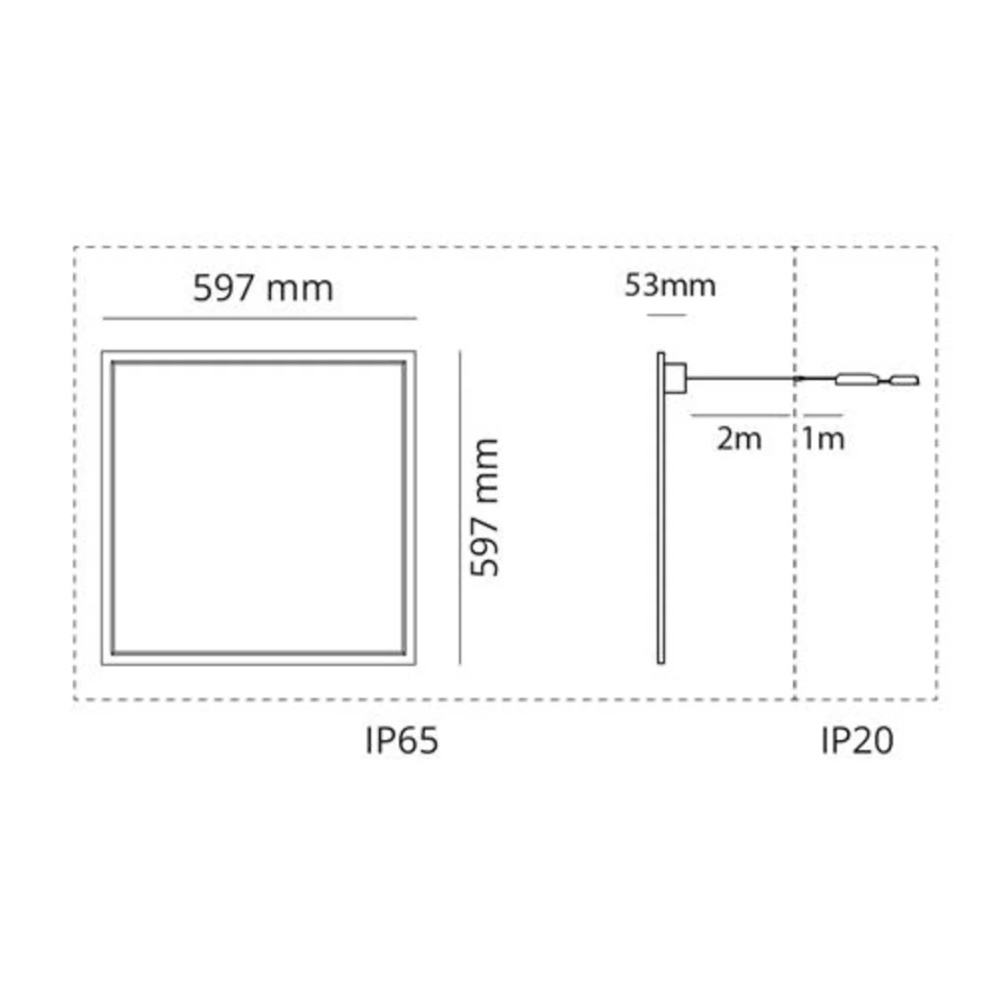

• Height/depth: 53 mm
• Length: 597 mm
• Width: 597 mm
