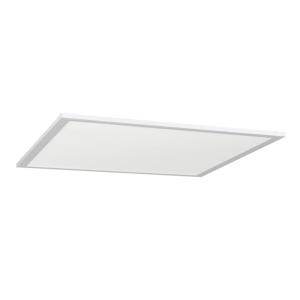

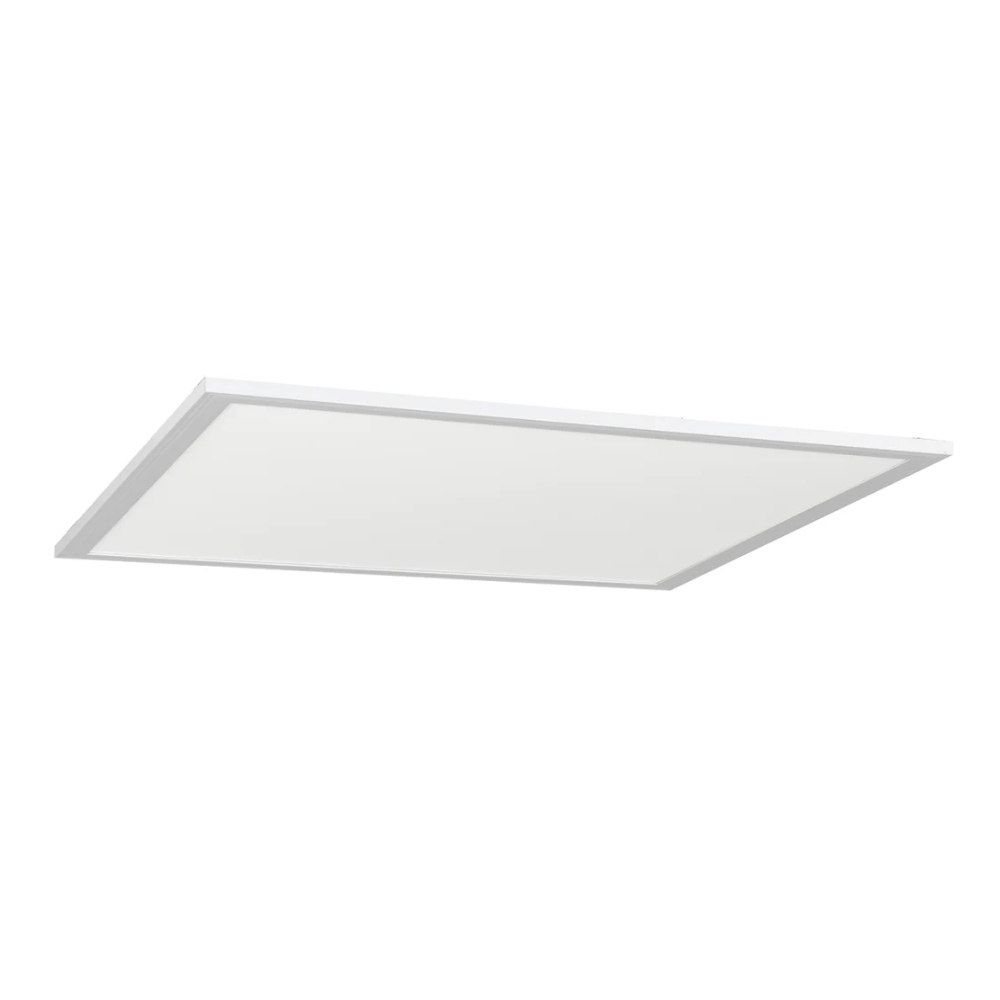

Interior Luminaire Moln Pro Dali 930 G2 5Poles 35W 230V 3500lm 3000K IP20 White Exaktor

Description

Recessed thin light panel suitable for general lighting. Prismatic plastic disc. 35 watts. Luminaire lumen 3500lm. Color temperature 3000K. SDCM <3. RA >90. Lifespan L80B50, >54000h Ta 25°C. For suspended ceilings (600x600) with visible support profile. Minimum installation depth 50 mm. Incl. 3 m 5-conductor cable. IP20/passes IP40 from below. Can be suspended using wire suspension or mounted directly to the ceiling with a separate frame as an accessory.

Technical Information

• Nominal luminous flux: 3500lm
• Color temperature: 3000 - 3000K
• Color rendering index (CRI/Ra): 90-100
• Adapted for VDU work (EN 12464-1): Yes
• Number of poles: 5
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• No dimmer function: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• Dimming depending on driver: No
• Dimming DALI: Yes
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• RF dimming: No
• Sine wave dimming (Sine Wave Reduction): No
• Manufacturer-specific dimming: No
• Zigbee dimming: No
• Dimmable: Yes
• Driver: LED driver (constant current)
• Driver included: Yes
• Power factor: 0.98
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Glow-wire test (IEC 60695-2-11): None
• Protection class (IP): IP20
• Suitable for built-in/recessed installation: Yes
• Suitable for emergency lighting: Yes
• Suitable for pendant suspension: Yes
• Suitable for ramp installation: No
• Suitable for ceiling installation: Yes
• Suitable for surface-mounted installation: Yes
• Suitable for wall installation: No
• Suitable number of light sources: 1
• Conductor cross-section: 0.75 mm²
• Light distributor/diffuser: Diffuser lens/optics/panel
• Light distribution: Symmetrical
• Light source: LED (not replaceable)
• Light distribution angle: 40-80° (wide beam)
• Luminous efficiency: 100 lm/W
• Light outlet: Direct
• Rated voltage: 230 - 230 V
• Max. system power: 35W
• With light source: Yes
• With light sensor: No
• With air hole: No
• With motion sensor: No
• Nominal service life L70/B50 at 25 °C: 54000 h
• Nominal service life L90/B50 at 25 °C: 28000 h
• Nominal service life L80/B50 at 25 °C: 54000 h
• Nominal ambient temperature according to IEC 62722-2-1: -20 - 35°C
• Cover with insulation: No
• Roof design: None
• Impact resistance (IK): IK02
• Voltage type: AC
• Type of wiring: Suitable for through-wiring

Specifications

• Light color: White
• Color housing/enclosure/frame: White
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Plastic (structured)
• Surface protection housing/enclosure/frame: Powder coated
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Installation width: 595mm
• Installation length: 595mm
• Height/depth: 10mm
• Length: 595mm
• Width: 595mm
