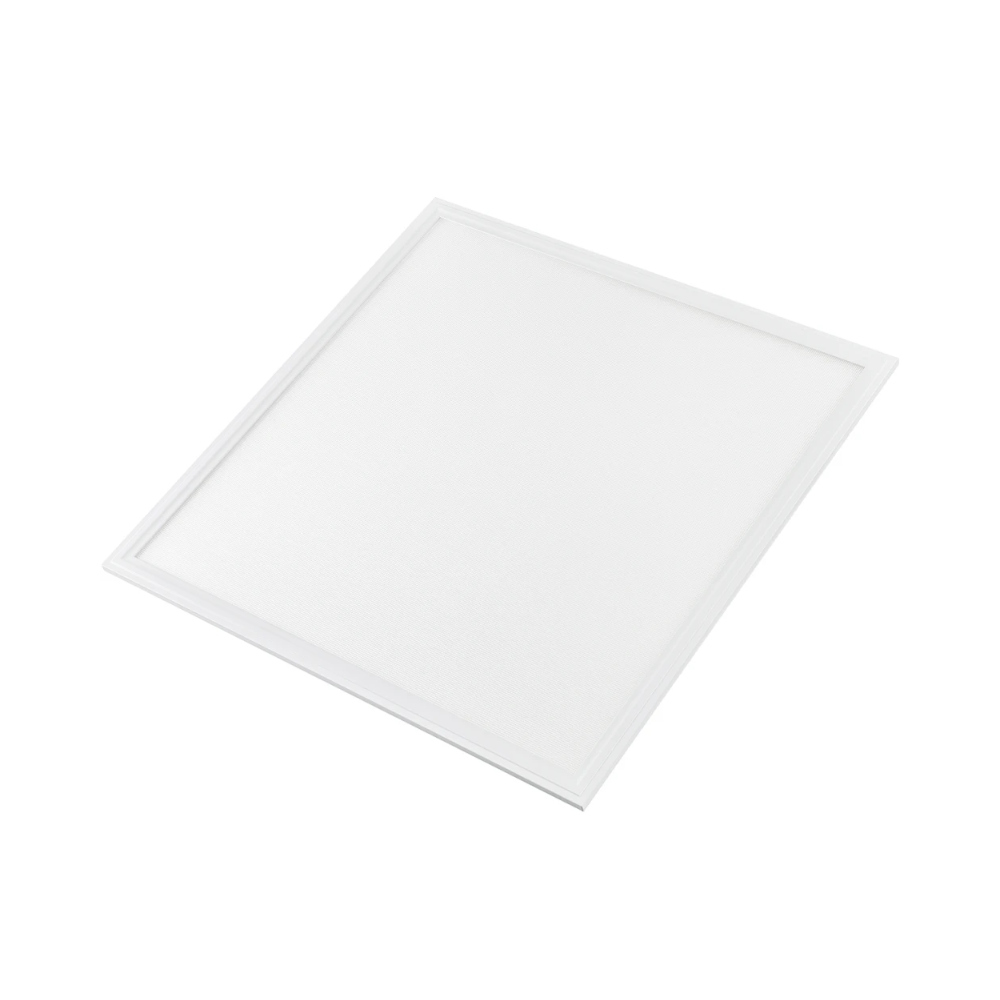

Interior Luminaire Moln Pro Dali 840 G2 27W 230V 3400lm 4000K IP20 White Exaktor

Description

Recessed thin light panel suitable for general lighting. Prismatic plastic disc. 28 watts. Luminaire lumen 3100 lm. SDCM 3. RA >80. Lifespan L80B10, 50000h Ta 25°C. For suspended ceilings (600x600) with visible support profile. Incl. 3 m 5-conductor cable rack. IP20/passes IP40 from below. Can be suspended using wire suspension or mounted directly to the ceiling with a separate frame.

Technical Information

• Nominal luminous flux: 3400lm
• Color temperature: 4000 - 4000K
• Type of light control: DALI
• Color rendering index (CRI/Ra): 80-89
• Adapted for VDU work (EN 12464-1): No
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• No dimmer function: Yes
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• Dimming depending on driver: No
• Dimming DALI: Yes
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• RF dimming: No
• Sine wave dimming (Sine Wave Reduction): No
• Manufacturer-specific dimming: No
• Zigbee dimming: No
• Dimmable: Yes
• Driver: LED driver (constant current)
• Driver included: Yes
• Light source power: 25 W
• Light source power multiwatt: Not applicable
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Integrated emergency lighting unit: No
• Protection class (IP): IP20
• Suitable for built-in/recessed installation: Yes
• Suitable for emergency lighting: No
• Suitable for pendant suspension: Yes
• Suitable for ramp installation: No
• Suitable for ceiling installation: Yes
• Suitable for surface-mounted installation: Yes
• Suitable for wall installation: No
• Suitable number of light sources: 1
• Light distribution: Symmetrical
• Light source: LED (not replaceable)
• Light distribution angle: >80° (extreme wide beam)
• Light output: Direct
• Rated voltage: 230 - 230 V
• Rated current: 700 - 700 mA
• Max. system power: 27 W
• With light source: Yes
• With light sensor: No
• With air hole: No
• With motion sensor: No
• Ambient temperature: -20 - 35 °C
• Cover with insulation: Yes
• Roster design: None
• Reflector: None
• Protection class (IEC 61140): I
• Impact resistance (IK): IK00
• Voltage type: AC

Specifications

• Light color: White
• Type of surface: Glossy
• Material housing/enclosure/frame: Aluminum
• Surface protection housing/enclosure/frame: Powder coated
• Material dome/cover: Plastic (structured)
• Colour housing/enclosure/frame: White
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Installation height/depth: 50 mm
• Height/depth: 10 mm
• Length: 595 mm
• Width: 595 mm
