Half-Block Insulation Element Thermomur 250X Open 0.18m² BEWI

Description

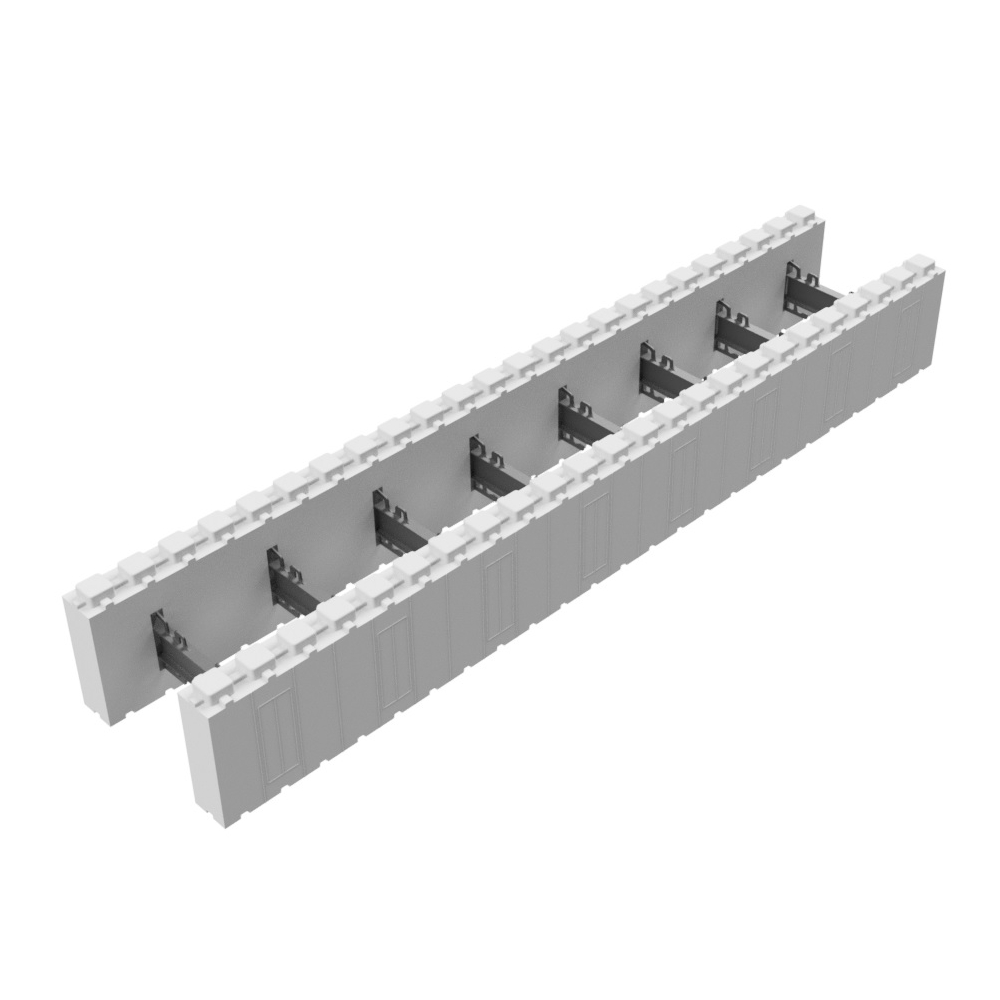

Injection-molded EPS insulation element used in the Thermomur 250X building system. The block serves as a special element for adapting walls under window sections or for adjusting to exact floor height. The element is stacked like a building block together with other Thermomur blocks and filled with concrete to create a finished, insulated wall with minimal thermal bridges. The Thermomur system is built for use in, for example, foundation walls, garage walls, retaining walls and single-family house constructions where insulation and form are included in the same element.

Specifications

• Block type: Half block with open end
• Material: EPS (expanded polystyrene)
• Use: Adaptation under windows / floor height in the Thermomur system
• External dimensions (L×W×H): 1200 × 250 × 150 mm
• Insulation thickness per side: 50 mm + 50 mm (total 100 mm insulation around the core)
• Concrete thickness in the core: 150 mm (space for concrete)
• Area per block: approx. 0.18 m²
• Weight per block: approx. 1.0–1.8 kg (lightweight element)
• U-value: approx. 0.31 W/m²K (for the Thermomur 250X system)
• Installation: Stacked like a building block, filled with concrete after assembly.
