Frame Screw Programa Classic INSEX10 90mm 80pcs Essve

Description

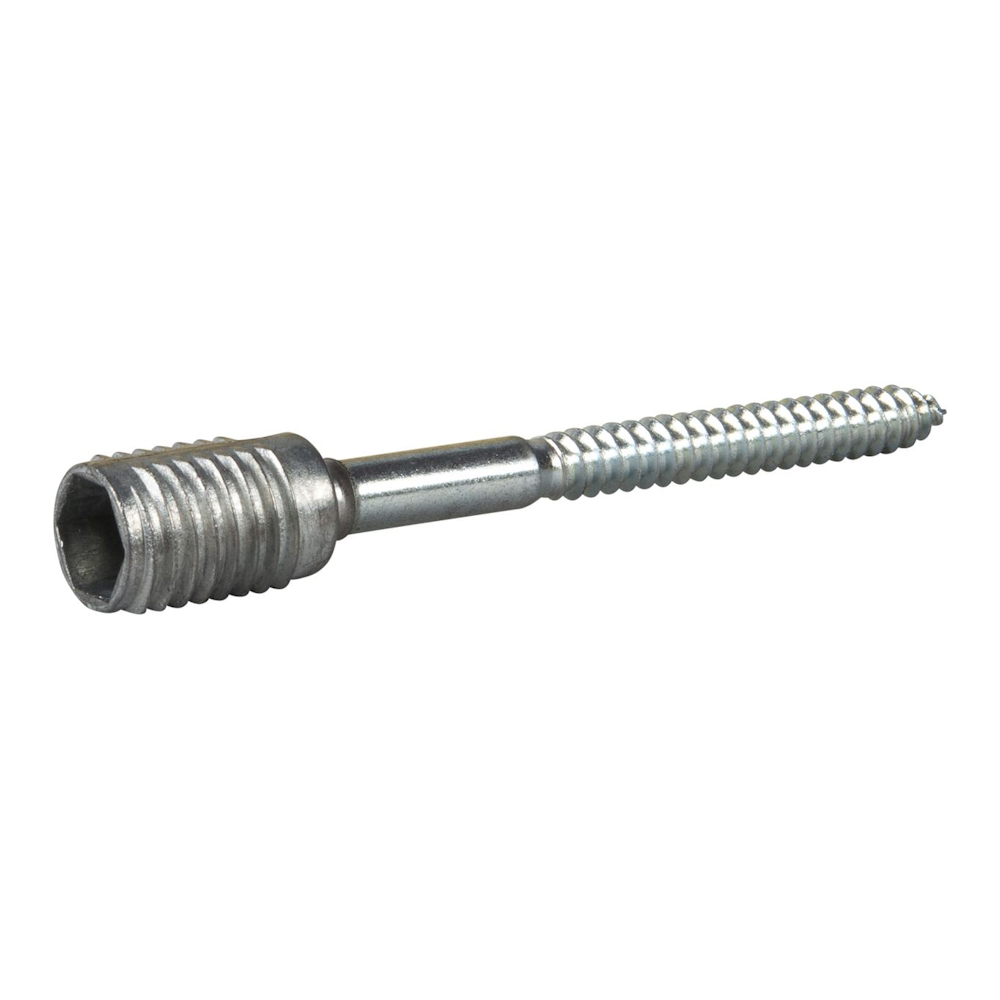

Essve Programa Frame screw Classic consists of an externally threaded zinc sleeve and a through-going steel screw that can rotate freely in the sleeve. When installed, the frame screw's sleeve sits in the frame and the screw in the substrate. By screwing on the sleeve, but not the screw, you can adjust the frame inwards or outwards.

Programa Frame screw can be installed without fixed blocks and provides a fully adjustable and demountable installation without damage to the frame or substrate. Installation with Programa Frame screw improves and facilitates from an insulation point of view, as with mineral wool or joint foam you get an uninterrupted drive. Essve Programa Plus Classic is registered in the BASTA system and meets the BASTA rating level, see BASTAonline.se for current registration status. Essve Programa Plus Classic is rated B in Sunda Hus. Essve Programa Classic Frame Screw is for mounting window and door frames in wood, concrete, brick, lightweight clinker and lightweight concrete. It provides an adjustable mounting, ideal when the frame, door or wall "settles".

Mounting in wooden joists: The distance between the frame and the wall determines the length of the frame screw to be used. Tip! Use KarmFix Programa as an assembly aid in wooden wall structures, so no wedges are needed.

Mounting to concrete, brick: The distance between the frame and the wall and the wall material determine the length of the frame screw. Length 70 and 90 mm together with N-plug. Consideration is taken so that the correct screw-in length is obtained in the plug.

Mounting to hollow brick, lightweight concrete, lightweight clinker: Length 140 mm with NL or GXL plug. Consideration is taken so that the correct screw-in length is obtained in the plug. For a neat finish, cover the hole with a cover cap in a suitable color.

Specifications

• Surface treatment: Bright zinc-plated
• Corrosivity class: C1
• Diameter: 7 mm
• Length: 90 mm
• Head diameter: 16 mm
• Max. material thickness: 10-35 mm
• Bore diameter: 14 mm
• Bits: INSEX10
• Quantity/Pack: 80pcs
