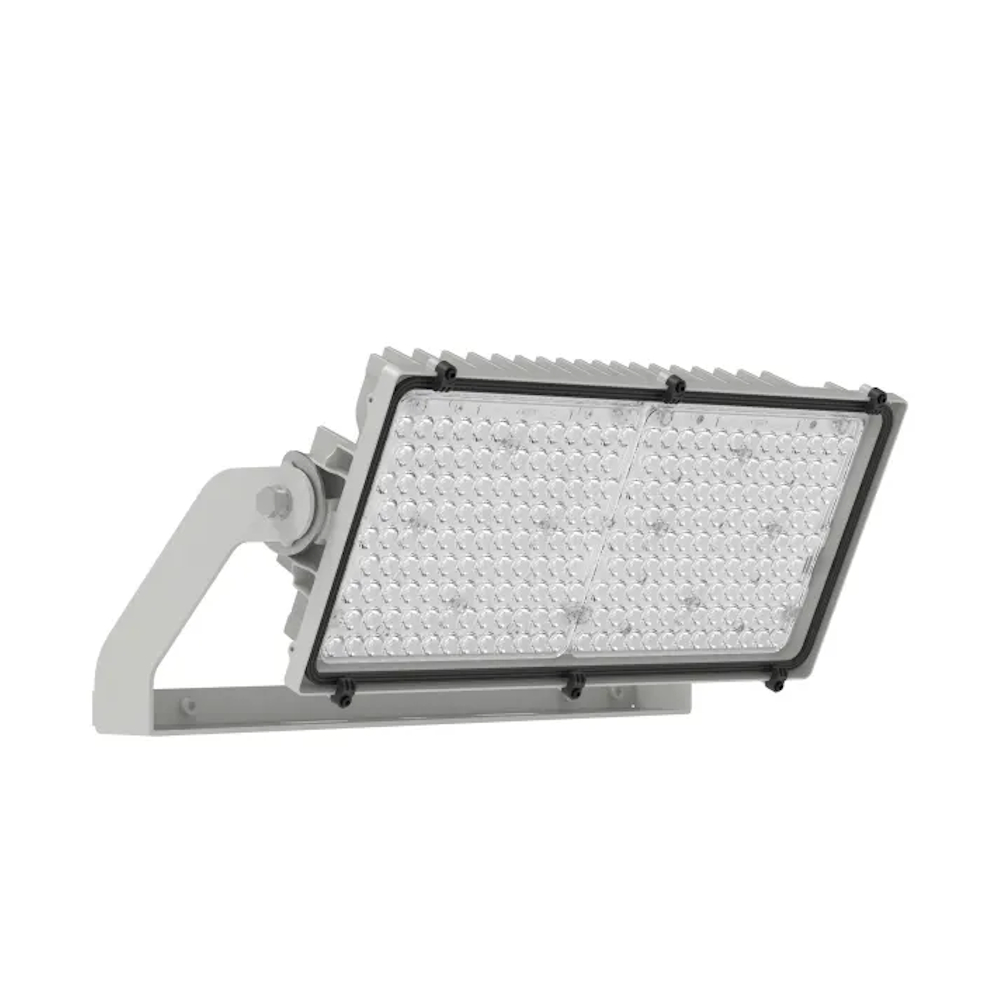

Floodlight Max 857 R45 Symmetric 3Poles 600W 330V 76400lm 5700K IP66 Grey Ledvance

Description

Ledvance Floodlight Max Gen 2 is an extremely robust floodlight with high power for lighting large areas such as parking lots, industries, ports, stadiums and sports facilities. NOTE! Operation only with Floodlight Max Gen 2 power supply. Power supply is not included and must be ordered separately. Luminous flux up to 270,000 lm and high efficiency of up to 160 lm/W. Available in the light colors 3000K, 4000K and 5700K and 4 different beam angles; rotationally symmetrical 10°, 25°, 45° and asymmetrical 65°x120°. Flexible driver that can be installed up to 150 m away to reduce the weight of the mast. Modular LED modules, individually rotatable and adjustable direction of light. Low flicker (<1%), perfect for camera use. Climate membrane protects against water and lets air through. Pre-assembled cables for quick connection to driver or FL Max Connector Box. For extreme temperatures: –40 °C to +50 °C (outdoors), up to +40 °C (indoors). Robust and weatherproof with IP66 / IK08 and C5-M corrosion protection for harsh environments. Ball-proof and tested according to DIN 18032-32, making it ideal for sports halls. Lifespan up to 115,000 hours.

Technical Information

• Nominal luminous flux: 76400 lm
• Beam angle: 40-80° (wide beam)
• Protection class (IP): IP66
• Color temperature: 5700 K
• Suitable for overhead mounting: Yes
• Adjustability: Swivelling
• Adapted for VDU work (EN 12464-1): No
• Connectable conductor cross-section: 1.5 mm²
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Bluetooth controlled: No
• CLO: No
• No dimmer function: Yes
• Dimming 0-10 V: No
• Dimming 1-10 V: Yes
• Dimming trailing edge (phasecut-off): No
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: Yes
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Suitable for built-in/recessed mounting: No
• Suitable for clamp mounting: No
• Suitable for low-voltage systems: No
• Suitable for pillar/floor mounting: Yes
• Suitable for pendant suspension: Yes
• Suitable for track mounting: No
• Suitable for ceiling mounting: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Conductor cross-section: 1.5 mm²
• Light color: Other
• Luminous flux: 76400 lm
• Light distributor/diffuser: Reflector
• Light distribution: Symmetrical
• Light source: LED (replaceable)
• Luminous efficiency: 125 lm/W
• Light socket: Direct
• Rated voltage: 0 - 3 V
• Rated current: 1250 - 3000 mA
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Dimmable: No
• Driver: Electronic driver
• Driver included: No
• Power factor: 0.94
• Color of light adjustable: No
• Color fastness (McAdam ellipse): SDCM5
• Color rendering index (CRI/Ra): 80-89
• Photobiological safety (EN 62471): RG2
• Glow wire test (IEC 60695-2-11): 650 °C - 30 s
• Contains product according to 2019/2020/EU: Yes
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Adjustment luminous flux: No
• Protection class (IP) rear: IP66
• Protection class (IP) front: IP66
• Maximum number of luminaires per B16 circuit breaker: 2
• Maximum number of luminaires per C16 circuit breaker: 3
• Max. system power: 600 W
• Nominal rated voltage: 330 V
• With light source: Yes
• With light sensor: No
• With presence detector: No
• With motion sensor: No
• With IFTTT support: No
• Emergency power supply system: None
• Nominal service life L70/B50 at 25 °C: 115000 h
• Nominal ambient temperature according to IEC 62722-2-1: -40 - 50 °C
• Nominal luminous flux (IEC 62722-2-1): 76400 - 76400 lm
• Insulation cover: No
• Reflector: None
• Reflector color: White
• Protection class (IEC 61140): I
• Impact resistance (IK): IK08
• Voltage type: DC
• Connection type: Push-in terminal (quick terminal)
• Type of wiring: Termination
• Replaceable driver: No

Specifications

• Color Housing/enclosure/frame: Grey
• Brushed surface: No
• Surface treatment: Powder coated
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Glass (transparent)
• Width: 250 mm
• Length: 589 mm
• Height/depth: 95 mm
