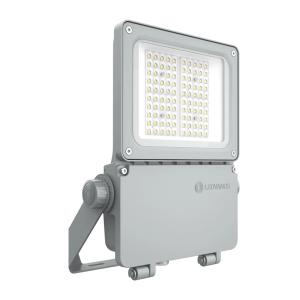

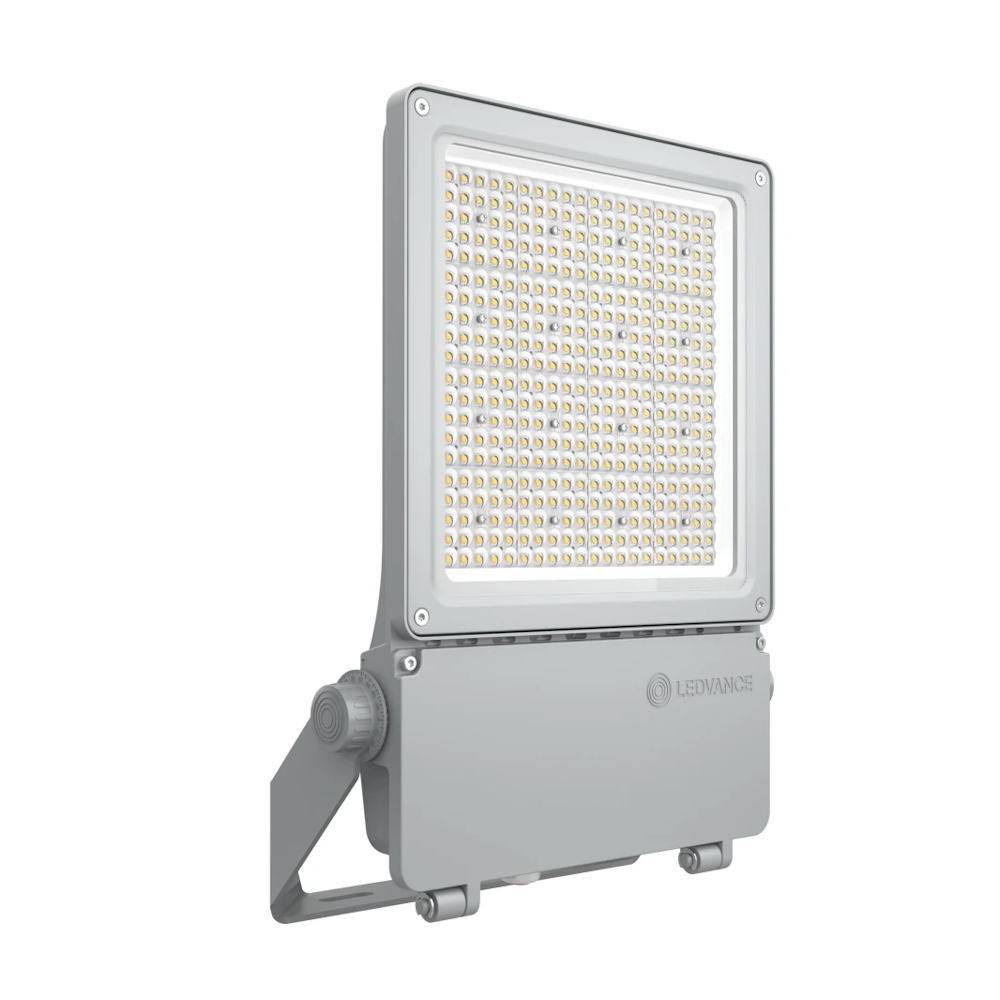

Floodlight Flex 840 Asymmetric 45°x140° 3Poles 27500lm 4000K 180W 220-240V IP66 Grey Ledvance

Description

Ledvance Floodlight Flex Asymmetric 45X140 are robust and durable floodlights with a very wide beam angle of 45°x140°, asymmetric light distribution for area lighting. Available as on/off or with DALI D4i for light control and smart city applications. High efficiency up to 161 lm/W. The on/off version has a multi-lumen function and can be easily adjusted between four different effects. Available in 3000K and 4000K color temperatures and a 2200K version. Corrosion resistance C5 based on 1500 hours of salt spray testing. High surge protection up to 10 kV (L/N-PE), 6 kV (L-N). Long life L70/B50 up to 120,000 hours (at 25 °C). Luminous flux up to 70,000 lm. Withstands ambient temperatures of -30° to 50°C. Three cable glands for flexible use and easy connection between luminaires. Daisy chain possible. Integrated ventilation to prevent condensation inside the luminaire. Easy angle adjustment by locking every 2.5°. Easy luminaire upgrade thanks to replaceable LED driver. Supplied with jumper.

Technical Information

• Nominal luminous flux: 27500 lm
• Beam angle: 40-80° (wide beam)
• Protection class (IP): IP66
• Color temperature: 4000 - 4000 K
• Suitable for overhead mounting: Yes
• Adjustability: Swivelling
• Adapted for VDU work (EN 12464-1): No
• Connectable conductor cross-section: 1.5 - 1.5 mm²
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): Yes
• Bluetooth controlled: No
• CLO: No
• No dimmer function: Yes
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming front edge (phasecut-on): No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Adjustable light distribution: No
• Adjustment of light flow: Modes
• Protection class (IP) front: IP66
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Suitable for built-in/recessed installation: No
• Suitable for clamp installation: No
• Suitable for low-voltage systems: No
• Suitable for column/floor installation: Yes
• Suitable for pendant suspension: No
• Suitable for track installation: No
• Suitable for ceiling installation: Yes
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Conductor cross-section: 1.5 mm²
• Luminous flux: 27500 - 27500 lm
• Light distributor/diffuser: Focus lens
• Light distribution: Asymmetric
• Light source: LED (replaceable)
• Luminous efficiency: 153 - 159 lm/W
• Luminous efficiency: 153 lm/W
• Light outlet: Direct
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Dimmable: No
• Driver: Electronic driver
• Driver included: Yes
• Power factor: 0.9
• Energy efficiency class light source (EU 2019/2015): C
• Color of light adjustable: No
• Color fastness (McAdam ellipse): SDCM5
• Color rendering index (CRI/Ra): 80-89
• Photobiological safety (EN 62471): RG1
• Glowing wire test (IEC 60695-2-11): 850 °C - 30 s
• Installation diameter: 0 mm
• Contains product according to 2019/2020/EU: Yes
• Integrated emergency power supply: No
• Rated voltage: 220 - 240 V
• Rated current: 798 - 798 mA
• Maximum number of luminaires per B16 circuit breaker: 7
• Maximum number of luminaires per C16 circuit breaker: 12
• Max. system power: 180 W
• With light source: Yes
• With light sensor: No
• With motion sensor: No
• With IFTTT support: No
• Nominal lifetime L70/B50 at 25 °C: 120000 h
• Nominal ambient temperature according to IEC 62722-2-1: -30 - 50 °C
• Nominal luminous flux (IEC 62722-2-1): 15700 - 27500 lm
• Cover with insulation: No
• Protection class (IEC 61140): I
• Impact resistance (IK): IK08
• Voltage type: AC
• Connection type: Push-in terminal (quick terminal)
• Type of wiring: Suitable for through-wiring
• Replaceable driver: Yes

Specifications

• Light color: White
• Color housing/enclosure/frame: Grey
• Surface treatment: Powder coated
• Brushed surface: No
• Material Housing/enclosure/frame: Aluminum
• Cover Material: Glass (transparent)
• Width: 361 mm
• Length: 552 mm
• Height/depth: 68 mm
