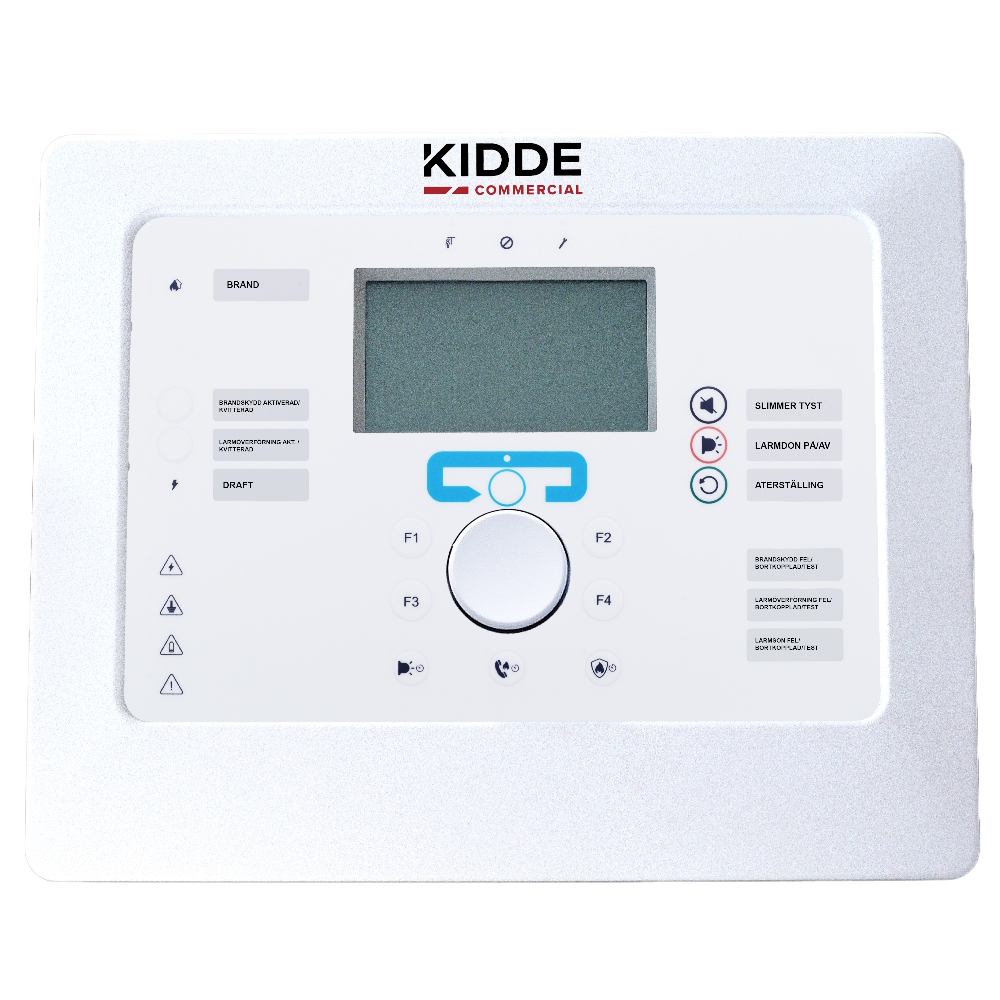

Fire Alarm Panel 1.5/3.15A 24VDC IP30 Kidde Commercial

Description

The fire alarm panel is delivered in local language with an already mounted network card (no network card required). Apart from the fact that they do not have any addressable loops and corresponding programmable outputs, the setup is similar to a normal fire control panel. It has 2 conventional relay outputs, 2 supervised inputs, 1 RS232, 2 USB and 1 Ethernet port as standard. The repeater does not have a mains power supply unit, but it allows redundant 24VDC power connections. For future use and expansions, a repeater bus is also built in. The compact repeater is very easy to mount via DIN rail mounting options.

Specifications

• User Interface: Scandinavian Interface
• Network Size (Nodes): up to 64
• Power Supply Type: VAC
• Operating Voltage: 110 / 240 VAC (+10%/-15%), Cable Type: 2 x 1.5 mm², 30 VDC (Maximum), 24 VDC (Nominal), 20 VDC (Minimum),
• Current Consumption: Nom. 0.6 / 1.3 A, Max. 1.5 / 3.15 A, 190 mA at 24 VDC (Typical)
• Cable Type: Recommended 2 core 1.5 mm² twisted pair
• Programmable: 2
• Termination: 15 kohm
• Standby Battery Capacity: Max. 2 x 12 V, 18 Ah (use supplied cables)
• Charging: 27.3 V at 20ºC – 36 mV/ºC
• Low battery warning threshold: 23.6 VDC ± 1% at 25ºC
• Batteries supported in residential: Max. 2 x 12 V, 18 Ah (use supplied cables)
• Form factor: Compact
• Physical dimensions (W x H x D): 300 x 240 x 61 mm
• Color: White (RAL 9003)
• Mounting type: Surface mount
• Cable entries: 18 (20 mm) / 2 (20 mm) / 2 removable plates (top / bottom / back)
• Material: Steel (painted)
• Operating temperature: -5 to +40°C
• Storage temperature: -20 to +50°C
• Relative humidity: 10 to 95% noncondensing
• Environment: Indoor
• IP rating: IP30: for indoor use only
• Exemption: CPD, RoHS, WEEE
• Certification: EN54-13, EN54-2, EN54-21, EN54-4
• Relay type: Potential free, NO/NC/C
• Maximum relay output current: 2 A / 30 VDC
• ROHS: Yes
• REACH: No
• Food contact material: No
