Filling Valve BA4180 15mm Clamping Ring Beulco

Description

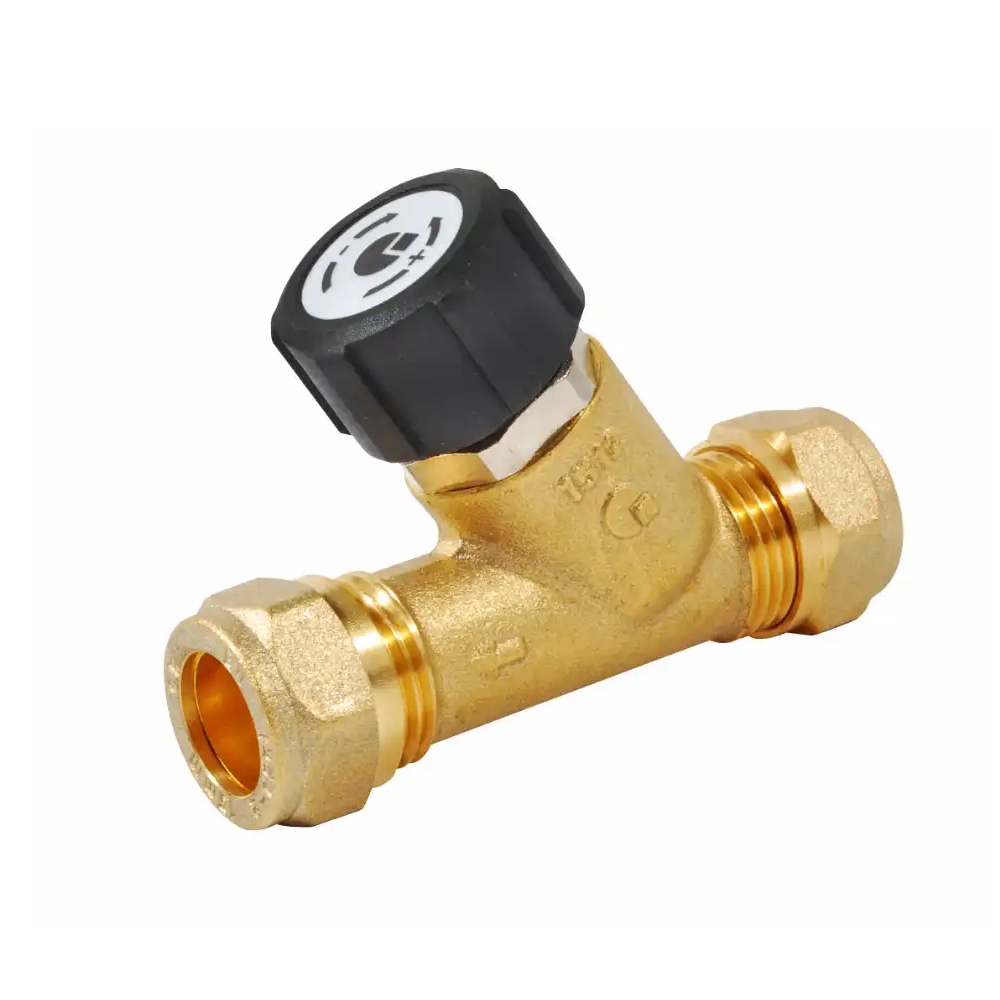

Metal valve designed for filling and shutting off in heating systems. It has clamping ring connections for 15mm pipes and a valve body made of dezincification-resistant brass for good durability. The valve is equipped with a built-in check valve that prevents backflow and is designed to withstand a maximum working pressure of 10 bar and a continuous medium temperature of up to 90 °C. It is primarily used to fill water in heating systems in a safe and controlled manner.

Specifications

• Dimension: 15mm
• Size (Length): 80mm
• Pressure/Flow/Temp: PN10
• Function: heat test system
• Design: clamping ring
• Color: Yellow
• Material: dezincification resistant brass
• Surface protection: Untreated
• Dimension connection 1: DN 15
• Outer pipe diameter connection 1: 15 mm
