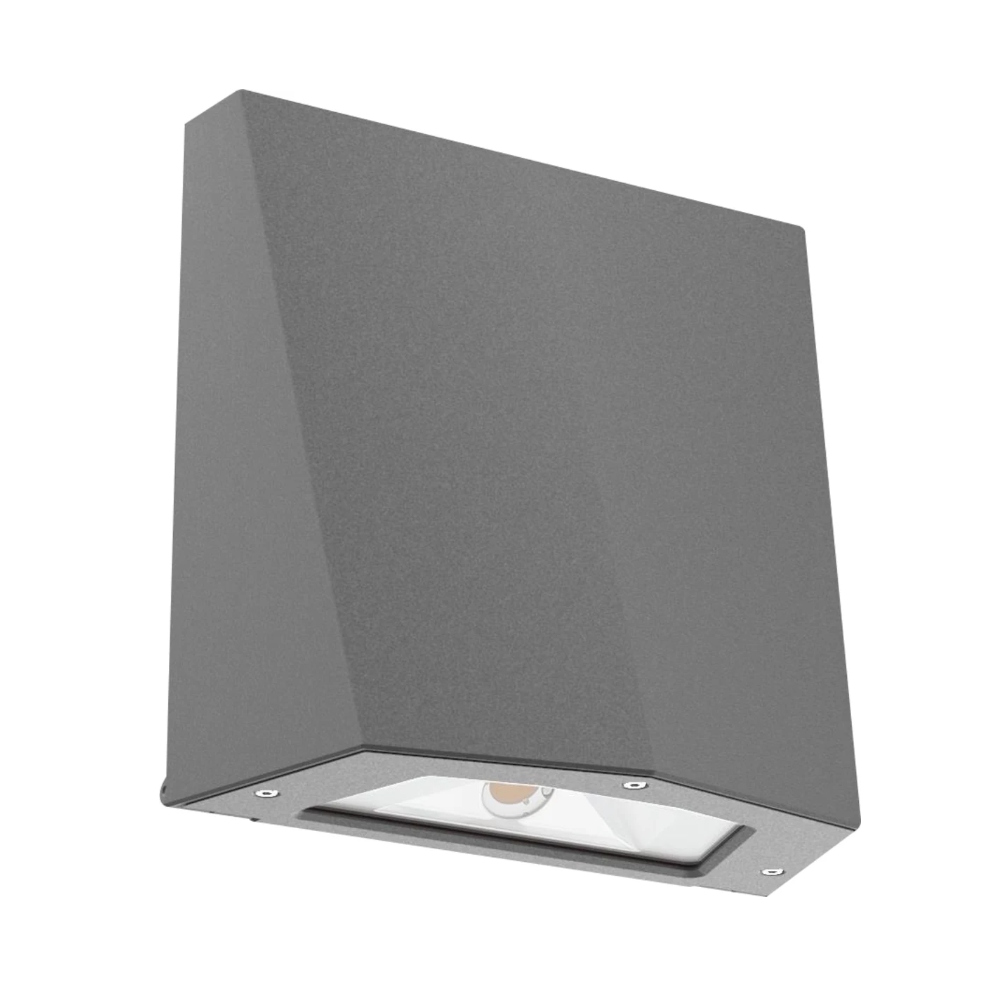

Facade Arm Shield1 3Poles 13-27W 220-240V 1479/2161/3072lm 4000K IP66 White Scan Interlight

Description

Facade luminaire LED for wall mounting for indoor and outdoor use, consisting of: Die-cast aluminum, powder-coated polyester ISO 9227. Highly resistant to UV rays and weathering ISO 9227. Diffuser in flat safety glass. Reflector aluminum with high efficiency and protective surface treatment. Sealing in silicone. High-power LED with high luminous flux of the latest model. Control of cooling that guarantees the function and durability of the LED lamp. Version for multiple power levels equipped with Dip Switch for the selection of three power levels, adjustable during the installation phase. Available versions with On-Off driver and dimmer connected DALI. The Extreme versions are suitable for extreme conditions, -40°C. Twilight sensors C version available on request, equipped with sensor for automatic switching

Technical Information

• Colour temperature: 4000 - 4000 K
• Nominal luminous flux: 3072 lm
• Protection class (IEC 61140): I
• Impact resistance (IK): IK07
• Light distribution: Asymmetrical
• Suitable for VDU work (EN 12464-1): No
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Luminous flux maintenance at average lifetime 35,000 h (25 °C
• ambient): 96.2 %
• Luminous flux maintenance at average lifetime 50,000 h (25 °C
• ambient): 94.8 %
• Luminous flux maintenance at average lifetime 75,000 h (25 °C
• ambient): 92.6 %
• Bluetooth controlled: No
• CLO: No
• No dimmer function: Yes
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• Dimming depending on driver: No
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Distortion (THD): 20
• Driver: LED driver (constant current)
• Driver included: Yes
• Power factor: 0.9
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Energy efficiency class light source (EU 2019/2015): D
• Color of light adjustable: No
• Color fastness (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Photobiological safety (EN 62471): RG1
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Luminous flow adjustment: Modes
• Protection class (IP): IP66
• Protection class (IP) front: IP66
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Suitable for built-in/recessed mounting: No
• Suitable for lamp power: 13 - 27 W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp mounting: No
• Suitable for ceiling mounting: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor cross-section: 2.5 mm²
• Light distributor/diffuser: Reflector
• Light source: LED (not replaceable)
• Light beam angle: 40-80° (wide beam)
• Luminous efficiency: 114 lm/W
• Luminous efficiency: 114 - 136 lm/W
• Light socket: Direct
• Rated voltage: 220 - 240 V
• Maximum number of luminaires per circuit breaker B16: 13
• Maximum number of luminaires per circuit breaker C16: 21
• Max. system power: 27 W
• With light source: Yes
• With light sensor: No
• With air hole: No
• With motion sensor: No
• With IFTTT support: No
• Nominal lifetime L80/B10 at 25 °C: 220000 h
• Nominal ambient temperature according to IEC 62722-2-1: -20 - 25 °C
• Nominal luminous flux (IEC 62722-2-1): 1773 - 3072 lm
• Cover with insulation: No
• Grid design: None
• Voltage type: AC
• Type of wiring: Suitable for through-wiring
• Replaceable driver: Yes

Specifications

• Light color: White
• Surface protection housing/enclosure/frame: Powder coated
• Color housing/enclosure/frame: Anthracite
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Glass (transparent)
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Length: 220 mm
• Height/Depth: 230 mm
• Width: 114 mm
