Exterior Wall Light Flex S 3 Poles 20W 220-240V 1300-2600lm 3000-4000K IP66 Black Exaktor

Description

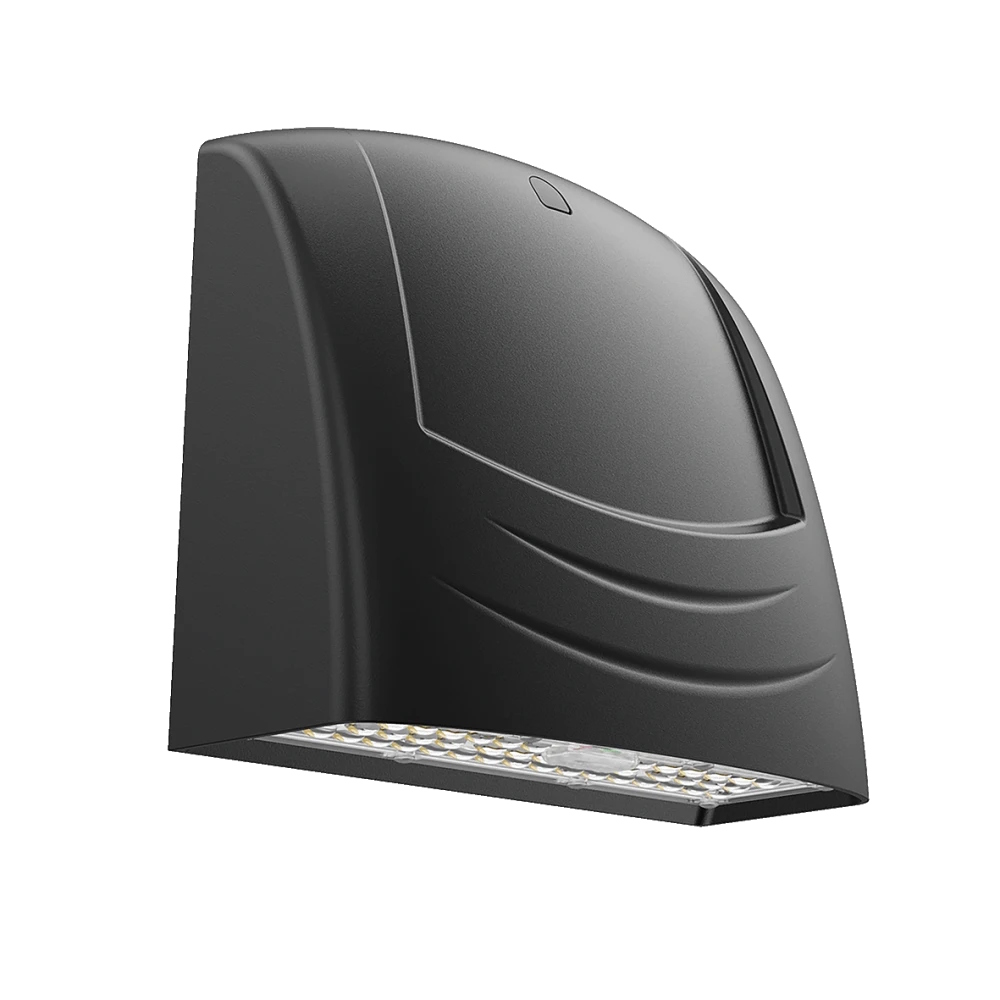

Exterior Wall S is a black, stylish and functional facade light in die-cast aluminum for industrial buildings and other properties, for example. The light has an asymmetric light pattern with pleasant light and effective light distribution. On the back of the body is a gasket that reduces the pressure from the light fixture against the wall, it also prevents water from penetrating the light fixture when cable entry is from the back. The light fixture has a single entry from the top and sides, and double from the back / bottom. Exterior Wall S Flex also has a breathing membrane that prevents condensation inside the light fixture and is easy to clean if necessary.

Technical Information

• Color temperature: 3000-4000K
• Protection class (IEC 61140): I
• Impact resistance (IK): IK10
• Light distribution: Asymmetrical
• Number of poles: 3
• Luminous flux maintained at average lifetime 50,000 h (25 °C
• ambient): 92 %
• Luminous flux maintained at average lifetime 75,000 h (25 °C
• ambient): 86 %
• Bluetooth controlled: No
• Dimmable: No
• Driver: LED driver (constant current)
• Driver included: Yes
• Power factor: 0.9
• Energy efficiency class light source (EU 2019/2015): D
• Color of light adjustable: Modes
• Color fastness (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Flicker value Pst LM: 1
• Adjustable light distribution: No
• Adjustment of light flux: Modes
• Suitable for built-in/recessed installation: No
• Suitable for pendant suspension: No
• Suitable for ramp installation: No
• Suitable for ceiling installation: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor area: 2.5 mm²
• Light distributor/diffuser: Focus lens
• Light source: LED (replaceable)
• Light distribution angle: 40-80° (wide beam)
• Luminous efficiency: 130 - 140 lm/W
• Light outlet: Direct
• Rated voltage: 220-240V
• Rated current: 80 - 130 mA
• Maximum number of luminaires per circuit breaker B16: 76
• Maximum number of luminaires per circuit breaker C16: 95
• Max. system power: 20W
• With light source: Yes
• With motion sensor: No
• Nominal service life L70/B50 at 25 °C: 100000 h
• Nominal ambient temperature according to IEC 62722-2-1: -30 - 45 °C
• Nominal luminous flux (IEC 62722-2-1): 1400 - 2590 lm
• Grid design: None
• Voltage type: AC
• Strobe power value SVM: 0.4
• Connection type: Plug-in terminal (quick terminal)
• Type of wiring: Suitable for through-wiring
• Replaceable driver: Yes

Specifications

• Light color: White
• Material housing/enclosure/frame: Aluminum
• Material shade/cover: Without shade/cover
• Surface protection housing/enclosure/frame: Powder coated
• Colour housing/enclosure/frame: Black
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Length: 110 mm
• Width: 200 mm
• Height/Depth: 180 mm
