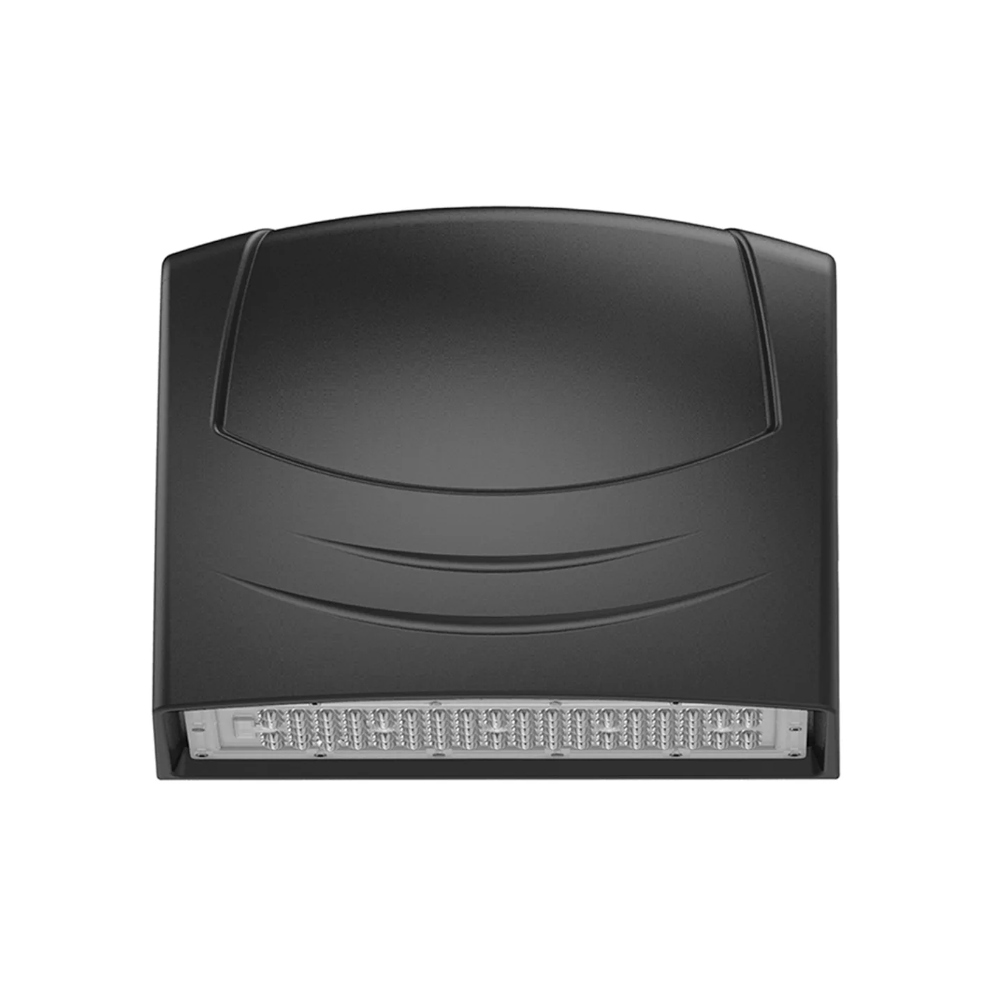

Exterior Wall Facade Lighting Arm 3Poles 40W 100-240V 5200lm 4000K IP65 Black Exaktor

Description

Facade lighting intended for outdoor installation. 40 watts. Luminaire lumen 5200 lm. SDCM 5. RA >80. Service life L80B50, 100,000h Ta 25°C. Including LED light source 840. Suitable for installation on e.g. walls or industrial facades. Ambient temperature -30 to +50 °C. Driver equipped with surge protection 6 kV. exWall is IK 08 and meets the requirements for D marking.

Technical Information

• Color temperature: 4000 - 4000K
• Nominal luminous flux: 5200lm
• Protection class (IEC 61140): I
• Impact resistance: IK10
• Light distribution: Asymmetrical
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): Yes
• Bluetooth controlled: No
• CLO: No
• No dimmer function: Yes
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• Dimming depending on driver: No
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Push button dimming: No
• Mains voltage modulation dimming: No
• Potentiometer dimming (integrated): No
• Programmable dimming: No
• RF dimming: No
• Sine wave dimming (Sine Wave Reduction): No
• Manufacturer specific dimming: No
• Zigbee dimming: No
• Dimmable: No
• Driver: LED driver (constant current)
• Driver included: Yes
• Power factor: 0.88
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Color of light adjustable: No
• Color constancy (McAdam ellipse): SDCM5
• Color rendering index (CRI/Ra): 80-89
• Adjustable light distribution: No
• Luminous flux adjustment: No
• Protection class (IP): IP65
• Suitable for built-in/recessed mounting: No
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp mounting: No
• Suitable for ceiling mounting: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor cross-section: 1.5 mm²
• Light distributor/diffuser: Focus lens
• Light source: LED (replaceable)
• Light distribution angle: 40-80° (wide beam)
• Luminous efficiency: 130 lm/W
• Luminous efficiency: 130 - 130 lm/W
• Light outlet: Direct
• Rated voltage: 100-240V
• Maximum number of luminaires per circuit breaker B16: 23
• Maximum number of luminaires per circuit breaker C16: 36
• Max. system power: 40W
• With light source: Yes
• With light sensor: No
• With air hole: No
• With motion sensor: No
• Nominal service life L70/B50 at 25 °C: 100000 h
• Nominal service life L80/B50 at 25 °C: 100000 h
• Nominal ambient temperature according to IEC 62722-2-1: -30 - 50 °C
• Nominal luminous flux (IEC 62722-2-1): 5200 - 5200 lm
• Cover with insulation: No
• Grid design: None
• Voltage type: AC
• Connection type: Push-in terminal (quick terminal)
• Type of wiring: Suitable for through-wiring
• Replaceable driver: Yes

Specifications

• Light color: White
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Without dome/cover
• Surface protection housing/enclosure/frame: Powder coated
• Color housing/enclosure/frame: Black
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Length: 296mm
• Height/depth: 150mm
• Width: 223mm
