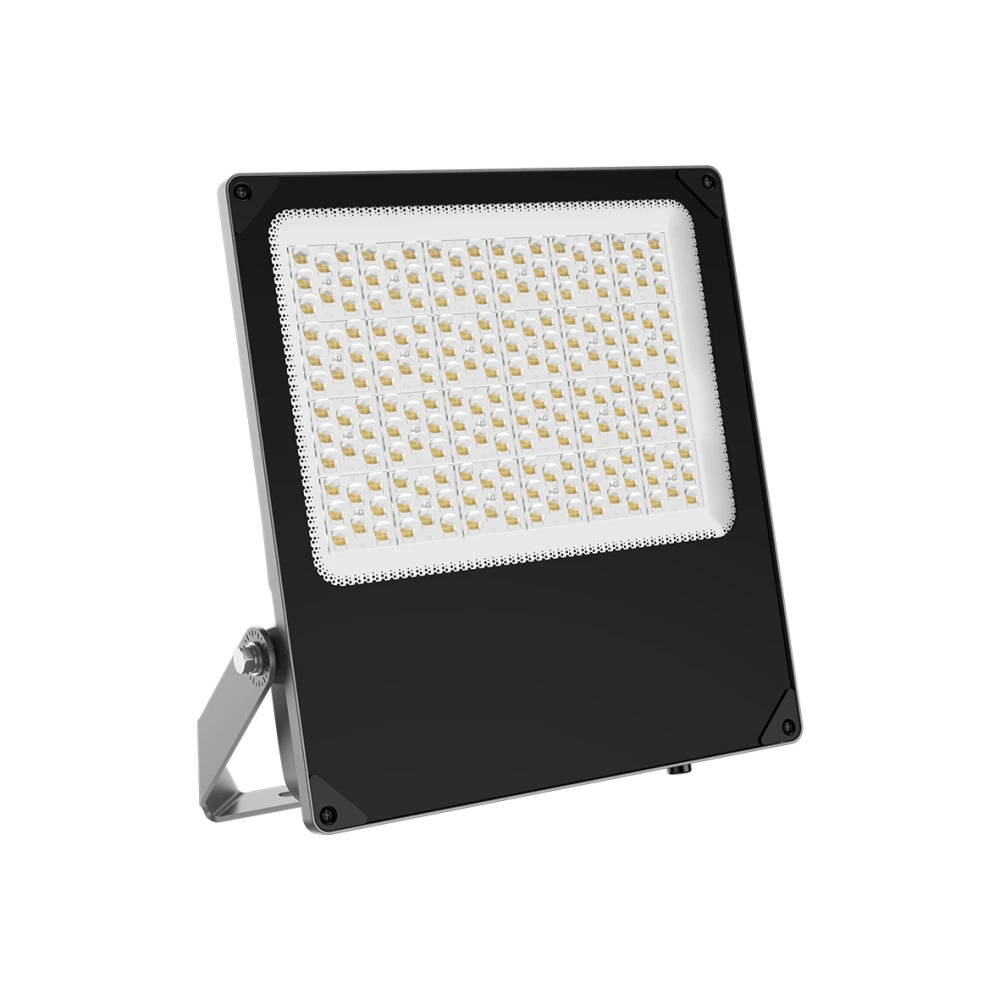

Exterior Floodlight Asymmetric G2 XL 2CCT 240W 240V 16800-35100lm 3000K/4000K IP66 Black Exaktor

Description

Exterior Flood G2 is available in two sizes, both with asymmetric light pattern and CRI>80. The luminaire has adjustable color temperature (3000K / 4000K) and power in three positions; 50% / 75% / 100%. It is particularly suitable for mounting on a wall or pole at parking lots, loading docks, playgrounds, schoolyards and facades. Exterior Flood G2 is made of cast aluminum and has protection class IP65 and impact resistance IK08. The luminaire is specially surface-treated to achieve corrosion class C5, making it suitable for coastal installations. The luminaire can also withstand high and low ambient temperatures and can be installed in environments between -30°C and +50°C. The luminaire is equipped with 6kV surge protection to protect against lightning strikes, and is supplied with an adjustable bracket and 1.5m H07-RN-F rubber cable.

Technical Information

• Nominal luminous flux: 16800-35100lm
• Max. System power: 240W
• Light source: Replaceable LED
• Light source included: Yes
• Minimum color temperature: 3000K
• Maximum color temperature: 4000K
• Color rendering index CRI: 80-89
• Color consistency: SDCM5
• Beam angle: 47°
• Light distribution: Asymmetric
• Light distributor: Diffuser lens/optics/panel
• Light output: Direct
• Flicker value Pst LM: 1
• Nominal lifetime L70/B50 at 25 °C (h): 100000.00
• Maximum nominal voltage: 240V
• Voltage type: AC
• Frequency: 50Hz
• Controller type: LED driver current-controlled
• With driver: Yes
• Power factor: 0.9
• Operation via Bluetooth: No
• With motion sensor: False
• Protection class: IP66
• Protection class: I
• Impact resistance: IK08
• Suitable for wall mounting: Yes
• Min. ambient temperature: -30
• Max. ambient temperature: 50
• Cover with insulation possible: Yes
• Type of wiring: Termination

Specifications

• Housing material: Aluminum
• Housing color: Black
• Material, lid: Transparent Glass
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Length: 504mm
• Width: 434mm
• Height/depth: 63mm
