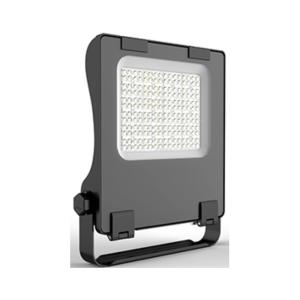

Exterior Floodlight Arm AS55 840 3Poles 40W 100-240V 4000K IP65 Black Exaktor

Description

Floodlight for outdoor use. 40 watts. Luminaire lumen 5400 lm. SDCM 5. RA >80. Service life L80B50, 100,000h Ta 25°C. LED light source 840. Suitable for wall, on pole, parking, small and medium-sized leisure arenas, loading docks etc. Ambient temp. -30 to +50 °C. IP65. Driver equipped with overvoltage protection 6 kV. exFlood is IK 08. Incl. mounted installation cable 3x1mm², 1.5 meters.

Technical Information

• Nominal luminous flux: 0 lm
• Beam angle: 40-80° (wide beam)
• Protection class (IP): IP65
• Type of light control: Not dimmable
• Color temperature: 4000 - 4000 K
• Suitable for overhead mounting: Yes
• Adjustability: Rotatable/swivelable
• Adapted for VDU work (EN 12464-1): No
• Connectable conductor cross-section: 1 - 1 mm²
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): Yes
• Brushed surface: No
• No dimmer function: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• Dimming depending on driver: No
• Dimming DALI: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Driver: LED driver (constant current)
• Driver included: Yes
• Power factor: 0.99
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Color fastness (McAdam ellipse): SDCM5
• Color rendering index (CRI/Ra): 80-89
• Lamp holder/socket: None
• Suitable for built-in/recessed mounting: No
• Suitable for clamp mounting: Yes
• Suitable for low-voltage systems: Yes
• Suitable for lamp power: 37.5 - 37.5 W
• Suitable for pillar/floor mounting: Yes
• Suitable for pendant suspension: No
• Suitable for track mounting: No
• Suitable for ceiling mounting: No
• Suitable for surface mounting: No
• Suitable for wall mounting: Yes
• LED nominal current at constant current: 750 - 750 mA
• Conductor cross-section: 1.5 mm²
• Luminous flux: 5400 - 5400 lm
• Light distributor/diffuser: Diffuser lens/optics/panel
• Light distribution: Asymmetrical
• Light source: LED (not replaceable)
• Luminous efficiency: 135 lm/W
• Light outlet: Direct
• Rated voltage: 100 - 240 V
• Max. system power: 40 W
• With light source: Yes
• With light sensor: No
• With motion sensor: No
• Nominal lifetime L70/B50 at 25 °C: 100000 h
• Nominal lifetime L80/B50 at 25 °C: 100000 h
• Nominal ambient temperature according to IEC 62722-2-1: -30 - 45 °C
• Cover with insulation: Yes
• Reflector: None
• Protection class (IEC 61140): I
• Impact resistance (IK): IK08
• Voltage type: AC
• Type of wiring: Termination
• Replaceable driver: Yes

Specifications

• Light color: White
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Glass (transparent)
• Color housing/enclosure/frame: Black
• Surface treatment: Powder coated
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Installation diameter: 0 mm
• Length: 359 mm
• Height/depth: 82 mm
• Width: 308 mm
