Enclosure For PV 1kV DC Switch 1MPP IP30 OBO Bettermann

Description

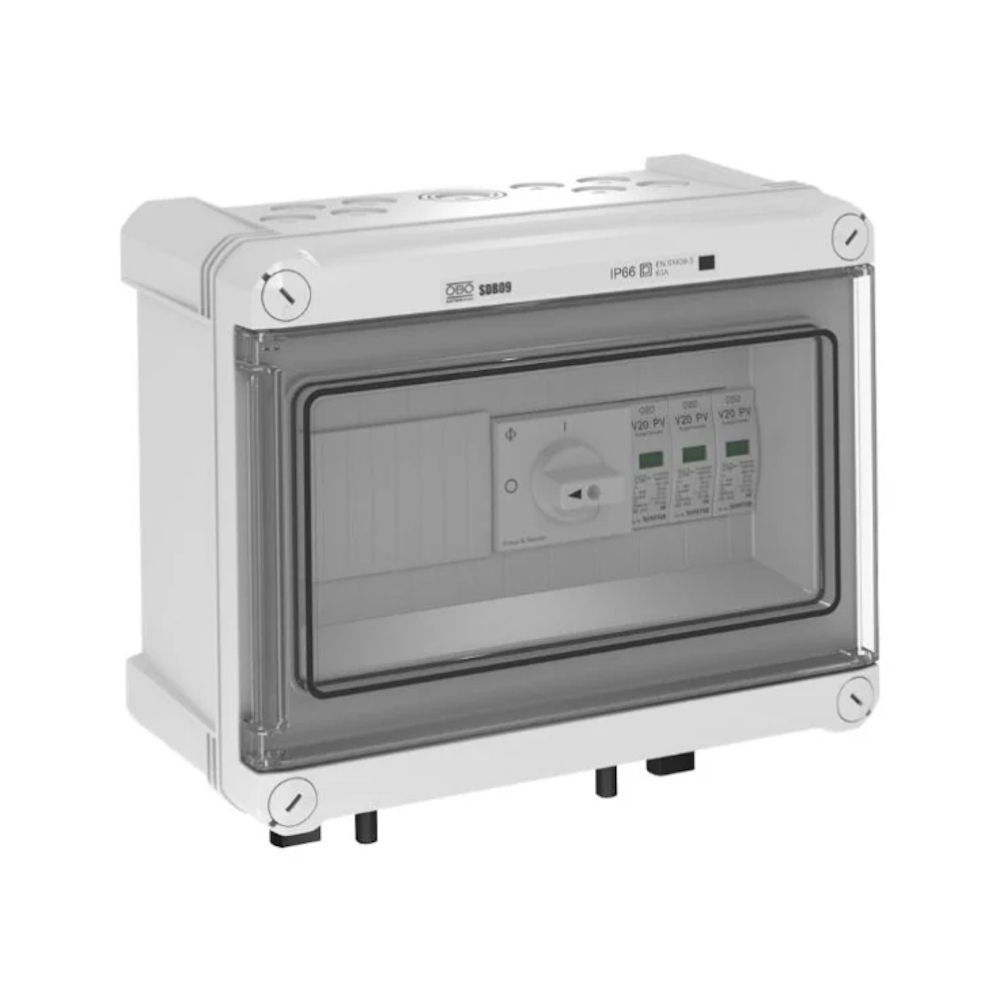

Enclosure IP66 for photovoltaic systems 1000V, DC switch, 1 string, complete with MC4 connectors and external earth screw.

Technical Information

• Nominal discharge surge current (8/20): 20 kA
• Rated voltage AC: 0 V
• Rated voltage DC: 1000 V
• Number of conductors (without earthing): 3
• DIN size: Other
• Built-in spare fuse: Yes
• Enclosure class (IP): IP30
• Short-circuit capacity (Isccr): 20 kA
• Max. continuous voltage AC: 0 V
• Max. continuous voltage DC: 1000 V
• Max. conductor area flexible (fine-wire): 25 mm²
• Max. conductor area rigid (solid, stranded): 35 mm²
• Max. PV voltage: 1000 V
• Max. discharge current (8/20): 40 kA
• With remote contact: No
• Mounting method: Surface mounting
• Signaling at the device: Optical
• Voltage protection level: 4 kV
• Voltage protection level L-N: 4 kV
• Voltage protection level N-PE: 4 kV
• System configuration DC: Yes
• System configuration IT: Yes
• System configuration other: Yes
• System configuration TN: Yes
• System configuration TN-C: Yes
• System configuration TN-C-S: Yes
• System configuration TN-S: Yes
• System configuration TT: Yes
• Test class type 2: Yes

Specifications

• Food Contact Material: No
• REACH: No
• ROHS: Yes
