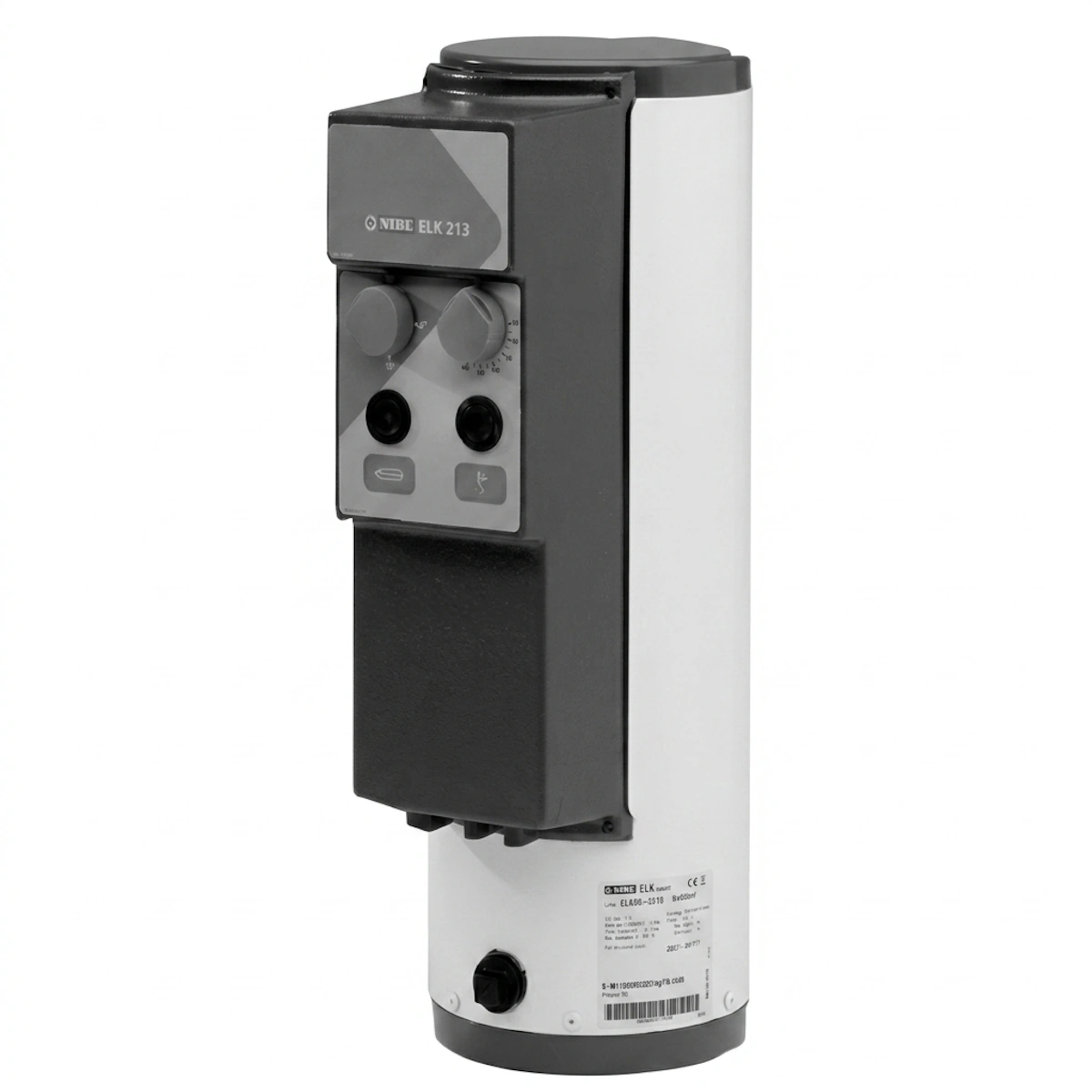

Electric Cassette ELK 213 13kW 400V IP21 Nibe

Description

Nibe ELK 213 is an electric cassette that is primarily intended for mounting on double-jacketed water heaters, existing electric cassette installation or similar in villas or smaller apartment buildings. Nibe ELK 213 is a compact and efficient electric cassette of 7-13 kW for mounting on water heaters. Suitable for villas and apartment buildings with 400V connection. On the electric cassette's control panel there are easy-to-use knobs for the switch and operating thermostat as well as reset buttons for the temperature limiter and fuse. All electrical components are safely placed under the black protective cover made of impact-resistant polystyrene.

Technical Information

• Power: 7-13 kW
• Voltage: 380-400V~ 3-phase + N
• Connection voltage: 400V
• Standard delivery power 9kW
• Boiler water volume: 7 liters
• Hot water water volume: 7 liters
• Protection class (IP): IP21
• Rated supply voltage: 3 x 440 V
• Max. control temperature: 85°C
• Max. heating pressure: 3bar
• Model/Version: Hanging
• Modulating: Yes

Specifications

• Width: 280mm
• Height: 605mm
• Diameter: 200mm
