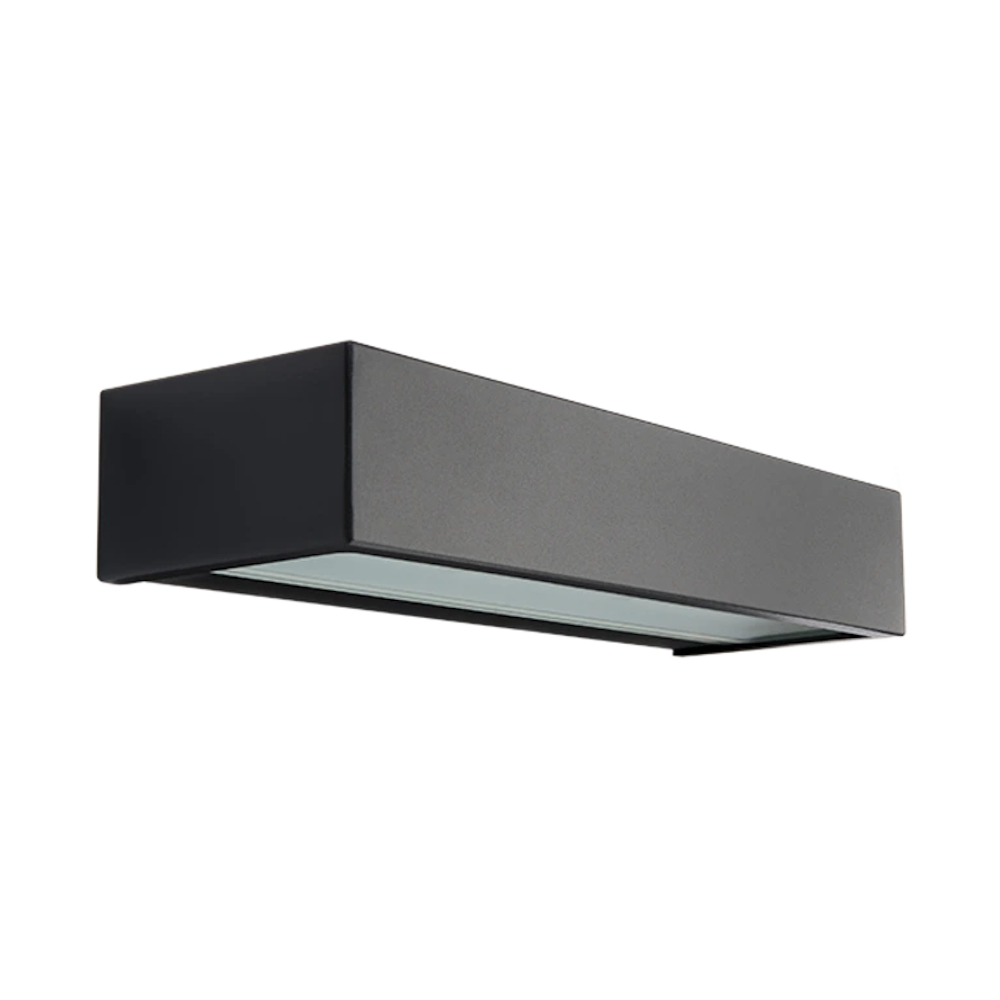

Edge Direct 7W 230V 550lm 2700K IP65 Black SG Armaturen

Description

Rectangular facade luminaire that can be mounted horizontally and vertically both outdoors and indoors. Switchable with two inputs/outputs. Die-cast powder-coated aluminum with glass shade. Corrosion-resistant with a high IP rating, IP65, and impact resistance [vandal-proof] with IK06.

Technical Information

• Color temperature: 2700 - 2700 K
• Nominal luminous flux: 550 lm
• Protection class (IEC 61140): I
• Impact resistance (IK): IK06
• Light distribution: Symmetrical
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 2
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Maintained luminous flux at average lifetime 50,000 hours (25 °C ambient): 90%
• Bluetooth controlled: No
• Failure at average lifetime 50,000 hours (25 °C ambient): 10%
• No dimmer function: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): Yes
• Dimming depending on driver: No
• Dimming DALI: No
• DALI-2 dimming: No
• DIMming DMX: No
• DSI dimming: No
• Front edge dimming (phasecut-on): No
• GPRS dimming: No
• LineSwitch dimming: No
• Touch dimming: No
• Push button dimming: No
• Mains voltage modulation dimming: No
• Potentiometer dimming (integrated): No
• Programmable dimming: No
• RF dimming: No
• Sine wave dimming (Sine Wave Reduction): No
• Manufacturer specific dimming: No
• Zigbee dimming: No
• Driver: Not required
• Driver included: No
• Power factor: 0.95
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Energy efficiency class light source (EU 2019/2015): C
• Energy efficiency class supplied replacement lamps: A+
• Light color adjustable: No
• Color fastness (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Glow wire test (IEC 60695-2-11): None
• Highest energy efficiency class for replacement lamps: A+
• Installation width: 0 mm
• Installation diameter: 0 mm
• Installation height/depth: 0 mm
• Installation length: 0 mm
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Luminous flow adjustment: No
• Protection class (IP): IP65
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Lowest energy efficiency class for replacement lamps: A+
• Suitable for built-in/recessed installation: No
• Suitable for clamp installation: No
• Suitable for lamp power: 7 - 7 W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp installation: Yes
• Suitable for ceiling installation: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor cross-section: 2.5 mm²
• Light source: LED (not replaceable)
• Light distribution angle: >80° (extremely wide beam)
• Luminous efficiency: 79 lm/W
• Luminous efficiency: 79 - 79 lm/W
• Light outlet: Direct
• Rated voltage: 230 - 230 V
• Maximum number of luminaires per circuit breaker B16: 25
• Maximum number of luminaires per circuit breaker C16: 50
• Max. system power: 7 W
• With switch: No
• With light source: Yes
• With light sensor: No
• With air hole: No
• With mounting parts: Yes
• With presence detector: No
• With motion sensor: No
• With IFTTT support: No
• Emergency power supply system: None
• Emergency power monitoring system: None
• Nominal service life L70/B50 at 25 °C: 50000 h
• Nominal service life L80/B10 at 25 °C: 0 h
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Nominal luminous flux (IEC 62722-2-1): 550 - 550 lm
• Insulated cover: No
• Grid design: None
• Voltage type: AC
• Type of wiring: Suitable for through-conduction
• Replaceable driver: No

Specifications

• Light color: White
• Color Housing/enclosure/frame: Black
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Glass (opal)
• Width: 103 mm
• Length: 320 mm
• Height/depth: 60 mm
