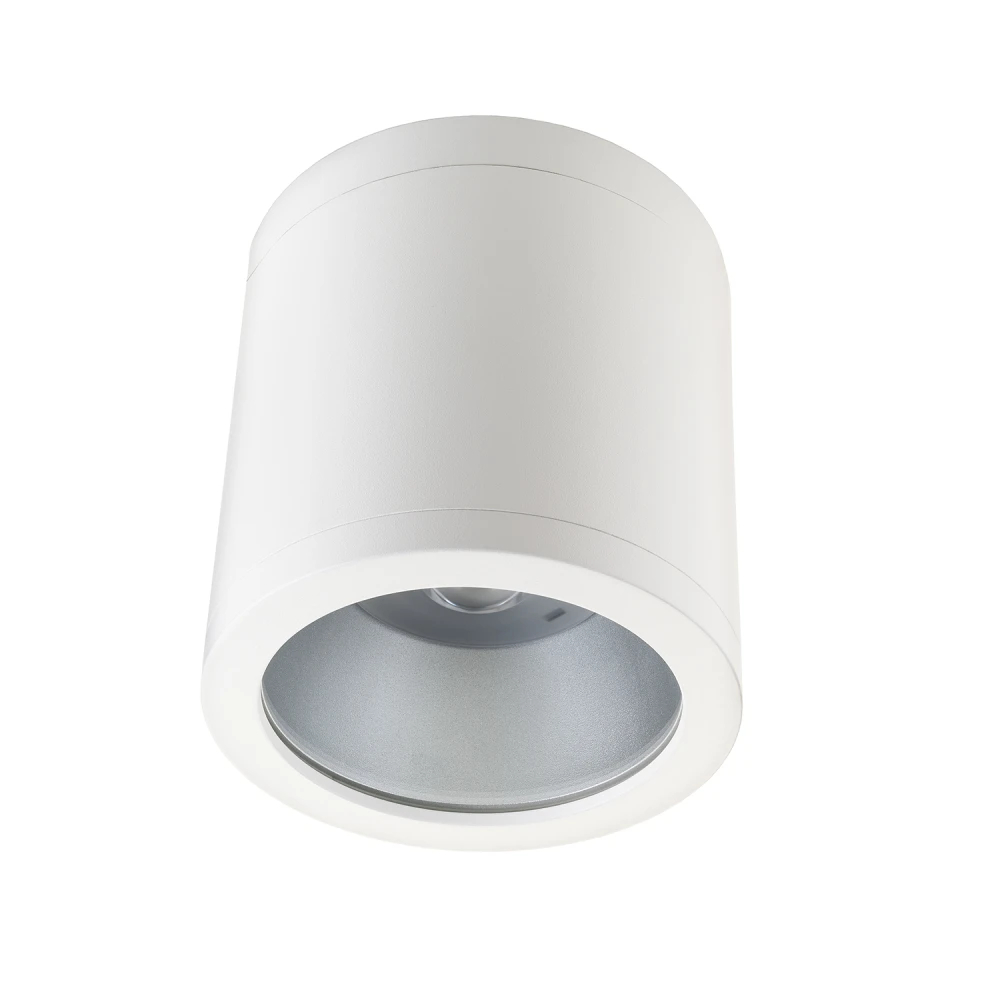

Dow Rax Soft Surface 150 UTP 34W 220-240V 3690lm 4000K IP65 White SG Armaturen

Description

Rax Soft Surface IP65 is a high-performance, surface-mounted downlight for outdoor use or other areas requiring a high IP rating. It offers excellent light control thanks to a combination of an optimized lens and reflector optics. Easy installation with screwless terminal block and quick connection between luminaire and backplate. Lumen value can be set via dipswitch.

Technical Information

• Color temperature: 4000 K
• Nominal luminous flux: 3690 lm
• Protection class (IP) front: IP65
• Adapted for VDU work (EN 12464-1): No
• Connectable conductor area: 2.5 mm²
• Number of poles: 5
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Maintained luminous flux at average lifetime 100,000 hours (25 °C ambient): 90%
• Bluetooth controlled: No
• Failure at average lifetime 100,000 hours (25 °C ambient): 10%
• No dimmer function: Yes
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Front edge dimming (phasecut-on): No
• LineSwitch dimming: No
• Touch dimming: No
• Push button dimming: No
• Mains voltage modulation dimming: No
• Potentiometer dimming (integrated): No
• Programmable dimming: No
• RF dimming: No
• Sine wave dimming (Sine Wave Reduction): No
• Manufacturer specific dimming: No
• Zigbee dimming: No
• Dimmable: No
• Distortion (THD): 0
• Distortion (THD): 0 %
• DoC (CE): Yes
• Driver: LED driver (constant current)
• Driver included: Yes
• Power factor: 100
• Color of light adjustable: No
• Color constancy (McAdam ellipse): SDCM2
• Color rendering index (CRI/Ra): 80-89
• Flicker value Pst LM: 0.02
• Photobiological safety (EN 62471): RG1
• Glow wire test (IEC 60695-2-11): None
• Installation width: 0 mm
• Installation diameter: 0 - 0 mm
• Installation height/depth: 0 mm
• Installation length: 0 mm
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Adjustability: not adjustable
• Luminous flow adjustment: No
• Protection class (IP): IP65
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Lamp holder/socket: None
• Suitable for built-in/recessed installation: Yes
• Suitable for clamp installation: No
• Suitable for low-voltage systems: No
• Suitable for lamp power: 34 W
• Suitable for pillar/floor installation: No
• Suitable for pendant suspension: No
• Suitable for track installation: No
• Suitable for ceiling installation: Yes
• Suitable for traverse installation: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: No
• Suitable number of light sources: 1
• Conductor cross-section: 2.5 mm²
• Luminous flux: 3500 - 3999 lm
• Luminous flux in emergency operation: 0 lm
• Light distributor/diffuser: Reflector
• Light distribution: Symmetrical
• Light source: LED (not replaceable)
• Light beam angle: 40-80° (wide beam)
• Luminous efficiency: 109 lm/W
• Light outlet: Direct
• Rated voltage: 220 - 240 V
• Rated current: 700 - 900 mA
• Maximum number of luminaires per circuit breaker B16: 27
• Maximum number of luminaires per circuit breaker C16: 45
• Max. system power: 34 W
• With light source: Yes
• With light sensor: No
• With presence detector: No
• With motion sensor: No
• With IFTTT support: No
• Emergency power supply system: None
• Emergency monitoring system: None
• Nominal service life L70/B50 at 25 °C: 0 h
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Nominal luminous flux (IEC 62722-2-1): 3690 lm
• Cover with insulation: No
• Reflector: Matt
• Protection class (IEC 61140): I
• Impact resistance (IK): IK06
• Voltage type: AC
• Strobe power valueSVM: 0.01
• Power consumption in emergency mode: 0 W
• Unified Glare Ratio (UGR): 21.8
• Replaceable driver: No

Specifications

• Light color: White
• Color Housing/enclosure/frame: White
• Housing/enclosure/frame material: Aluminum
• Cover/Cover material: Glass (transparent)
• Brushed surface: Yes
• Outer diameter: 175 mm
• Width: 175 mm
• Height/depth: 196 mm
• Length: 175 mm
