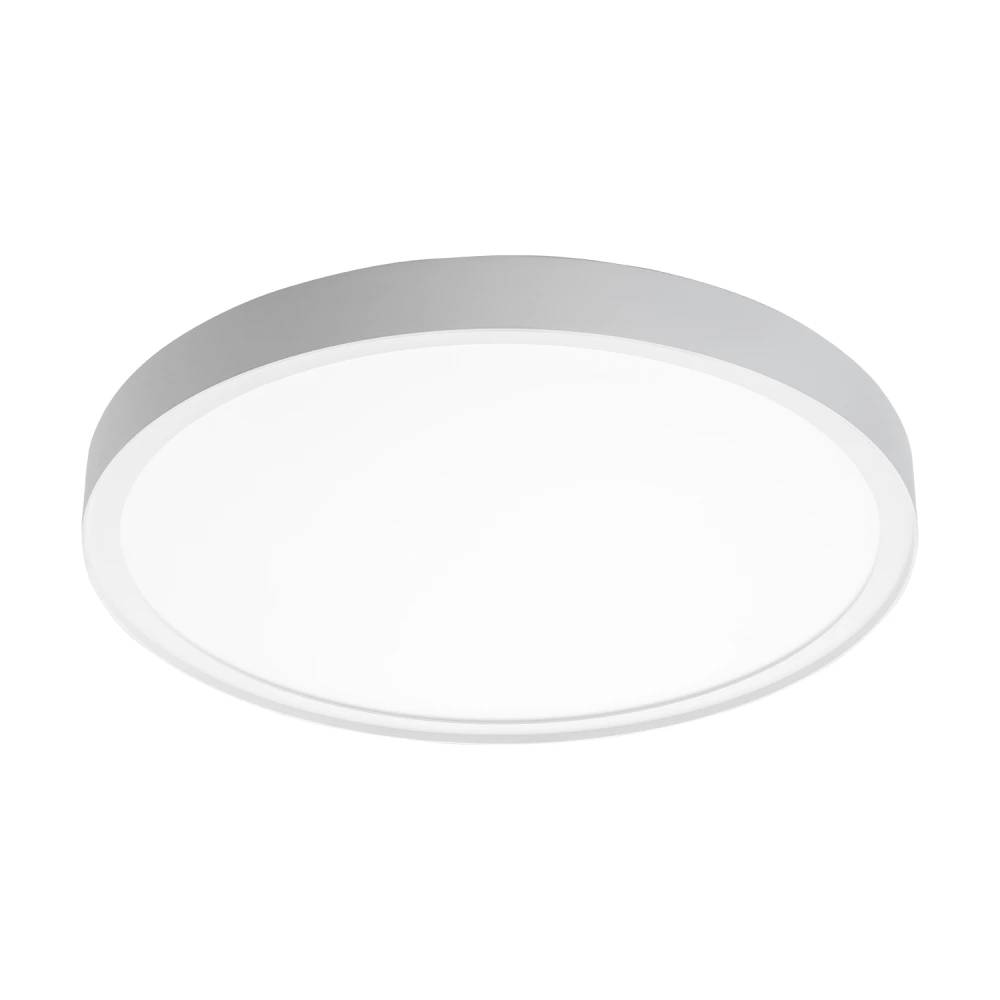

Disc 480 Direct/Indirect 34W 220-240V 4160/4420lm 3000/4000K IP20 White SG Armaturen

Description

Disc 480 Direct/Indirect is an energy-efficient surface-mounted ceiling luminaire with a slim profile. Opal prismatic diffuser provides glare-free and pleasant lighting with a decorative indirect light. Made of durable aluminum and polycarbonate. Easy installation with quick connection between luminaire and back plate that can be screwed directly onto the most common ceiling boxes. Using dip switches on the driver, the luminous flux can be changed.

Technical Information

• Nominal luminous flux: 4160/4420 lm
• Color temperature: 3000 - 4000 K
• Protection class (IP): IP20
• Impact resistance (IK): IK10
• Protection class (IEC 61140): II
• Suitable for VDU work (EN 12464-1): No
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Maintained luminous flux at average lifetime 50,000 hours (25 °C): 90%
• Bluetooth controlled: No
• No dimmer function: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Rear edge dimming (phasecut-off): Yes
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Dimmable: Yes
• Driver: LED driver (constant current)
• Driver included: Yes
• Energy efficiency class light source (EU 2019/2015): E
• Color of light adjustable: Modes
• Color fastness (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Flicker value Pst LM: 0.07
• Glow wire test (IEC 60695-2-11): None
• Installation width: 0 mm
• Installation diameter: 0 mm
• Installation height/depth: 0 mm
• Installation length: 0 mm
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Light flow adjustment: Modes
• Protection class (IP) rear: IP20
• Protection class (IP) front: IP20
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Suitable for built-in/recessed mounting: No
• Suitable for clamp mounting: No
• Suitable for lamp power: 34 - 34 W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: Yes
• Suitable for ramp mounting: Yes
• Suitable for ceiling mounting: Yes
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor cross-section: 2.5 mm²
• Light distributor/diffuser: Diffuser lens/optics/panel
• Light distribution: Symmetrical
• Light source: LED (not replaceable)
• Light distribution angle: 40-80° (wide beam)
• Luminous efficiency: 130 lm/W
• Luminous efficiency: 130 - 130 lm/W
• Light output: Direct/indirect
• Rated voltage: 220 - 240 V
• Rated current: 700 - 900 mA
• Maximum number of luminaires per B16 circuit breaker: 30
• Maximum number of luminaires per C16 circuit breaker: 51
• Maximum number of luminaires per C10 circuit breaker (MCB): 31
• Max. system power: 34 W
• With switch: No
• With light source: Yes
• With light sensor: No
• With air hole: No
• With mounting parts: Yes
• With presence detector: No
• With motion sensor: No
• With IFTTT support: No
• Emergency power supply system: None
• Emergency power monitoring system: None
• Nominal service life L70/B50 at 25 °C: 0 h
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Nominal luminous flux (IEC 62722-2-1): 4160 - 4420 lm
• Cover with insulation: No
• Grid design: None
• Voltage type: AC
• Strobe power valueSVM: 0.05
• Connection type: Push-in terminal (quick terminal)
• Type of wiring: Suitable for through wiring
• Unified Glare Ratio (UGR): 22
• Replaceable driver: No

Specifications

• Light color: White
• Colour housing/enclosure/frame: White
• Material housing/enclosure/frame: Aluminum
• Material Dome/Cover: Plastic (opal)
• Width: 467 mm
• Outer diameter: 467 mm
• Height/depth: 62 mm
