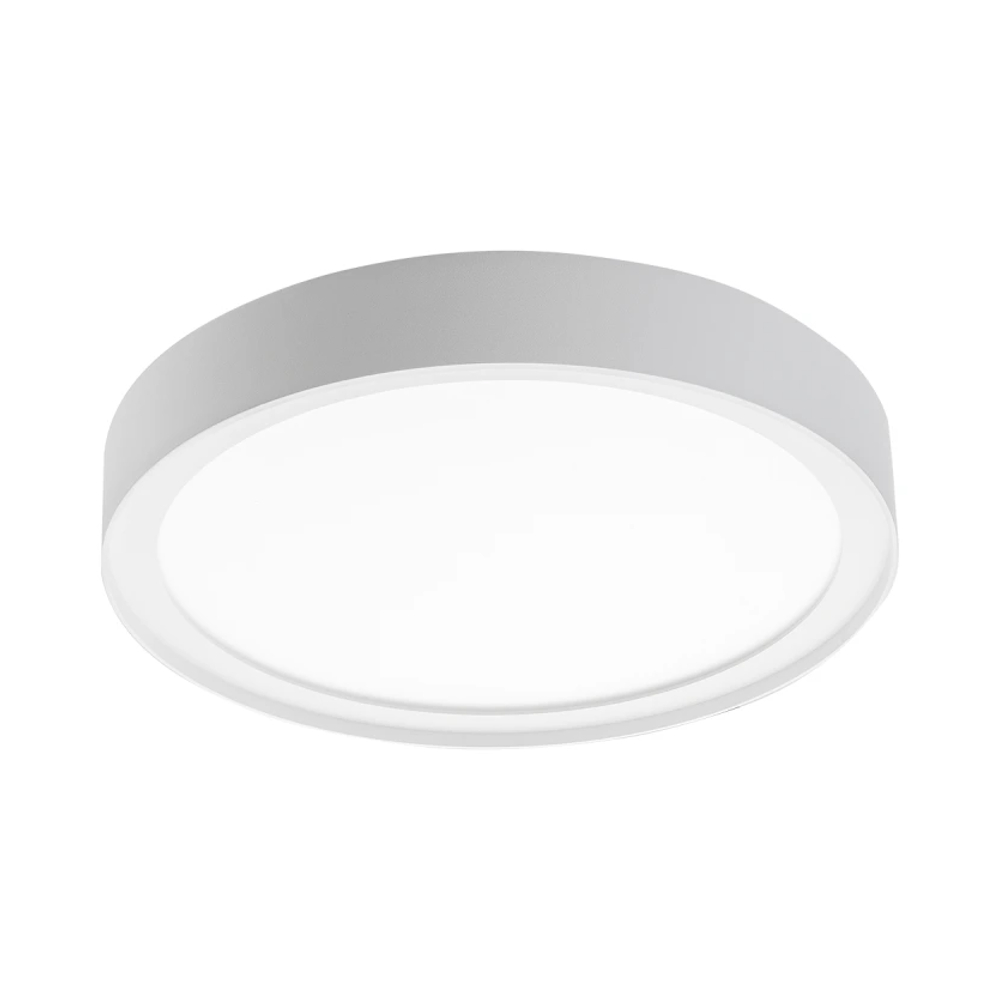

Disc 290 Direct/Indirect 18W 220-240V 1940lm 2700K IP20 White SG Armaturen

Description

Disc 290 Direct/Indirect is an energy-efficient surface-mounted ceiling luminaire with a slim profile. Opal prismatic diffuser provides glare-free and pleasant lighting with a decorative indirect light. Made of durable aluminum and polycarbonate. Easy installation with quick connection between luminaire and back plate that can be screwed directly onto the most common ceiling boxes. Using dip switches on the driver, the luminous flux can be changed.

Technical Information

• Color temperature: 2700 - 2700 K
• Impact resistance (IK): IK10
• Protection class (IEC 61140): II
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Maintained luminous flux at average lifetime 50,000 h (25 °C ambient): 90 %
• Bluetooth controlled: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): Yes
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• Dimmable: Yes
• Driver: LED driver (constant current)
• Driver included: Yes
• Energy efficiency class light source (EU 2019/2015): D
• Color of light adjustable: No
• Color constancy (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Flicker value Pst LM: 0.08
• Photobiological safety (EN 62471): Other
• Glow-wire test (IEC 60695-2-11): None
• Installation width: 0 mm
• Installation diameter: 0 mm
• Installation height/depth: 0 mm
• Installation length: 0 mm
• Adjustable light distribution: No
• Luminous flux adjustment: No
• Protection class (IP) rear: IP20
• Ingress protection (IP) front: IP20
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Lamp holder/socket: Other
• Suitable for built-in/recessed mounting: No
• Suitable for clamp mounting: No
• Suitable for lamp power: 18 - 18 W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: Yes
• Suitable for ramp mounting: Yes
• Suitable for ceiling mounting: Yes
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor cross-section: 2.5 mm²
• Light distributor/diffuser: Diffuser lens/optics/panel
• Light distribution: Symmetrical
• Light source: LED (not replaceable)
• Light distribution angle: 40-80° (wide beam)
• Luminous output: 108 - 108 lm/W
• Light output: Direct/indirect
• Rated voltage: 220 - 240 V
• Rated current: 200 - 450 mA
• Max. number of luminaires per circuit breaker B16: 30
• Max. number of luminaires per circuit breaker C16: 51
• Max. number of luminaires per circuit breaker C10 (MCB): 31
• Max. system power: 18 W
• With switch: No
• With light source: Yes
• With light sensor: No
• With air hole: No
• With mounting parts: Yes
• With presence detector: No
• With motion sensor: No
• With IFTTT support: No
• Emergency power supply system: None
• Emergency power monitoring system: None
• Nominal service life L70/B50 at 25 °C: 0 h
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Nominal luminous flux (IEC 62722-2-1): 1940 - 1940 lm
• Cover with insulation: No
• Rotate version: None
• Protection level (NEMA): Other
• Voltage type: AC
• Stroboscope power valueSVM: 0.03
• Connection type: Push-in terminal (quick terminal)
• Type of wiring: Suitable for through wiring
• Unified Glare Ratio (UGR): 22
• Replaceable driver: No
• Surface protection housing/enclosure/frame: Other

Specifications

• Light color: White
• Color housing/enclosure/frame: White
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Plastic (opal)
• Width: 290 mm
• Length: 290 mm
• Outer diameter: 290 mm
• Height/depth: 62 mm
