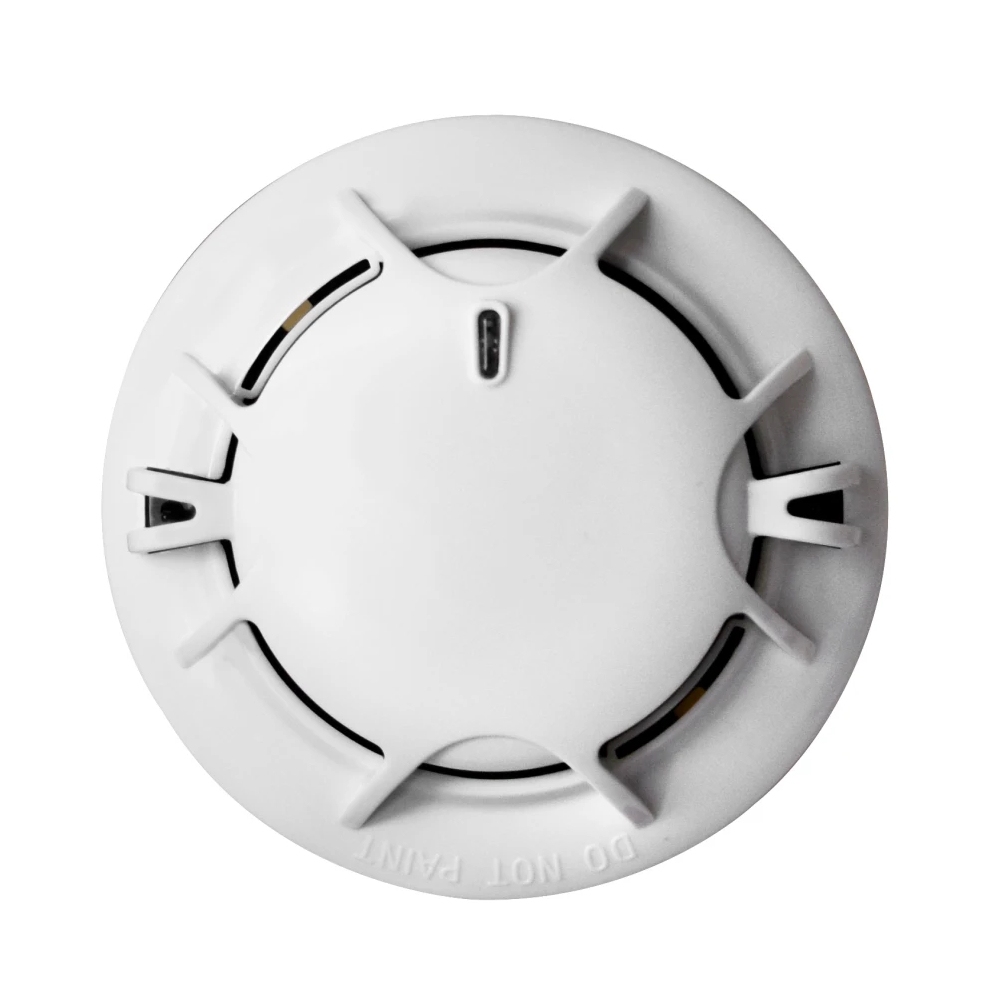

Conventional Multisensor Fire Detector Smoke/Heat 9.5-28VDC IP2X White Kidde Commercial

Conventional multisensor fire detector white, supports drift compensation to enable good environmental adaptation, self-diagnostics.

Conventional Multisensor Fire Detector Smoke/Heat 9.5-28VDC IP2X White Kidde Commercial

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

Conventional Multisensor Fire Detector Smoke/Heat 9.5-28VDC IP2X White Kidde Commercial

Conventional multisensor fire detector white, supports drift compensation to enable good environmental adaptation, self-diagnostics.

Description

Conventional multisensor fire detector white. Supports drift compensation to enable good environmental adaptation. Self-diagnostics. Local test activation with reed switch. Control of contamination in the detector chamber. LED visibility all around (360° viewing angle) eliminates the need to adjust the detector orientation.

Specifications

  • Status Indication: Red LED
  • User Interface: Via LED – polling, fault, contamination and alarm
  • Compatibility: GST100A Series conventional CIEs as well as GST I-9319 Zone Monitor
  • Reset Voltage: <1 VDC
  • Reset Time: <10 s
  • Alarm Levels: 2
  • Connection: Zone connection – 2-core (polarity sensitive), RI connection – 2-core (polarity sensitive)
  • Operating Voltage: 9.5 to 28 VDC (24 VDC typical)
  • Current Consumption:
  • <60 μA (Quiescent)
  • ≤55 mA (Alarm)
  • Cable Specification: >1.0 mm²
  • Number of Cable Cores: 2
  • Number of Cable Cores: 4
  • Detection Principle: Optical & Heat
  • Sensitivity: Programmable
  • Zone Length: Panel dependent
  • Remote Alarm Output: 1
  • Physical Dimensions (Including base x Diameter): 54.5 mm x 100 mm
  • Color: White (RAL 9016)
  • Mounting type: Ceiling mount
  • Material (body): ABS
  • Vandalproof: No
  • Operating temperature: -10 to +50°C
  • Relative humidity: 0 to 95% noncondensing
  • Environment: Indoor
  • IP rating: IP2X
  • Compliance: CE, WEEE
  • Certification: EN54-5, EN54-7
  • Voluntary marks: BOSEC
  • Standards: LPCB
  • ROHS: Yes
  • REACH: No
  • Food contact material: No
