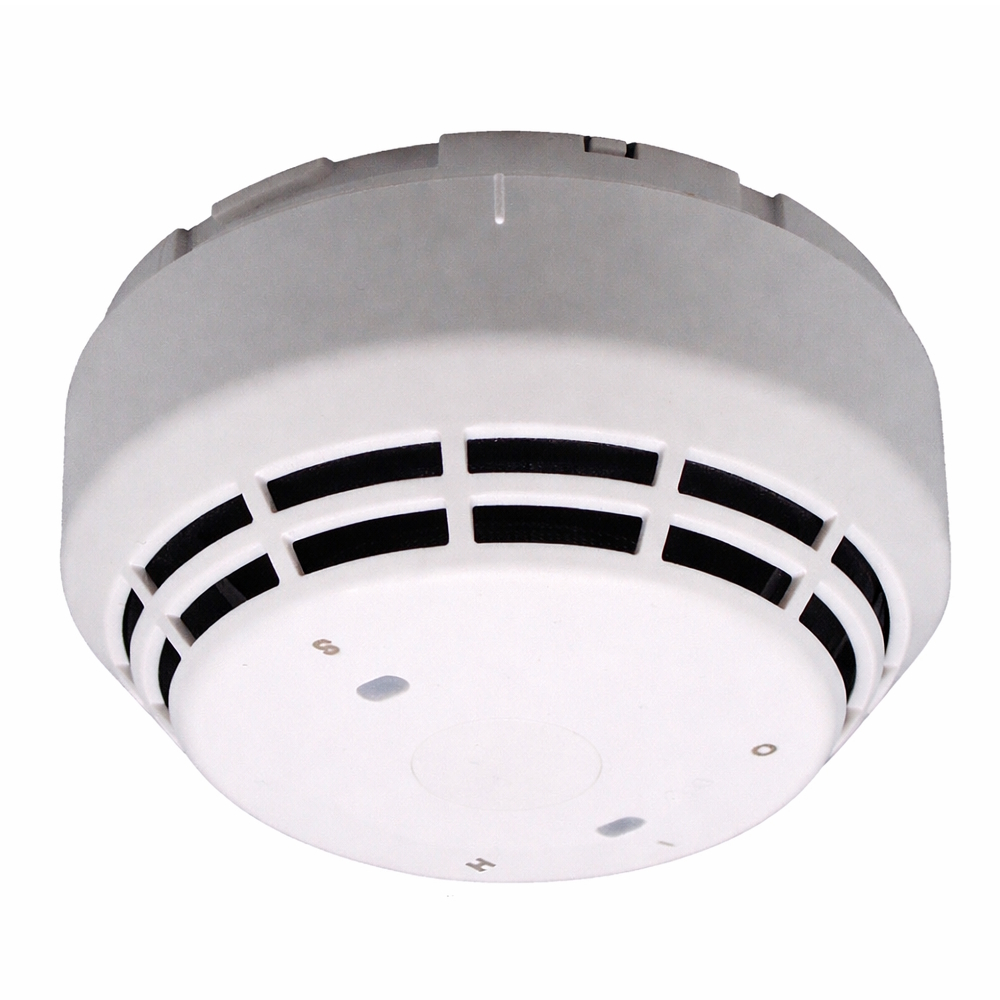

Combidet Smoke/Heat Detector Siren 17-29VDC IP21C Kidde Commercial

Description

DP3121W-SN is a Kidde Excellence Series, Smoke and Heat Detector with Siren. Signal White Addressable Dual Optical Detector with Isolator.

Specifications

• Status indication: Tri-colour LED
• Compatibility: Kidde Commercial Excellence Systems
• Alarm levels: 5
• Event log: Available
• Connection: Excellence series, standard base
• Addressing method: Rotary switch
• Power supply type: Slingdriven
• Operating voltage: 17 to 29 VDC
• Communication voltage: 4 to 11 V pulsed
• Current consumption:
• < 10.5 mA (alarm at 24 VDC – notification level dependant)
• 500 µA (quiescent at 24 VDC)
• Terminals: 6
• Detection principle: Optical light scatter, forward and backward / Heat
• Monitoring: Alarm threshold, Contamination level, Fault
• Sensitivity: Selectable
• Coverage area: < 112 m² (optical) / < 56.3 m² (heat)
• Particle sensitivity range: 0.1 to 0.25 dB/m ±20%
• Alarm temperature (max): +70°C
• Alarm temperature (minimum): +54°C
• Rise rate: Supported
• Installation height: < 10.5 m (optical) / < 7.5 m (heat)
• Output quantity: 1
• Output type and classification: Remote indicator
• Programmable: No
• Remote alarm output: <8 mA
• Type: Negative line break
• Number per loop: ≤128
• Isolation voltage: 14 to 15.5 VDC
• Reconnect voltage: 14 to 15.5 VDC
• Loop current: 5 mA (isolated)
• Switching current: 1.05 A (continuous) / 1.4 A (pulsed)
• Leakage current: <1 mA
• Series resistance: <0.08 Ω
• Impedance requirement: ≤32 devices between isolators
• Exemption: CE, REACH, RoHS 3, WEEE
• Certification: CPR
• Voluntary marks: BOSEC
• Standards: EN54-3, EN54-5, EN54-7, EN54-17, EN54-23
• ROHS: Yes
• REACH: No
• Food contact material: No
