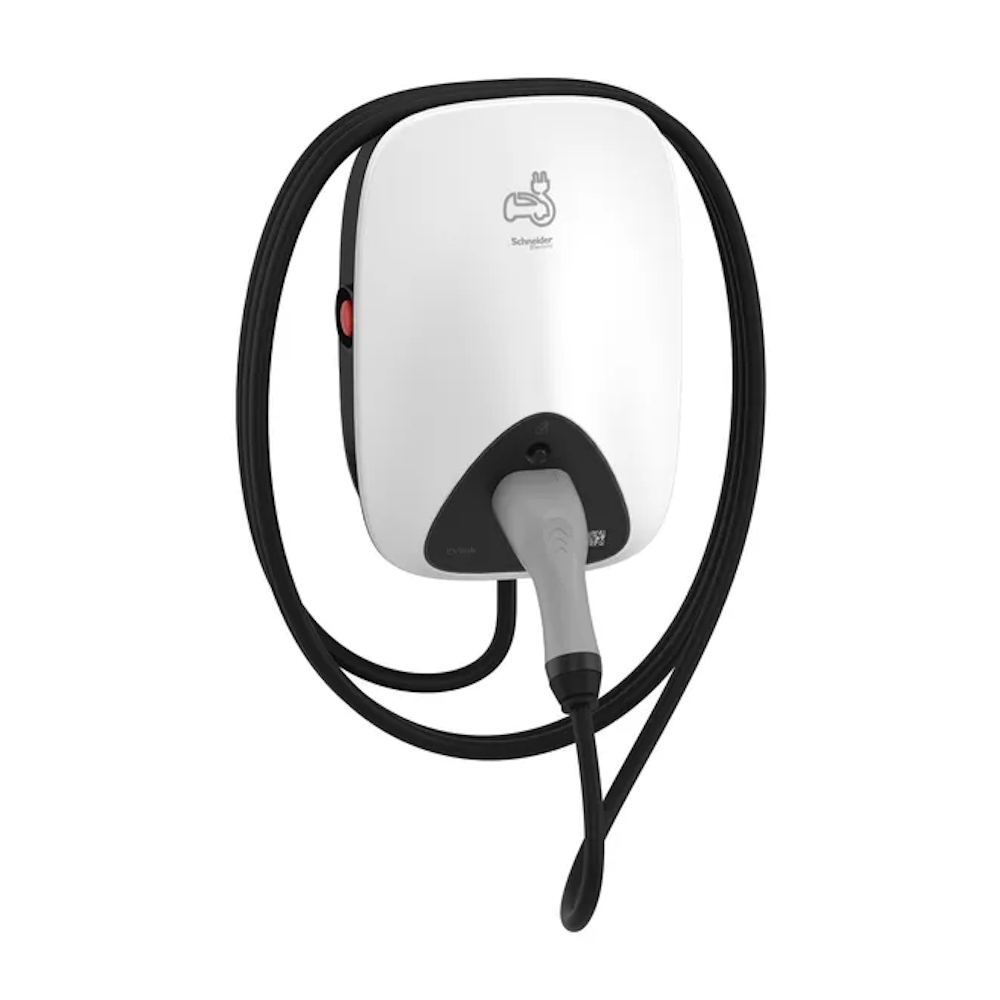

Charging Station 3Poles+N 11kW 16A 400VAC White Schneider Electric

Description

EVlink Home a simple, reliable and easy to install charging box for the home. the charging box can be easily connected with the EVlink Home Peak Controller to activate dynamic load balancing. Built-in DC fault monitoring. Certified according to latest IEC 61851-1 ed. 3 standard. It is supplied in three-phase (3P+N). The rated charging current is 16A under 230VAC with a 50Hz to 60Hz frequency. It can be used with a TN-S or TT earthing system. The charging station is easy to install (no special tools required). It is recommended for private use at home, installed in the garage for instance. It is fitted with a built-in protection against residual direct current (RDC-DD as Residual Direct Current Detecting Device). There is no access control to use the charging station for loading an electrical vehicle. A red push-button is present in case of emergency stop. One LED is changing color between red, green and blue in order to indicate the loading status directly on the charging station. By complementing the charging station with the anti-tripping system, it benefits from the dynamic energy management. This one allows to adjust in real time the maximum power allocated to the charging electric vehicle, according to the consumption of the rest of the loads in the house.

Technical Information

• Description Of Poles: 3P+N
• Mounting Type: Wall-Mounted
• Type: Basic
• Maximum Power: 11kW
• Nominal Supply Voltage: 400VAC 50Hz +/- 10%
• Maximum Supply Current: 16A
• IP Protection Class: IP55 according to EN/IEC 60529

Specification

• Color: White (RAL9003)
• Measure (WxHxD): 282x409x148mm
