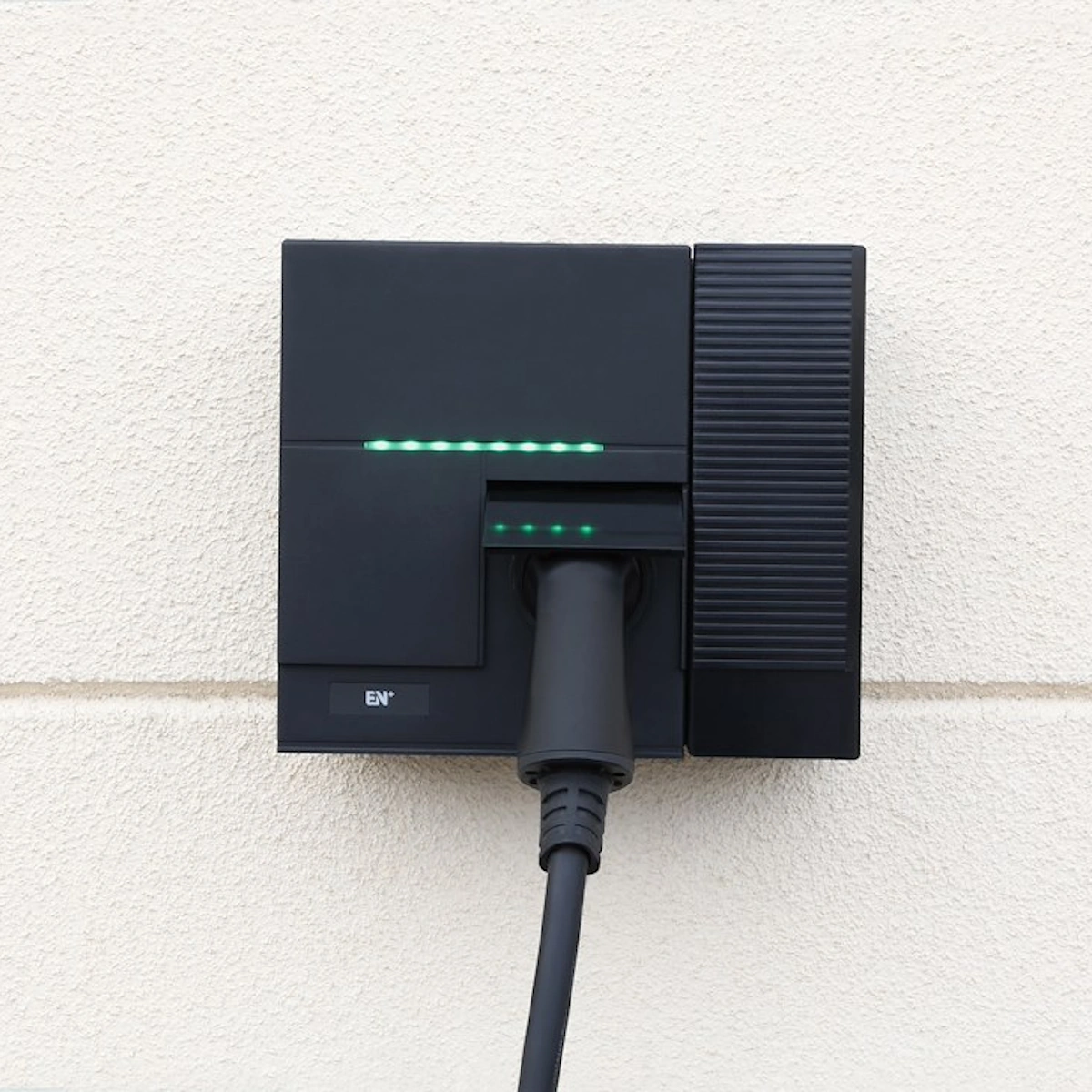

Charging Box Evon Pro 22kW 32A 400V 3P+N+Earth IP54 Socket Type-2 EN+ 2701235

Description

Optimize your electric car charging with Evon Pro, a powerful and compact 22kW charging box designed for the Nordic climate. Combines Evon Pro's stylish aesthetics with market-leading technology.

The benefits of Evon Pro

• Powerful performance: Delivers up to 22kW (32A) for fast and efficient charging of all electric cars and plug-in hybrids with Type 2 sockets.
• Built-in MID meter & LCD display: Follow your energy consumption in real time directly on the clear display - perfect for billing and full control.
• Highest safety: Equipped with mechanical personal protection switch Type A and built-in 6mA DC leakage protection (equivalent to Type B). Meets all Swedish safety requirements.
• Smart control via app: Manage charging easily through the EVCHARGO app. Start, stop and schedule your charging directly on your mobile phone.
• Future-proof (ISO 15118): The hardware is ready for tomorrow's technologies, including Vehicle-to-Grid (V2G) and Plug & Charge (PnC).

Areas of application & Installation

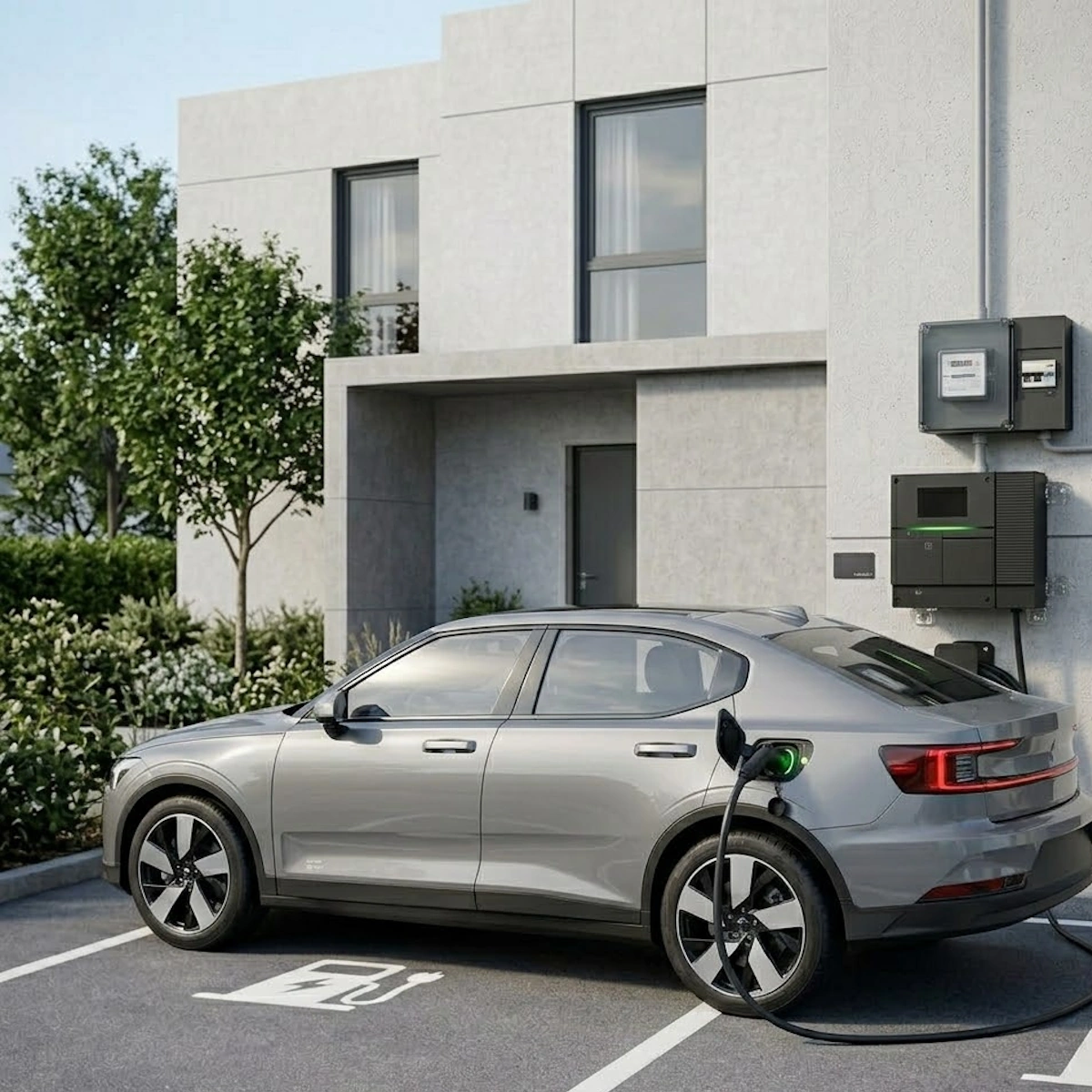

Evon Pro is extremely flexible and can be mounted directly on a wall or pole using a charging box holder (optional). Thanks to the built-in SIM card, installation is easy even in places where WiFi coverage is limited.

Tip: Complete with load balancing as an accessory to protect the property's main fuse and maximize charging speed when other electricity consumption is low.

Specifications

• Connection: Terminal
• Number of phases: 3-phase alt. 1-phase
• Humidity range: 5-95%
• Certificate: CE (Tested by TÜV Rheinland)
• DC leakage protection: 6mA
• Energy measurement: Yes (via app)
• Frequency: 50/60Hz
• Functions: Overcurrent protection, Earth fault protection, Over/undervoltage protection, Over/underfrequency protection, Overheating protection
• Installation: Wall or pole mounting
• Earthing system: TN, IT, TT
• Protection class: IP54
• Communication: WiFi / Ethernet / Bluetooth / 4G
• Connector: Type 2
• LED indicator light: Green/Yellow/Red
• Max. power: 22kW
• Max. rated current: 32A
• Rated voltage: 400V AC
• Personal protection switch: 40A 30mA Type A
• Terminal capacity: Max. 10 mm²
• Protocol: OCPP 1.6 Json/OCPP 2.0.1 Json (Upgradeable)
• RFID: Mifare ISO/IEC 14443A
• Impact resistance: IK10 (Display IK08)
• Standards: EN IEC 61851-1:2019, EN IEC 61851-21-2:2021, IEC 62955:2018, IEC 62196
• Start mode: RFID tag (4 pcs) / APP / Direct charging
• Power supply: 3P+N+Ground
• Support for load balancing: Yes
• Temperature range: -30°C - +50°C
• Design: Socket
• Output voltage: 400V AC
• Color: Black
• Material: PC (polycarbonate)
• Dimensions (WxHxD): 298x262x135 mm
• Warranty: 5 years
