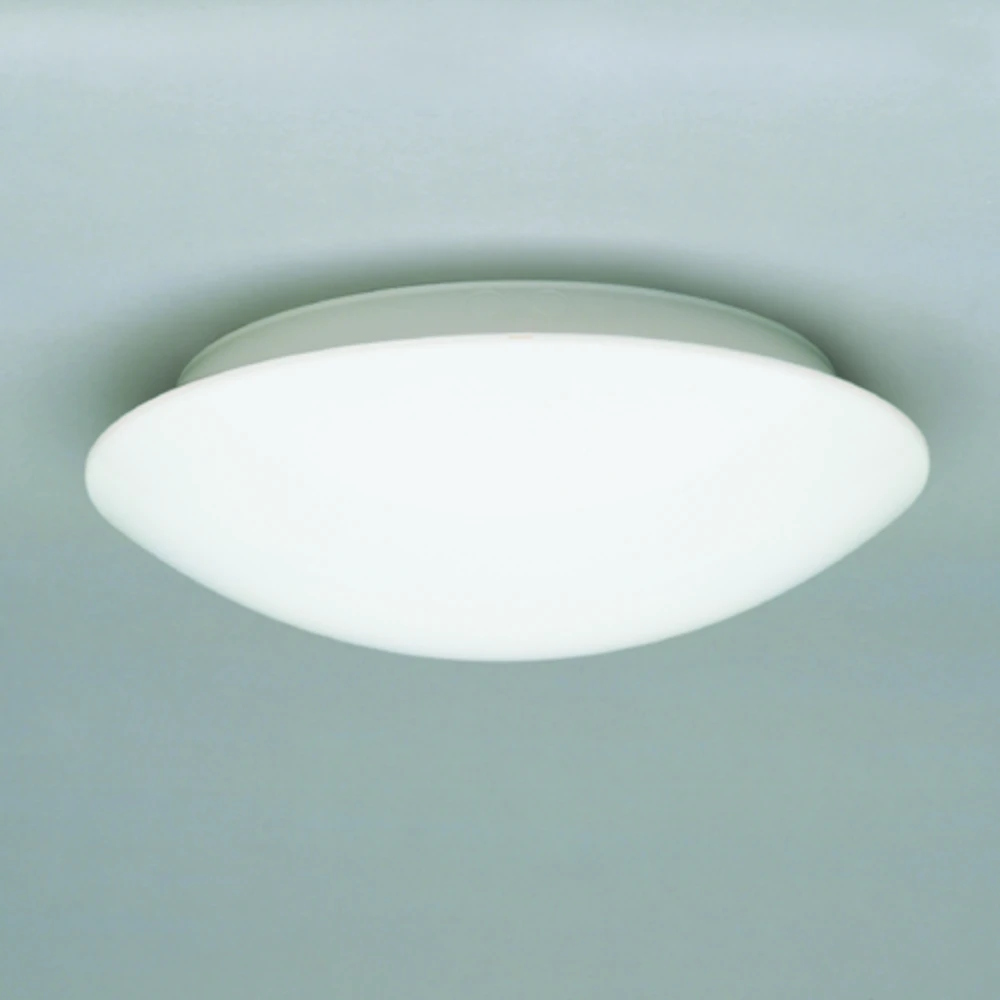

Ceiling/Wall Luminaire E27 100W 230V IP44 White Legrand

Description

Body and cover in impact-resistant polycarbonate (AVR254 cover in acrylic). Both for recessed and surface-mounted installation. Several decorative frames as accessories.

PIR Motion detector

The light turns on automatically when someone comes within the detector area and turns off after a set time, when movement is no longer detected. Detection area: 360º, approx. 7m diameter at 2.5m height. Temperature range -5º to +40ºC, Adjustable operating time 330 minutes. Adjustable twilight relay 1- lux. Can also control other luminaires max 400VA fluorescent lamp load or 1000W incandescent light.

Mounting

For mounting in the ceiling, against the wall or above a ceiling box. Mounting details for recessed mounting are included as standard. AVR320: the center disc is removable and can be attached to the installation site before the luminaire body itself is bayoneted onto it. AVR 400: rotatable transparent base plate.

Connection

The luminaire is equipped with a five-pole plug-in terminal block 5x2.5. Knockout openings on the sides and two membrane-equipped openings in the bottom. AVR320 is also available for order with NET connection (NAC31.W) on the side of the luminaire housing, note! IP20.

Light sources

• IAA,GLS, 100W, E27 base
• FBT, 23W, E27 base (TC-DSE)
• FSD, TC 9W, G23 base
• FSD-E, TC-SEL 9W, 2G7 base
• FSQ, TC-DEL 18W, G24q-2 base
• FSQ, TC-D 26W, G24d-3 base
• FSD, TC-L 18W, 2G11 base
• Including light sources, except E27 base.

Insulation class

• AVR254: Class II
• AVR320/AVR400: Class I, (7533700 Class II)

Enclosure class

• AVR254: IP54
• AVR320/AVR400: IP44

Technical Information

• Nominal luminous flux: 0 lm
• Color temperature: 0 - 0 K
• Type of light control: Not dimmable
• Enclosure class (IP): IP44
• Impact resistance (IK): IK06
• Protection class (IEC 61140): I
• Suitable for VDU work (EN 12464-1): No
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• No dimmer function: Yes
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): No
• Dimming depending on driver: No
• DALI dimming: No
• DIMming DMX: No
• DSI dimming: No
• Front edge dimming (phasecut-on): No
• GPRS dimming: No
• LineSwitch dimming: No
• Touch dimming: No
• Push button dimming: No
• Mains voltage modulation dimming: No
• Potentiometer dimming (integrated): No
• Programmable dimming: No
• RF dimming: No
• Light source power multiwatt: Not applicable
• Filament tested according to IEC 60695-2-10: None
• Integrated emergency lighting unit: No
• Coupling: Parallel compensated
• Lamp holder/socket: E27
• Suitable for built-in/recessed mounting: Yes
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp mounting: No
• Suitable for ceiling mounting: Yes
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Light distribution: Symmetrical
• Light source: Incandescent bulb universal
• Light distribution angle: Open beam
• Light socket: Direct
• Rated voltage: 230 - 230V
• With light source: No
• With light sensor: No
• With air hole: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer specific: No
• Dimming Zigbee: No
• Dimmable: No
• Driver: Not required
• Driver included: No
• Light source power: 100W
• With motion sensor: No
• Ambient temperature: -20 - 25 °C
• Cover with insulation: Yes
• Grid design: None
• Reflector: None
• Voltage type: AC

Specifications

• Surface type: Matt
• Color housing/enclosure/frame: White
• Material housing/enclosure/frame: Plastic
• Material dome/cover: Plastic (opal)
• Food Contact Material: No
• REACH: No
• ROHS: Yes
• Installation diameter: 390mm
• Installation height/depth: 42mm
• Length: 400mm
• Height/depth: 122mm
• Width: 400mm
