Ceiling Bracket KT Double 502 3-500kg Helaform

Description

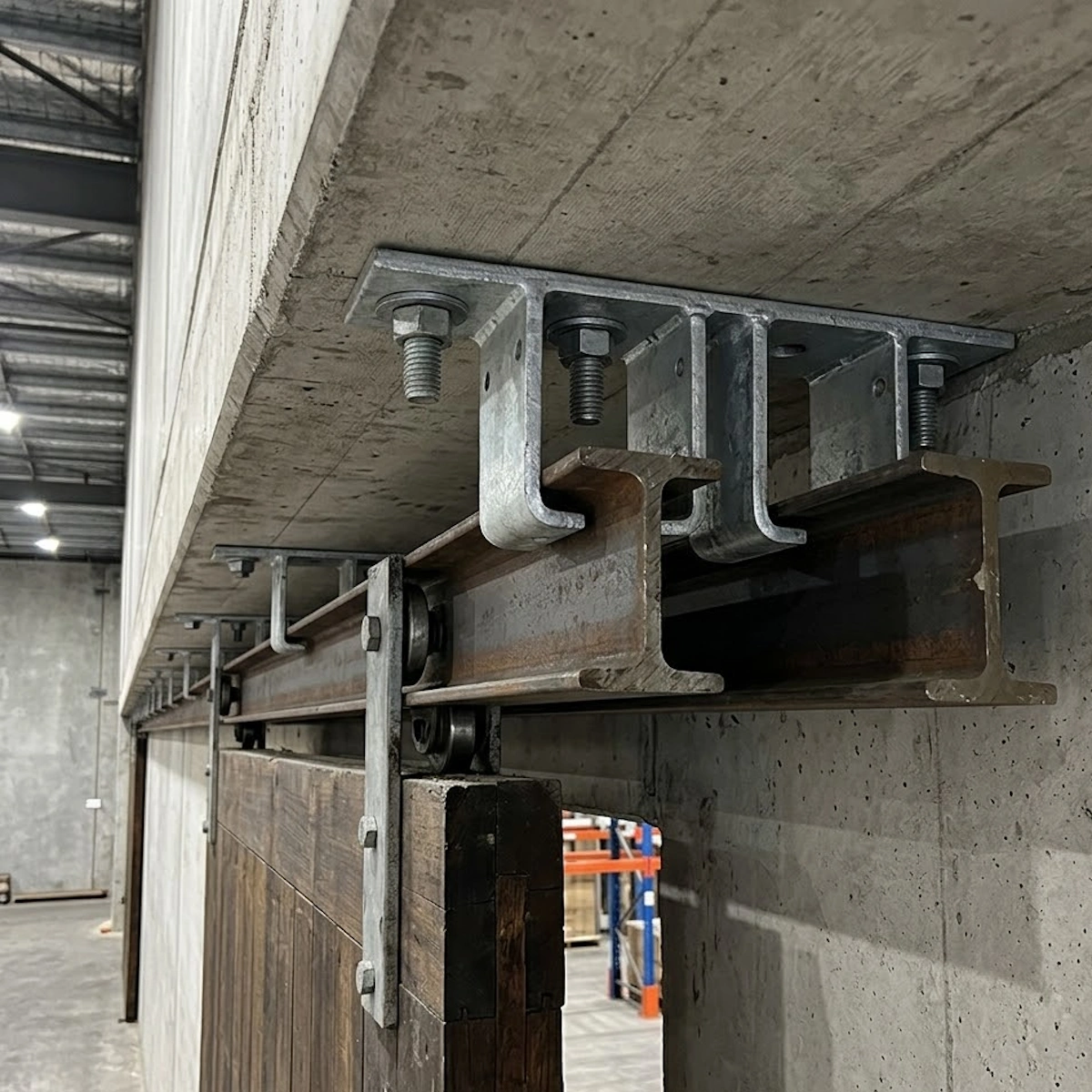

Ceiling bracket KT Double 502 is a powerful fitting from Helaform, especially designed to carry double rails in heavy sliding door applications. This robust double bracket is part of the high-performance 300 and 500 series, making it ideal for industrial environments, heavy sliding doors and folding doors weighing up to 500kg. By using a double ceiling bracket, you can mount two parallel rails on the ceiling, which is the perfect solution for wrap-around doors or complex wall sections. The bracket is equipped with mounting ears for a safe and stable installation. Whether you are planning an installation for a warehouse or a heavy industrial door, this ceiling bracket ensures that your track system sits firmly under high loads.

Specifications

• Material: Galvanized steel for high corrosion resistance and long service life.
• Installation: Ceiling mounting for double rows of tracks.
• Features: Equipped with mounting ears that facilitate screw mounting directly into the ceiling structure.
• Stability: Designed to maintain the shape and position of the track even with frequent use of heavy door leaves.

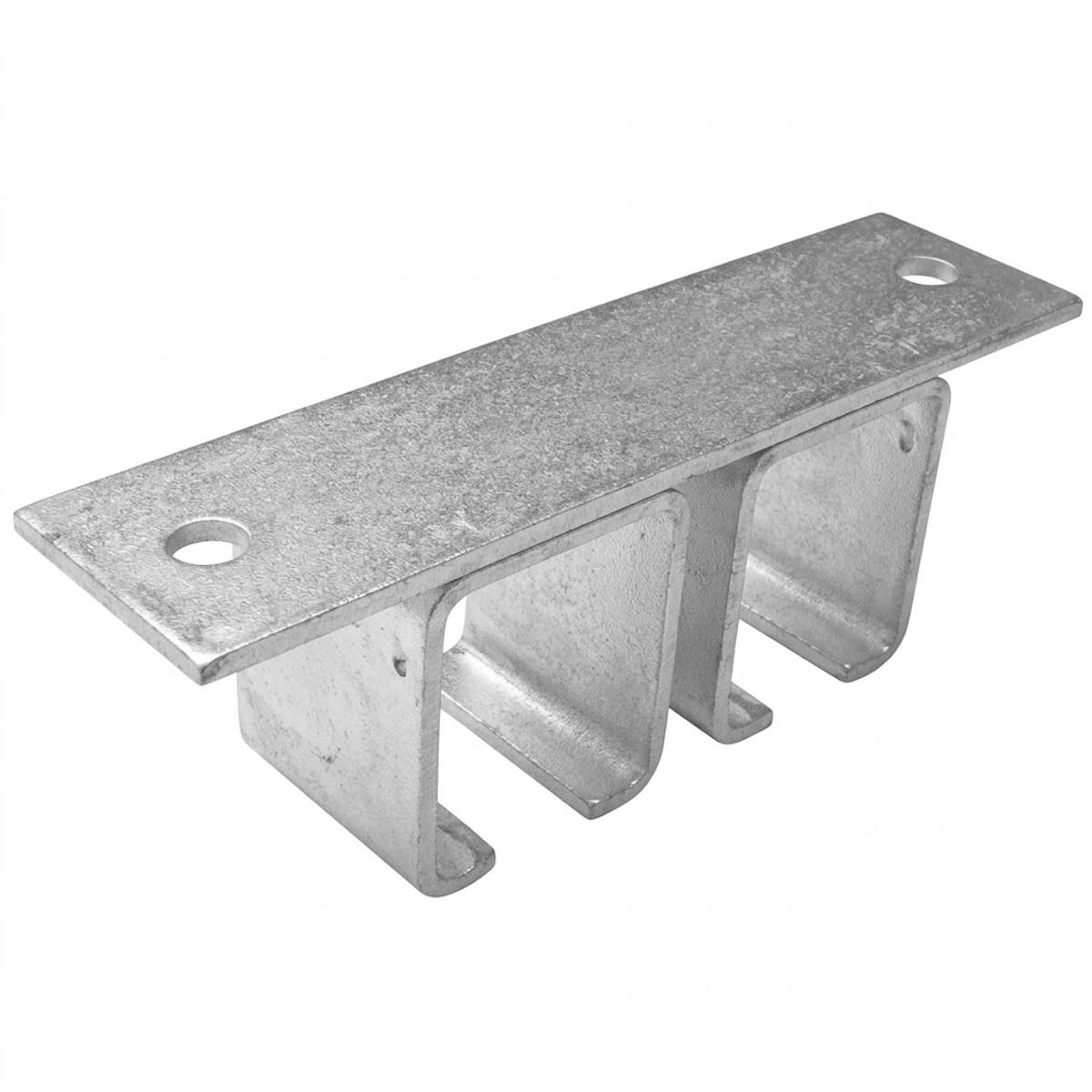

• Type: Double ceiling bracket with mounting ears
• Compatibility: Fits Helaform Series 300 and Series 500
• Maximum load: 300–500 kg (depending on the selected series and track)
• Area of application: Indoors and outdoors for heavy sliding doors, folding doors and conveyor belts.
