Ceiling box Single/Double IP3X Blue ABB

Description

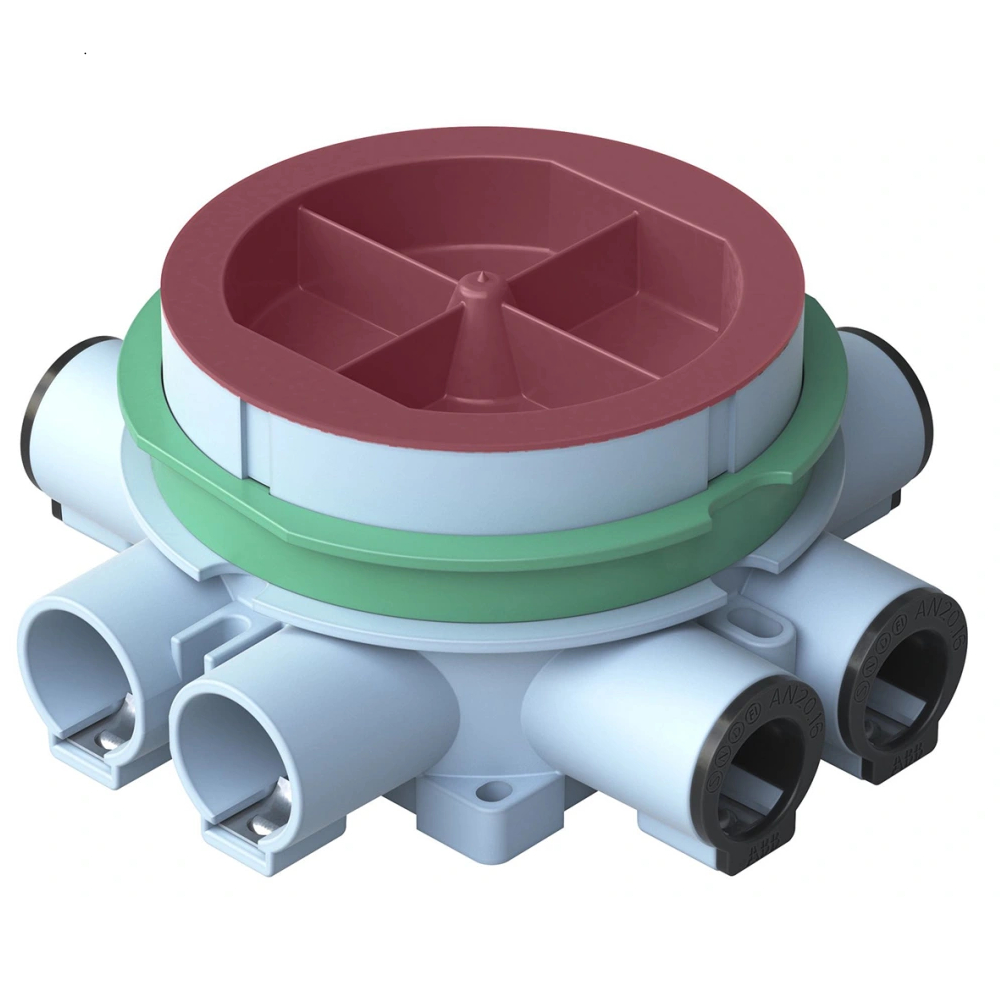

Ceiling box for single and double plasterboard. Screw distance cc70mm With 8 fixed connectors 20mm. 6 have reducing connectors to 16mm. The ceiling box has two screw posts for M4 screws with a screw distance cc70mm. The supplied green spacer ring is used for single-panel (13mm). The ring is removed when the box is mounted in a ceiling with double-panel (26mm). The box has 8 fixed connectors for 16/20mm pipes. 6 of these are equipped with reducers to 16mm. In addition, there are two cutouts in the bottom of the box. Suitable bottom connectors 6410011527146, 6410011527184, 6410011527214. Made of halogen-free material (IEC/61249-2-21) and meets the requirements of the glow wire test according to standard IEC/EN60670:2005 (850°C). The box's cleaning lid is made from recycled plastic.

Technical Information

• Mounting method: Flush mounting
• Protection class (IP): IP3X
• Depth: 120 - 120 mm
• Number of inlets: 8
• Number of supplied bushings: 8
• Number of poles in the terminal: 0
• Device attachment: Screwing
• Width: 120 mm
• Diameter: 92 mm
• Depth (inner dimensions): 53 mm
• Electrical functionality (Circuit integrity) in case of fire: None
• For number of device inserts: 1
• For pipe diameter: 16 mm
• Halogen-free: Yes
• Inlet from the rear; Yes
• Enclosure bushing via stud, optional: Yes
• Length: 120 mm
• Suitable for wall/panel thickness: 12 - 24 mm
• Max. conductor area: 2.5 mm²
• Special application: None
• Equipped with: None
• Surface treatment: Untreated
• Lid/cover design: Construction protection cover/cover

Specification

• Colour: Blue
• Shape: Round
• Model/Version: Single
• Lid/cover attachment: Snap-on
• Construction type: Other
• Material: Plastic
• Lid: Non-transparent
• Tube locking: Yes
• Stud/Nozzle: None
• ROHS: Yes
