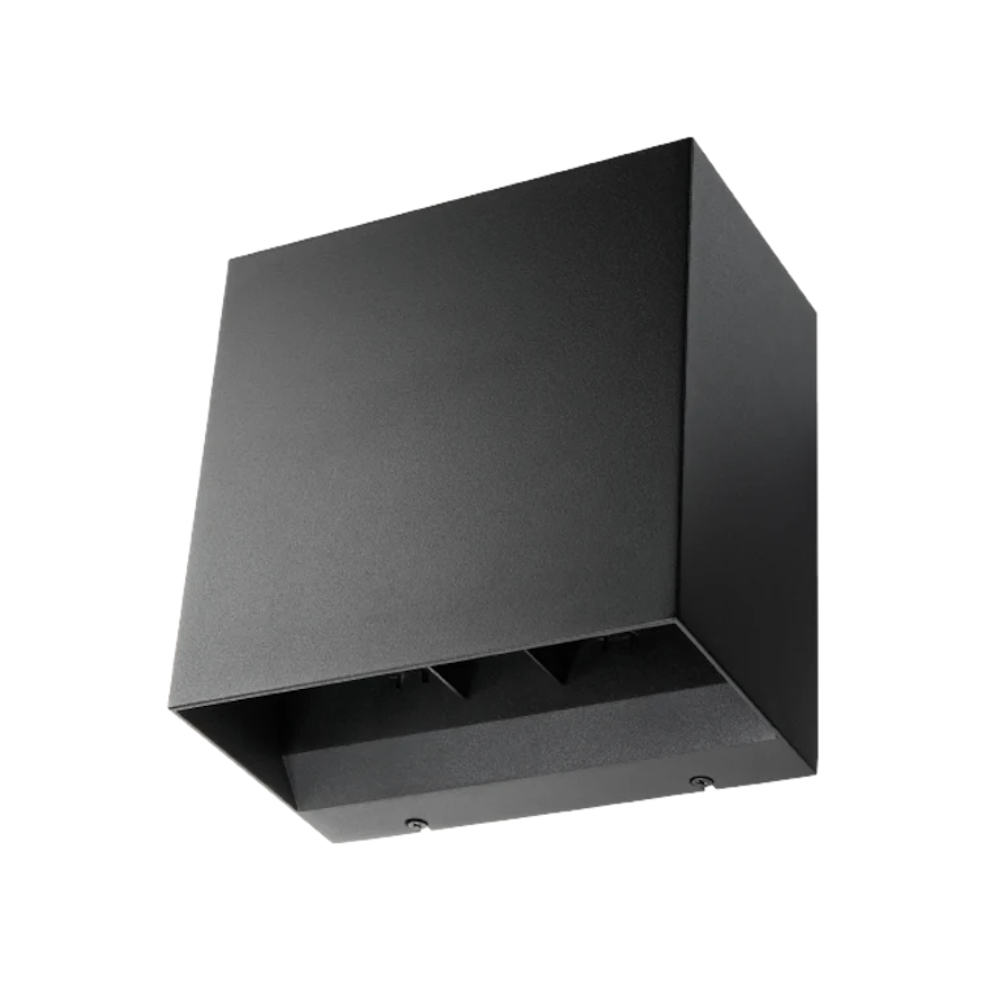

Armat Artes Midi 32W 230V 1100lm 4000K IP65 Black SG Armaturen

Description

Artes Midi is a stylish and decorative luminaire for both exterior and interior. Made of die-cast, powder-coated aluminum and dimmable with trailing edge dimmer. Easy installation with mounting back plate, quick terminals and two cable entries. Possibility of individual, stepwise adjustment of the light distribution up and down. The up and down light works so that you can turn them off individually if you wish.

Technical Information

• Color temperature: 4000 K
• Nominal luminous flux: 1100 lm
• Protection class (IEC 61140): II
• Impact resistance (IK): IK10
• Light distribution: Symmetrical
• Adapted for VDU work (EN 12464-1): No
• Number of poles: 3
• Luminaire with limited surface temperature "D" (EN 60598-2-24): No
• Bluetooth controlled: No
• No dimmer function: No
• Dimming 0-10 V: No
• Dimming 1-10 V: No
• Dimming trailing edge (phasecut-off): Yes
• Dimming depending on driver: Yes
• Dimming DALI: No
• Dimming DALI-2: No
• Dimming DMX: No
• Dimming DSI: No
• Dimming leading edge (phasecut-on): No
• Dimming GPRS: No
• Dimming LineSwitch: No
• Dimming with touch: No
• Dimming with push button: No
• Dimming mains voltage modulation: No
• Dimming potentiometer (integrated): No
• Dimming programmable: No
• Dimming RF: No
• Dimming sine wave (Sine Wave Reduction): No
• Dimming manufacturer-specific: No
• Dimming Zigbee: No
• DoC (CE): Yes
• Driver: Not required
• Driver included: No
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Energy efficiency class supplied replacement lamps: A+
• Color of light adjustable: No
• Color constancy (McAdam ellipse): SDCM3
• Color rendering index (CRI/Ra): 80-89
• Flicker value Pst LM: 0.07
• Highest energy efficiency class for replacement lamps: A+
• Installation width: 0 mm
• Installation diameter: 0 mm
• Installation height/depth: 0 mm
• Installation length: 0 mm
• Integrated emergency power supply: No
• Adjustable light distribution: No
• Adjustable luminous flux: No
• Protection class (IP): IP65
• Compatible with Amazon Alexa: No
• Compatible with Apple HomeKit: No
• Compatible with Casambi: No
• Compatible with Google Assistant: No
• Minimum energy efficiency class for replacement lamps: A+
• Suitable for built-in/recessed mounting: No
• Suitable for clamp mounting: No
• Suitable for lamp power: 32 W
• Suitable for emergency lighting: No
• Suitable for pendant suspension: No
• Suitable for ramp mounting: No
• Suitable for ceiling mounting: No
• Suitable for surface mounting: Yes
• Suitable for wall mounting: Yes
• Suitable for wall mounting: Yes
• Suitable number of light sources: 1
• Conductor cross-section: 2.5 mm²
• Light source: LED (not replaceable)
• Light distribution angle: 40-80° (wide beam)
• Luminous output: 34 lm/W
• Light output: Indirect
• Rated voltage: 230 V
• Rated current: 500 - 800 mA
• Maximum number of luminaires per circuit breaker B16: 41
• Maximum number of luminaires per circuit breaker C16: 41
• Max. system power: 32 W
• With switch: No
• With light source: Yes
• With light sensor: No
• With air hole: No
• With mounting parts: Yes
• With presence detector: No
• With motion sensor: No
• With IFTTT support: No
• Emergency power supply system: None
• Emergency power monitoring system: None
• Nominal service life L70/B50 at 25 °C: 0 h
• Nominal service life L80/B10 at 25 °C: 0 h
• Nominal service life L90/B10 at 25 °C: 0 h
• Nominal service life L90/B50 at 25 °C: 0 h
• Nominal service life L70/B10 at 25 °C: 100000 h
• Nominal service life L80/B50 at 25 °C: 80000 h
• Nominal ambient temperature according to IEC 62722-2-1: 25 - 25 °C
• Nominal luminous flux (IEC 62722-2-1): 1100 lm
• Insulation cover: No
• Voltage type: AC
• Strobe power value SVM: 0.07
• Connection type: Push-in terminal (quick terminal)
• Type of wiring: Suitable for through-wiring
• Replaceable driver: No
• Outer diameter: 0 mm

Specifications

• Light color: White
• Color housing/enclosure/frame: Black
• Rotate finish: Matt
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Plastic (transparent)
• Width: 205 mm
• Height/depth: 205 mm
• Length: 125 mm
