Ajax Transmitter For Third Party Detector

Description

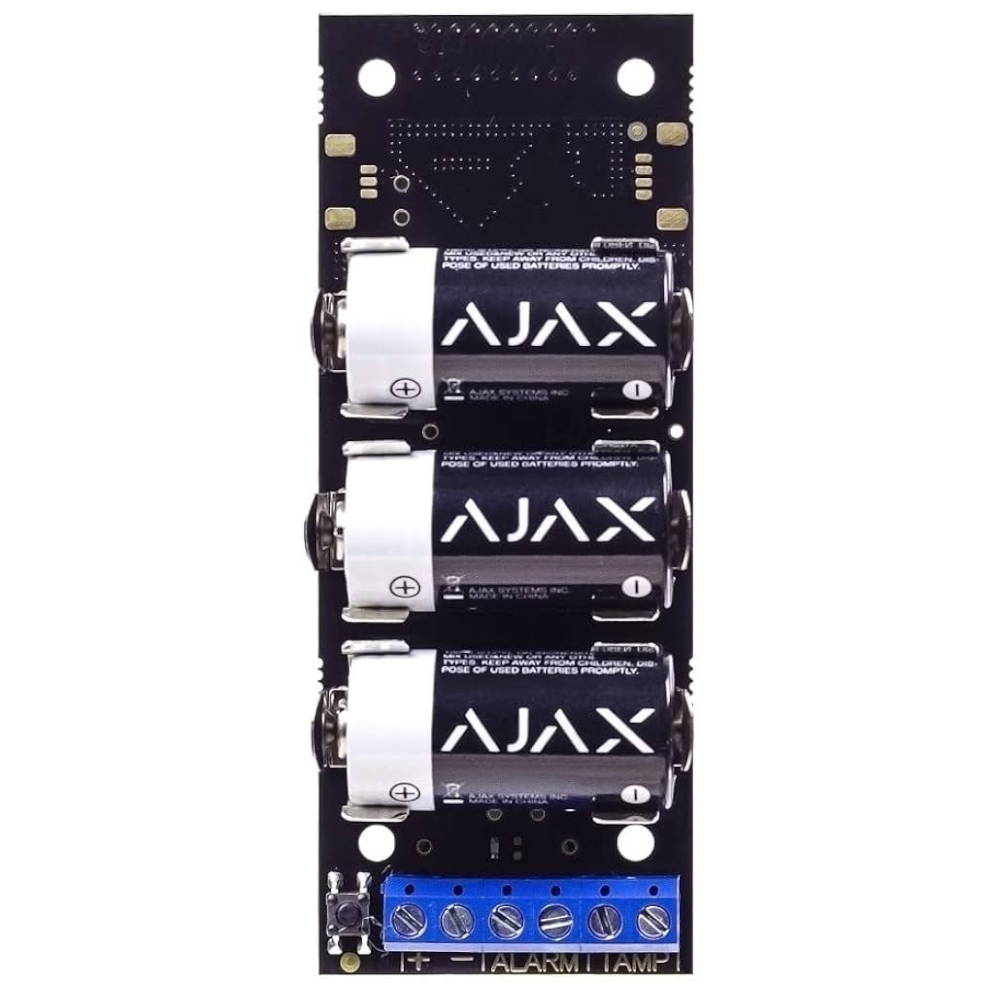

Wireless transmitter/integration module that allows you to connect an external wired detector or device (e.g. motion sensor, gas detector, panic button, fire detector or other NC/NO contact equipment) to an Ajax security system. When the external detector is activated, the Transmitter receives the signal via cable and sends an alarm to the Ajax hub via encrypted Jeweller radio. It also has built-in accelerometer protection that detects tampering or removal.

Specifications

• Type: Wireless integration module / transmitter for third-party detectors
• Application: Indoor/Built-in detector housing or tight enclosure
• Compatibility: All Ajax hubs and repeaters (ReX and ReX 2) with the correct firmware
• Not compatible with: uartBridge or ocBridge Plus
• Connects wired NC/NO detectors to the Ajax system
• Alarm and tamper signal: received via separate terminals and sent wirelessly to the hub
• Can be used for various types of sensors: intrusion, fire, gas, leakage, panic button, etc.
• Accelerometer: detects tampering/attempt to remove the device
• Radio protocol: Jeweller - encrypted wireless communication
• Radio communication range: up to ~1,600 m in open area (without obstacles)
• RF output power: approx. 20 mW (varies by region)
• Frequency band (depending on region): e.g. 868 MHz-868.6 MHz
• Power supply: 3 × CR123A batteries (3 V) – pre-installed
• Battery life: Up to approx. 5 years depending on use
• Power output: 3.3 V DC output to power the external detector
• Operating temperature: –25 °C to +50 °C
• Operating humidity: up to 75%
• Dimensions: approx. 100 × 39 × 22 mm
• Terminals for: ALARM (alarm contact), TAMPER (tamper signal), + / – (power supply to external detector)
