Ajax 12-24V PSU For Hub 2/Hub 2 Plus

Description

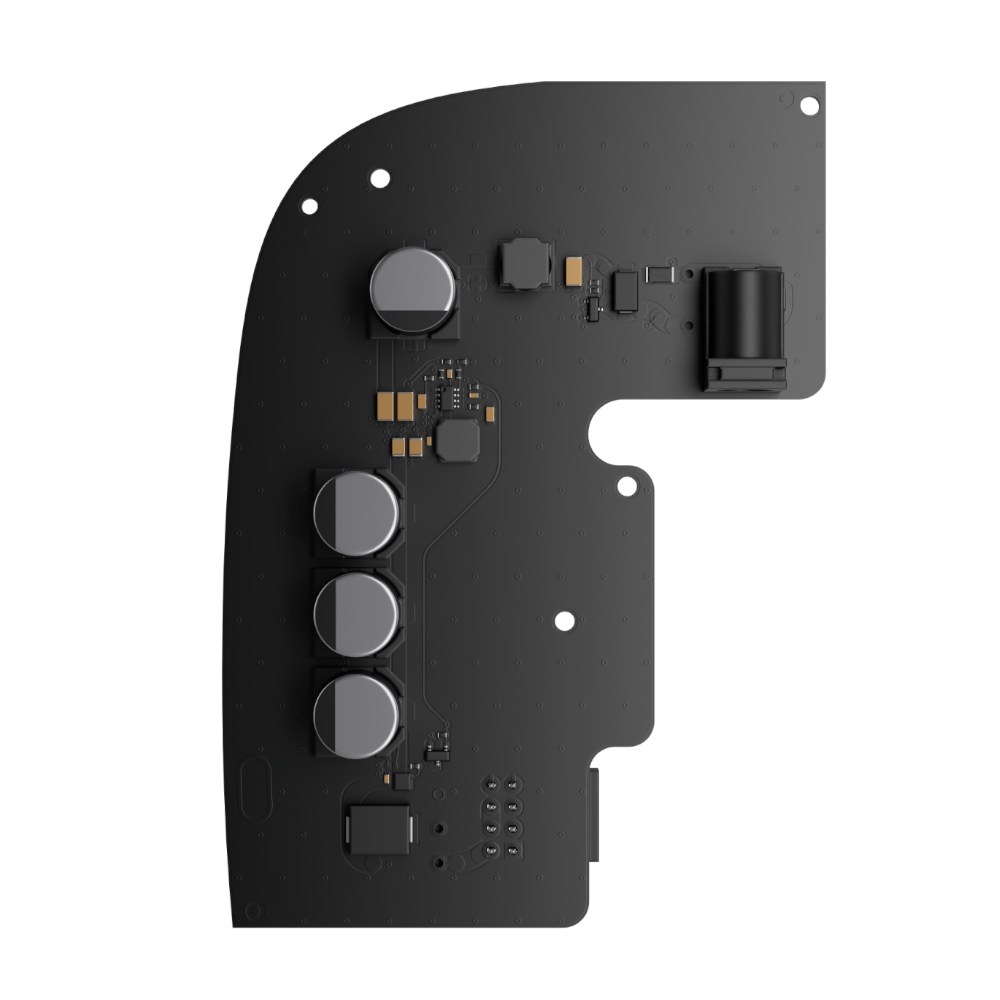

The Ajax 12-24V PSU for Hub 2/Hub 2 Plus (Alternative Power Supply Unit) is a replacement power supply module that installs inside the Ajax hub in place of the standard 110-230V power supply. It allows you to connect your Ajax Hub 2, Hub 2 Plus or ReX 2 range extender to a low voltage source (e.g. 12V-24V DC) - perfect when you lack a regular AC power supply, want to use a portable battery, or want to power the system from a vehicle or solar power source. The unit comes with a terminal adapter and power connection connectors and is easy to install according to the manual.

Specifications

• Compatibility: Ajax Hub 2 (both 2G and 4G variants), Hub 2 Plus and ReX 2 radio extender
• Input voltage: 8–32 V DC
• Start voltage: approx. 8 V DC ± 2.5%
• Stop voltage: approx. 7–7.5 V DC (depending on load)
• Input current: up to approx. 1 A
• Output voltage: approx. 4.8 V DC ± 5%
• Output current: up to approx. 1.5 A
• Power socket: 6.5 × 2 mm (female)
• Power connector: 5.5 × 2.1 mm (male)
• Mounting: Installed inside the hub or range extender housing to replace the standard PSU
• Operating temperature: approx. –10 °C to +40 °C
• Operating humidity: up to approx. 75%
• Dimensions: approx. 98 × 70 × 17 mm
